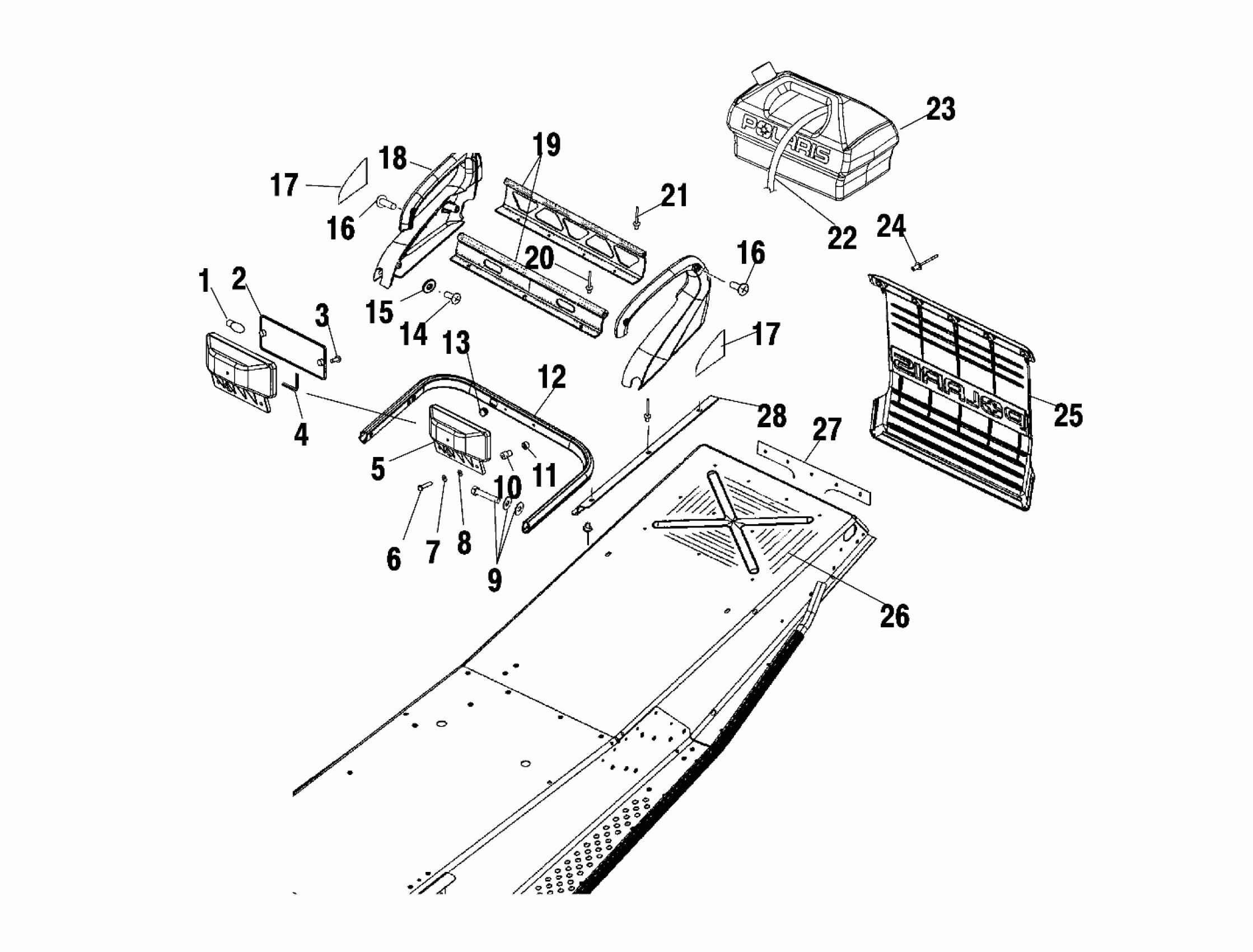

Polaris 800 RMK F/O 156 - S02NM8CS CHASSIS - S02NM8CS (4970657065A04) Diagram

#

Description
Price

1

Bulb, Taillight

4030043

$6.46

2

Lens

4032014

$36.41

3

Screw

7518019

$2.63

4

Gasket, Lens

4032015

Unavailable

5

Asm., Taillight [Incl. 1-4]

2410271

$90.48

6

SCREW

7515140

$3.19

7

Washer, Lock

7552605

$5.27

8

Washer

7556033

$4.79

9

Washer, Flat

7558301

$1.49

9

WASHER, SPRING LOCK

7552801

$1.59

9

Screw

7512113

$3.99

10

Mount, Rubber

3021186

$11.99

11

WASHER, NYLON

7555916

$1.59

12

Bumper, Rear

2632461-309

Unavailable

13

Bushing, Snap

7081039

Unavailable

14

SCREW

7512094

$1.59

15

Washer, Flat

7558301

$1.49

16

SCREW

7517686

$1.59

16

SCREW

7517686

$1.59

17

Decal, Reflector, Red, RH

7079668

$11.90

17

Decal, Reflector, Red, LH

7079667

Unavailable

17

Decal, Reflector, Red, RH

7079668

$11.90

17

Decal, Reflector, Red, LH

7079667

Unavailable

18

Skirt, Snow, LH

5434097-070

Unavailable

18

Skirt, Snow, RH

5434098-070

$46.39

19

Rack, Front

5133058

$72.49

19

Rack, Rear

5133059

$149.99

20

RIVET-3/16-.090-.290

7661637

$1.49

21

Rivet

7661130

$1.49

22

Strap, Fuel Can

7081042

Unavailable

23

Can, Fuel

5434095

Unavailable

24

RIVET

7621418

$1.49

25

Flap, Snow

5434356-1106

Unavailable

26

Protector, Bed, Front/Rear

5412033

$7.43

26

Protector, Bed, LH

5412074

$16.47

26

Protector, Bed, RH

5412134

$14.87

27

Support, Snow Flap

5812229

Unavailable

28

Rivet

7661079

Unavailable

28

Guard, Wire, Taillight [Incl. Rivets]

5245726

$11.59
