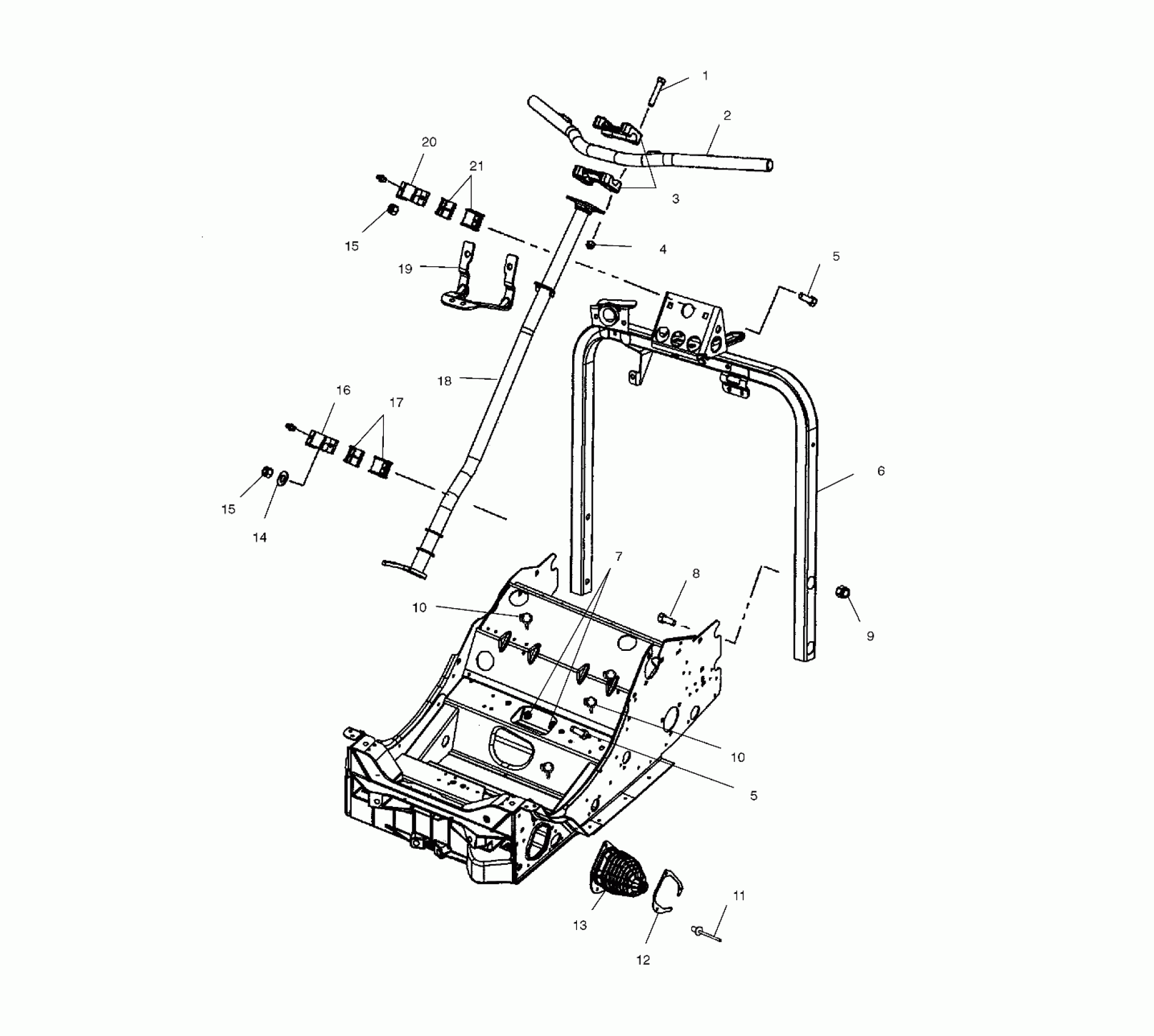

Polaris 800 RMK F/O 151 BUILT BEFORE 3/1/01 - S02NL8CS STEERING/HANDLEBAR - S02NL8CS (4972307230B04) Diagram

#

Description
Price

1

SCREW

7517238

$4.79

2

Handlebar

1820717-067

Unavailable

3

Block, Handlebar

5630187-067

$44.99

4

Nut, Nylok

7542122

$1.49

5

BOLT, CARRIAGE

7517579

$6.39

5

BOLT, CARRIAGE

7517579

$6.39

6

Hoop, Steering

1013444-067

Unavailable

7

Nut, Push

7547030

$4.79

8

Bolt, Carriage

7512377

$4.79

9

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

10

CLIP, ROSEBUD

4020139

$4.79

10

CLIP, ROSEBUD

4020139

$4.79

11

Rivet

7621433

$1.49

12

Plate, Tie Rod Boot

5244470

Unavailable

13

Boot, Tie Rod, LH

5433532

Unavailable

13

Boot, Tie Rod, RH

5433533

Unavailable

14

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

15

NUT-5/16-18 NYLOK-Y

7542324

$1.49

15

NUT-5/16-18 NYLOK-Y

7542324

$1.49

16

FITTING-LUBRICATION 1/4-28

7080424

$4.79

16

Bracket, Steering Post

5131841

Unavailable

17

Bushing

5432785

$6.39

18

Post, Steering

1821060-067

$194.99

19

Bracket, Console, Front

5245373

$13.99

20

BRACKET, STEERING POST

5132967

$36.41

21

Bushing

5434167

Unavailable
