Partiron

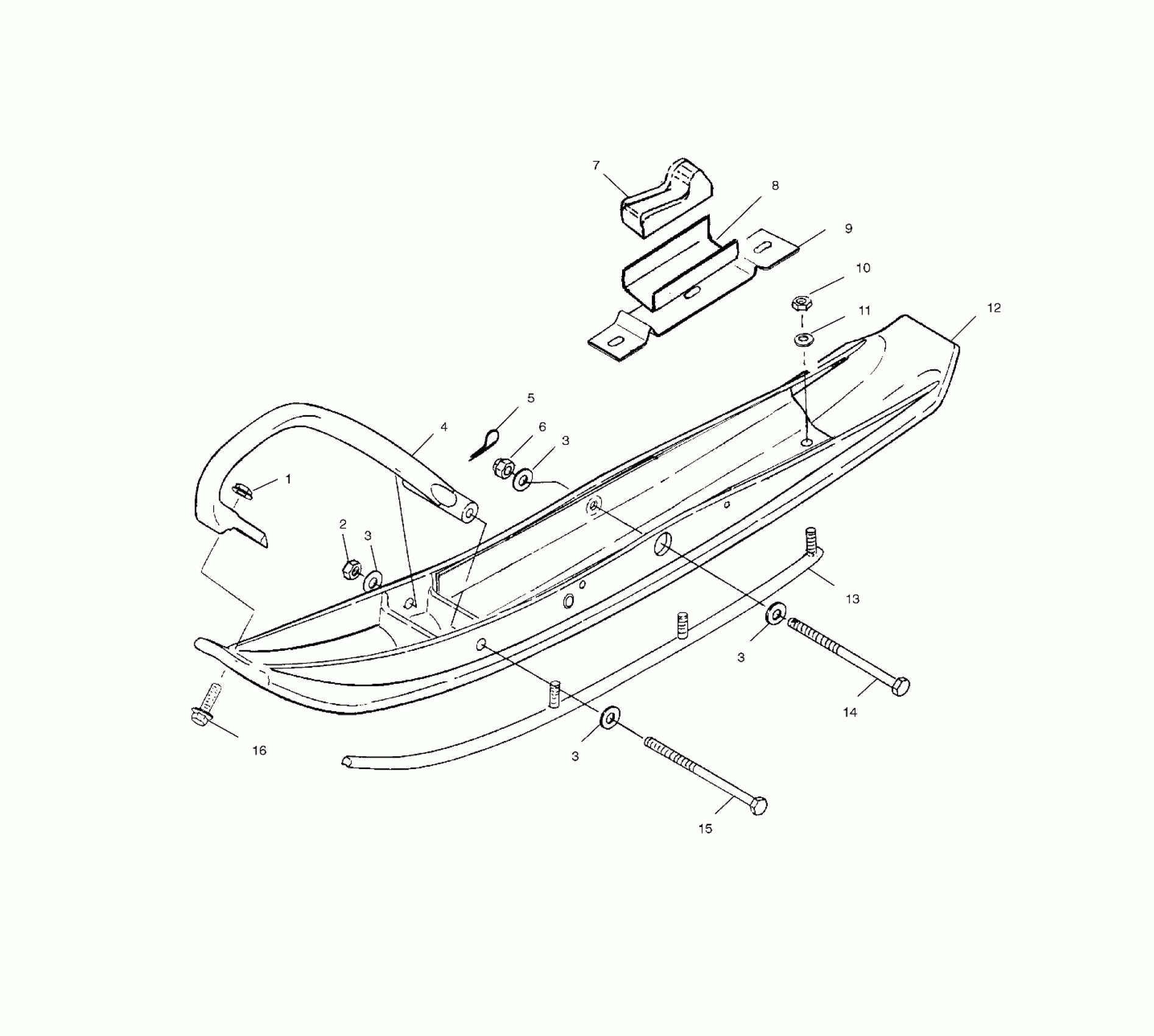

Polaris 800 RMK F/O 151 BUILT BEFORE 3/1/01 - S02NL8CS SKI - S02NL8CS (4972307230A13) Diagram

#

Description
Price

1

Nut, Flange

7542321

$1.49

2

Nut, Nylok

7542439

$1.49

3

WSHR-.813X.406X.105-Y

7555832

$2.39

3

WSHR-.813X.406X.105-Y

7555832

$2.39

3

WSHR-.813X.406X.105-Y

7555832

$2.39

3

WSHR-.813X.406X.105-Y

7555832

$2.39

4

Toe, Ski, Plastic

5434165-070

$40.46

5

Pin, Cotter

7661209

Unavailable

6

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

7

Stop, Rubber

5411094

Unavailable

8

Retainer, Ski, Rubber

5243824

$27.99

9

Support, Ski, Rubber

5241912-067

Unavailable

10

NUT-5/16-18 NYLOK-Y

7542324

$1.49

11

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

12

Ski, LH

1820667-070

Unavailable

12

Ski, RH

1820668-070

Unavailable

13

Kit - Skag, 4-inch, 90 Degree

2873277

Unavailable

14

Screw

7512596

$19.99

15

Screw

7515514

$7.19

16

Screw

7515307

$3.99
