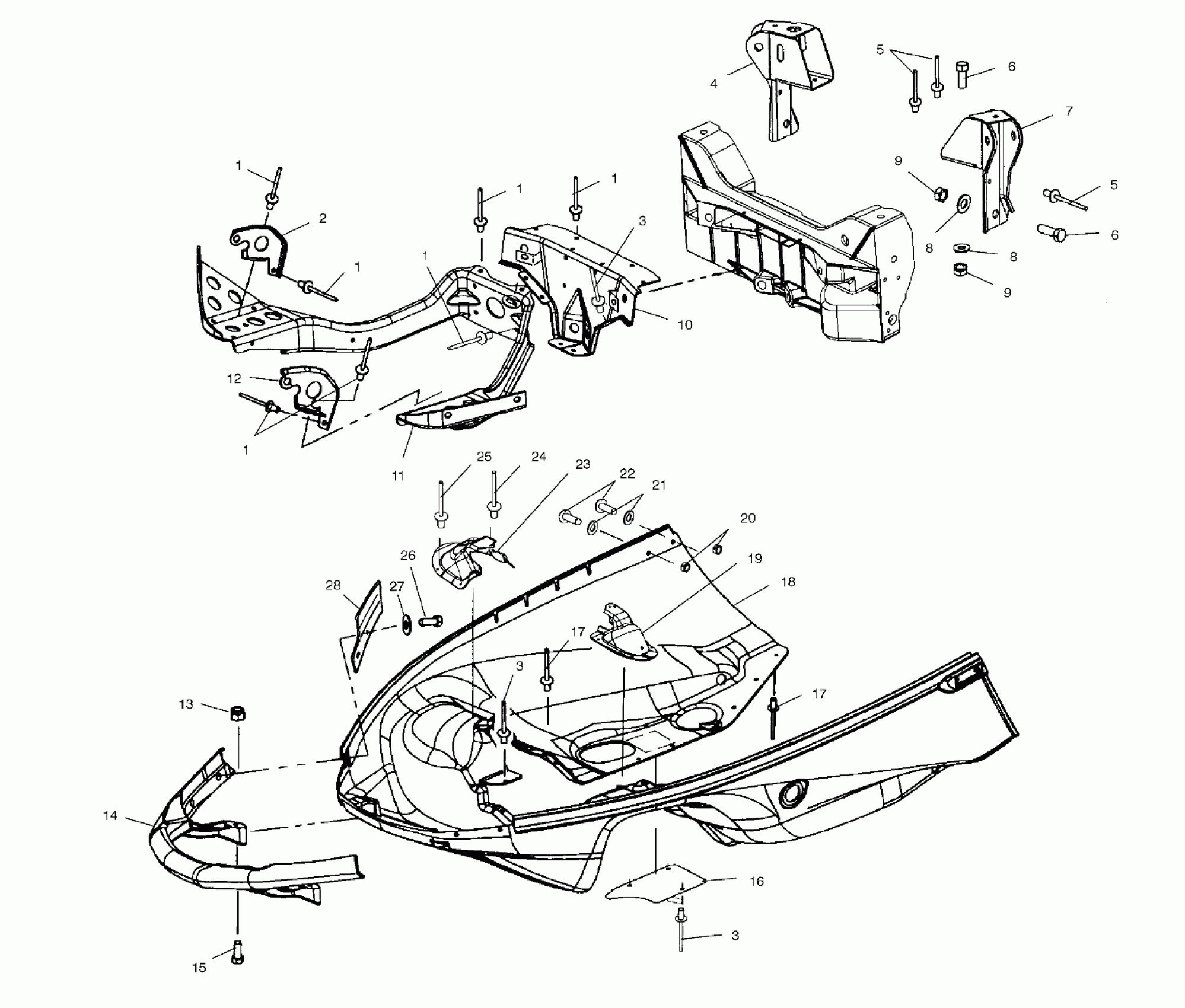

Polaris 800 RMK F/O 151 BUILT BEFORE 3/1/01 - S02NL8CS NOSEPAN - S02NL8CS (4972307230A05) Diagram

#

Description
Price

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

2

Hinge, Pivot, Lower, RH

5243992-067

$104.99

3

RIVET

7621472

$1.49

3

RIVET

7621472

$1.49

3

RIVET

7621472

$1.49

4

Tower, Shock, Upper, RH

1821108-067

Unavailable

5

Rivet

7661130

$1.49

5

Rivet

7661130

$1.49

6

Screw

7515440

$3.99

6

Screw

7515440

$3.99

7

Tower, Shock, Upper, LH

1821107-067

$99.99

8

WASHER

7556153

$1.99

8

WASHER

7556153

$1.99

9

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

9

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

10

Support, Radius Rod

1821136-067

$34.71

11

Brace, Pan, Lower

5244050

$137.60

12

Hinge, Pivot, Lower, LH

5243991-067

$104.99

13

NUT, NYLOK

7542153

$1.59

14

Bumper, Front

5433518-070

$64.75

15

Bolt

7512163

$3.99

16

Shield, Heat

5243849

$11.51

17

RIVET

7621467

$1.49

17

RIVET

7621467

$1.49

18

Nosepan, Silver

5434187-358

$361.11

19

Cover, Shock Tower, LH

5434237

Unavailable

20

Nut, Nylok

7542122

$1.49

21

WASHER

7555827

$3.99

22

Screw

7515166

$3.19

23

Cover, Shock Tower, RH

5434238

Unavailable

24

RIVET

7621418

$1.49

25

RIVET

7621485

$1.49

26

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.49

27

WASHER, SPRING LOCK

7552801

$1.59

28

Guide, Hood, LH

5244888

Unavailable

28

Guide, Hood, RH

5244889

Unavailable
