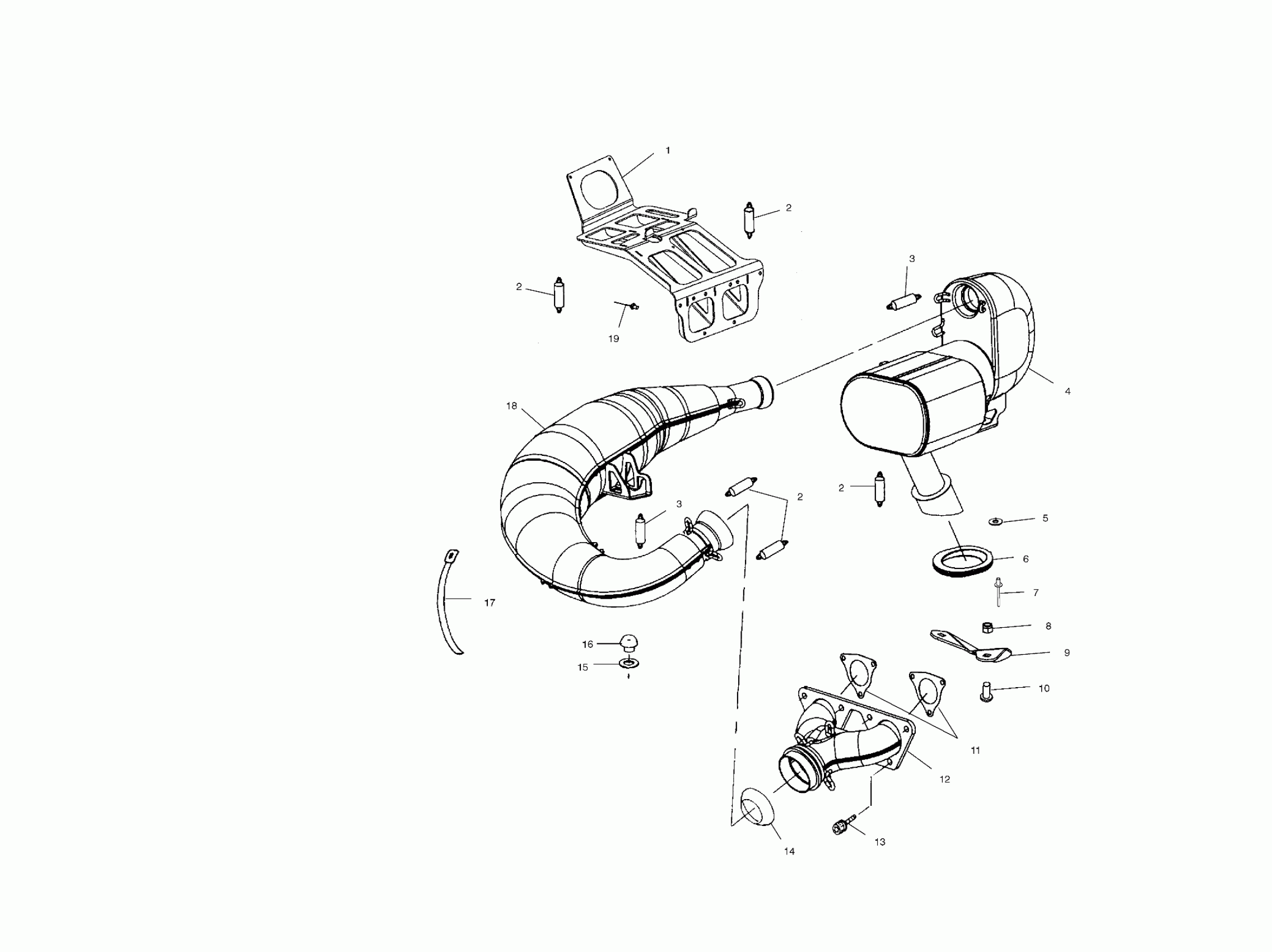

Polaris 800 RMK F/O 151 BUILT BEFORE 3/1/01 - S02NL8CS EXHAUST - S02NL8CS (4972307230C01) Diagram

#

Description
Price

1

Bracket, Chassis/Resonator

1261008-029

Unavailable

2

SPRING-EXHAUST

7041687

$5.65

2

SPRING-EXHAUST

7041687

$5.65

2

SPRING-EXHAUST

7041687

$5.65

2

SPRING-EXHAUST

7041687

$5.65

3

Spring, Exhaust

7042029

$4.84

3

Spring, Exhaust

7042029

$4.84

4

Resonator

1261066-029

Unavailable

5

Washer

7555904

$1.49

6

Boot, Exhaust Outlet

5411684

Unavailable

7

RIVET

7621467

$1.49

8

Nut, Flange

7542321

$1.49

9

Deflector, Snow, Exhaust

5243929

$24.27

10

Bolt, Carriage

7512394

Unavailable

11

Gasket, Exhaust

5811799

Unavailable

12

Manifold

1261124-029

$216.99

13

Screw

7517322

$2.39

14

Seal, Exhaust

3610046

$36.41

15

WASHER

7556004

Unavailable

16

Dampener, Vibration

5411576

$7.99

17

Clamp [.44 x 3.13]

7080739

$10.63

17

Clamp [.44 x 3.69]

7080740

$13.19

17

Clamp [.44 x 4.25]

7080741

$19.99

17

Clamp [.44 x 6.38]

7080742

$15.03

18

Asm., Pipe, Tuned [Incl. 17]

1261123

$355.99

18

Cover, Pipe, Top

5241720

Unavailable

18

Matte, Sound

5830111

$86.51

18

Pipe, Tuned

1261122-029

Unavailable

18

Cover, Pipe, Bottom

5245403

Unavailable

18

Matte, Sound, Bottom

5830209

$82.39

19

RIVET-3/16-.090-.290

7661637

$1.49
