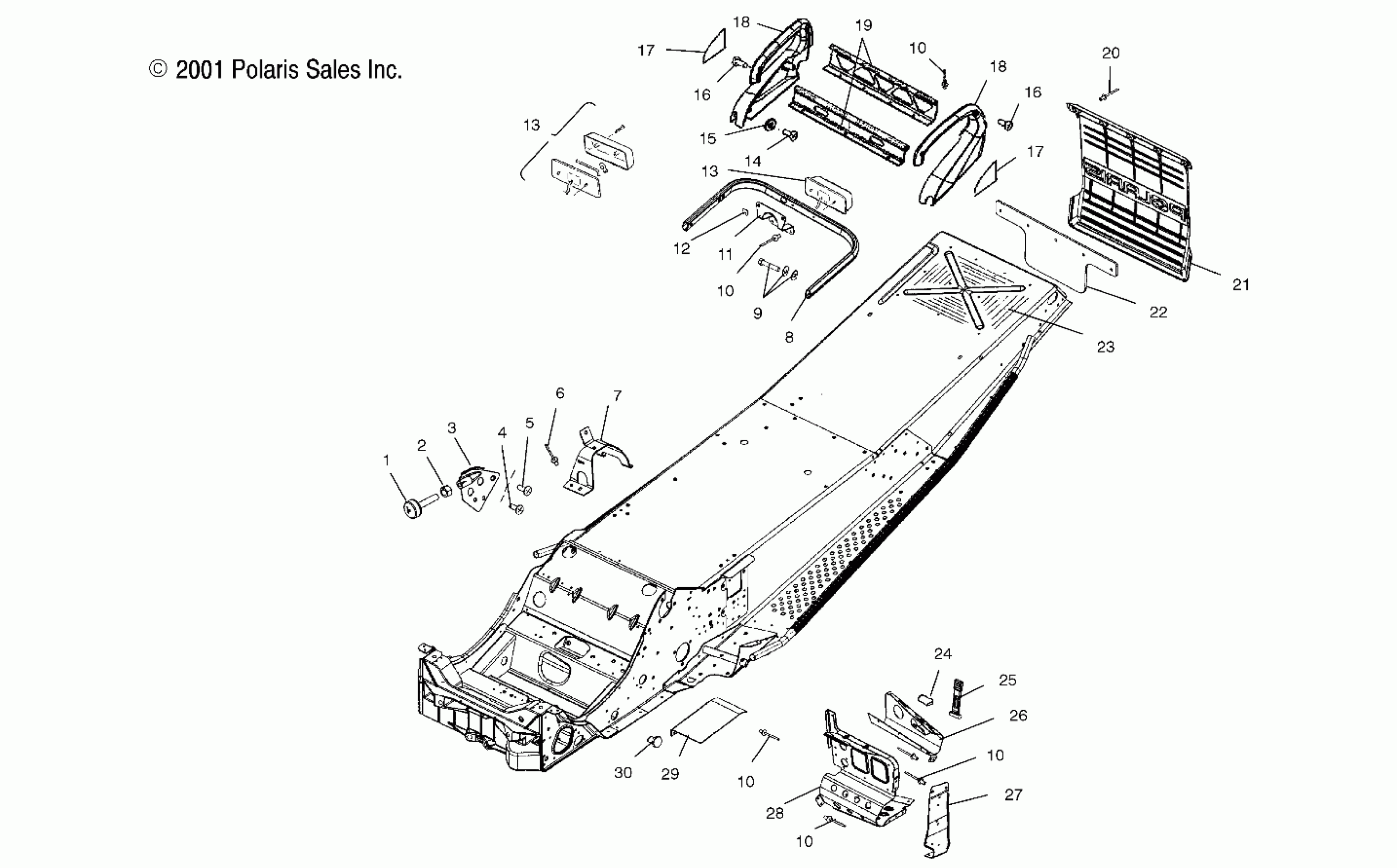

Polaris 800 RMK F/O 151 BUILT BEFORE 3/1/01 - S02NL8CS CHASSIS - S02NL8CS (4972307230A03) Diagram

#

Description
Price

-

Asm., Chassis

1013581-309

$1,269.99

1

Stop, Torque

3110078

$36.41

2

NUT

7542404

$1.59

3

Stop, Torque

1013377

$27.19

4

Screw

7517854

$5.59

5

SCREW

7517632

$5.59

6

Rivet

7621432

$1.49

7

Bracket, Jackshaft Shield

5245003

$13.19

8

Bumper, Rear, Unpainted

2632165-309

Unavailable

9

Washer, Flat

7558301

$1.49

9

WASHER, SPRING LOCK

7552801

$1.59

9

Screw

7512113

$3.99

10

RIVET-3/16-.090-.290

7661637

$1.49

10

RIVET-3/16-.090-.290

7661637

$1.49

10

RIVET-3/16-.090-.290

7661637

$1.49

10

RIVET-3/16-.090-.290

7661637

$1.49

10

RIVET-3/16-.090-.290

7661637

$1.49

11

Bracket, Taillight

5245419-067

$16.47

12

Clip, Retainer

7670093

$5.99

13

Lens

4032085

$36.41

13

Backing

4032087

Unavailable

13

Screw

7512088

$2.39

13

Gasket

4032086

Unavailable

13

Bulb, Tallight

4030043

$6.46

13

Asm., Taillight

2410267

Unavailable

13

Lens

4032085

$36.41

13

Backing

4032087

Unavailable

13

Screw

7512088

$2.39

13

Gasket

4032086

Unavailable

13

Bulb, Tallight

4030043

$6.46

13

Asm., Taillight

2410267

Unavailable

14

SCREW

7512094

$1.59

15

Washer, Flat

7558301

$1.49

16

SCREW

7517686

$1.59

16

SCREW

7517686

$1.59

17

Decal - Reflector, Red, RH

7079668

$11.90

17

Decal - Reflector, Red, LH

7079667

Unavailable

17

Decal - Reflector, Red, RH

7079668

$11.90

17

Decal - Reflector, Red, LH

7079667

Unavailable

18

Skirt, Snow, LH

5434097-070

Unavailable

18

Skirt, Snow, RH

5434098-070

$46.39

18

Skirt, Snow, LH

5434097-070

Unavailable

18

Skirt, Snow, RH

5434098-070

$46.39

19

Rack, Front

5133058

$72.49

19

Rack, Rear

5133059

$149.99

20

RIVET

7621418

$1.49

21

Flap, Snow

5434099-1106

Unavailable

22

Support, Snow Flap

5812229

Unavailable

23

Protector, Bed, Front/Rear

5412033

$7.43

23

Protector, Bed, LH

5412074

$16.47

23

Protector, Bed, RH

5412075

$14.76

24

EXTRUSION, CLUTCH GUARD

5521238

$6.46

25

STRAP-AIRBOX TOP

5433150

$24.27

26

Mount, Console, Toe Clip, LH

5245457

Unavailable

26

Mount, Console, Toe Clip, RH

5245458

Unavailable

27

Support, Footrest, LH

5242741

$19.68

27

Support, Footrest, RH

5242742

$32.37

28

Footrest, LH

5245288

Unavailable

28

Footrest, RH

5242740

Unavailable

29

Guard, Adapter

5221583

$11.59

30

PLUG, HOLE

7080416

$5.65
