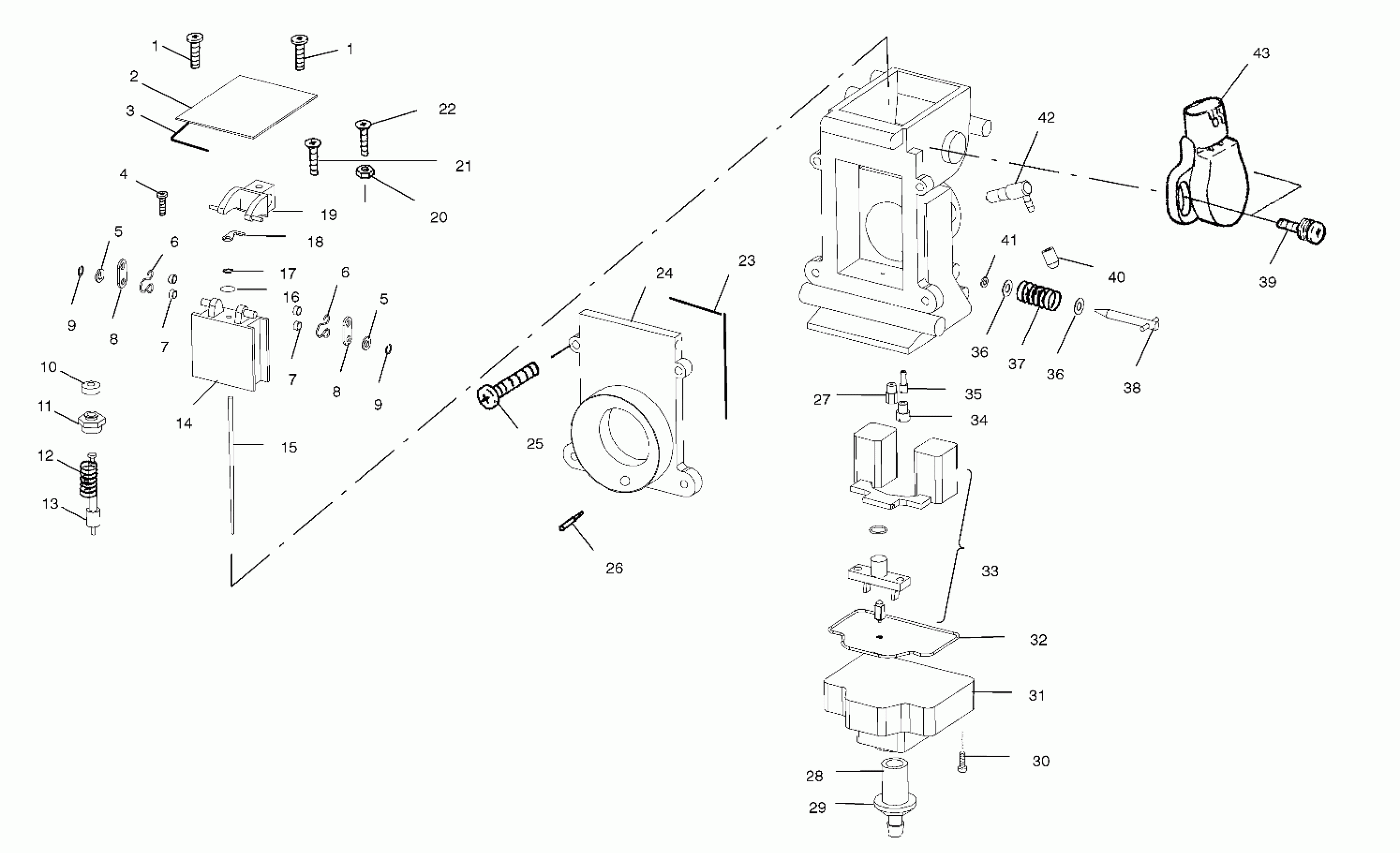

Polaris 800 RMK F/O 151 BUILT BEFORE 3/1/01 - S02NL8CS CARBURETOR - S02NL8CS (4972307230C07) Diagram

#

Description
Price

-

Asm., Carburetor, Rack, 40mm

1253419

$649.99

1

Screw

3130951

$3.99

1

Screw

3130951

$3.99

2

Cap, Top

3130872

Unavailable

3

Gasket

3130871

$20.22

4

Screw

3130844

$3.99

5

Packing

3130846

$4.79

5

Packing

3130846

$4.79

6

Clip

3130856

$8.79

6

Clip

3130856

$8.79

7

Ring

3130845

$8.89

7

Ring

3130845

$8.89

8

Plate

3130857

$7.27

8

Plate

3130857

$7.27

9

E-Ring

3130847

$8.89

9

E-Ring

3130847

$8.89

10

Cap, Rubber

3130831

$7.27

11

Holder, Guide

3130830

$32.37

12

Spring

3130829

$12.94

13

Plunger

3130828

$32.37

14

Valve, Piston [2.0]

3130789

$134.99

15

Needle, Jet [J8-9EFY08-61]

3131286

$25.59

16

Packing

3130867

$5.65

17

E-Ring

3130868

$8.89

18

Plate

3130843

$8.89

19

Lever, LH

3130855

$64.75

19

Lever, RH

3130849

$64.75

20

Ring

3130848

$32.37

21

Screw, LH

3130854

$3.19

22

Screw, RH

3130850

$4.79

23

O-Ring, Air Funnel, Long

3131356

$16.17

24

Asm.,Funnel, Long

3131335

$53.59

25

Screw

3130825

$3.19

26

Screw, Air

3131336

Unavailable

27

Jet, Main [310][PTO]

3130134

$7.27

27

Jet, Main [330][MAG]

3130136

$8.99

28

Nipple

3130862

Unavailable

29

O-Ring

3130863

$2.41

30

Screw

3130824

$3.19

31

Body, Float

3130858

$119.99

32

O-Ring

3130861

$12.13

33

Asm.,Float

3131231

$134.99

34

Jet, Pilot [55]

3130070

$8.89

35

Jet, Pilot [145]

3130769

$8.89

36

Washer, Starter

3130837

$3.19

36

Washer, Starter

3130837

$3.19

37

SPRING

3130836

$7.27

38

Asm., Adjuster

3130838

Unavailable

39

SCREW

3131010

$4.79

40

CAP

3130479

$14.56

41

Packing

3130835

$2.41

42

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37

43

Asm., Sensor

3131009

$259.03
