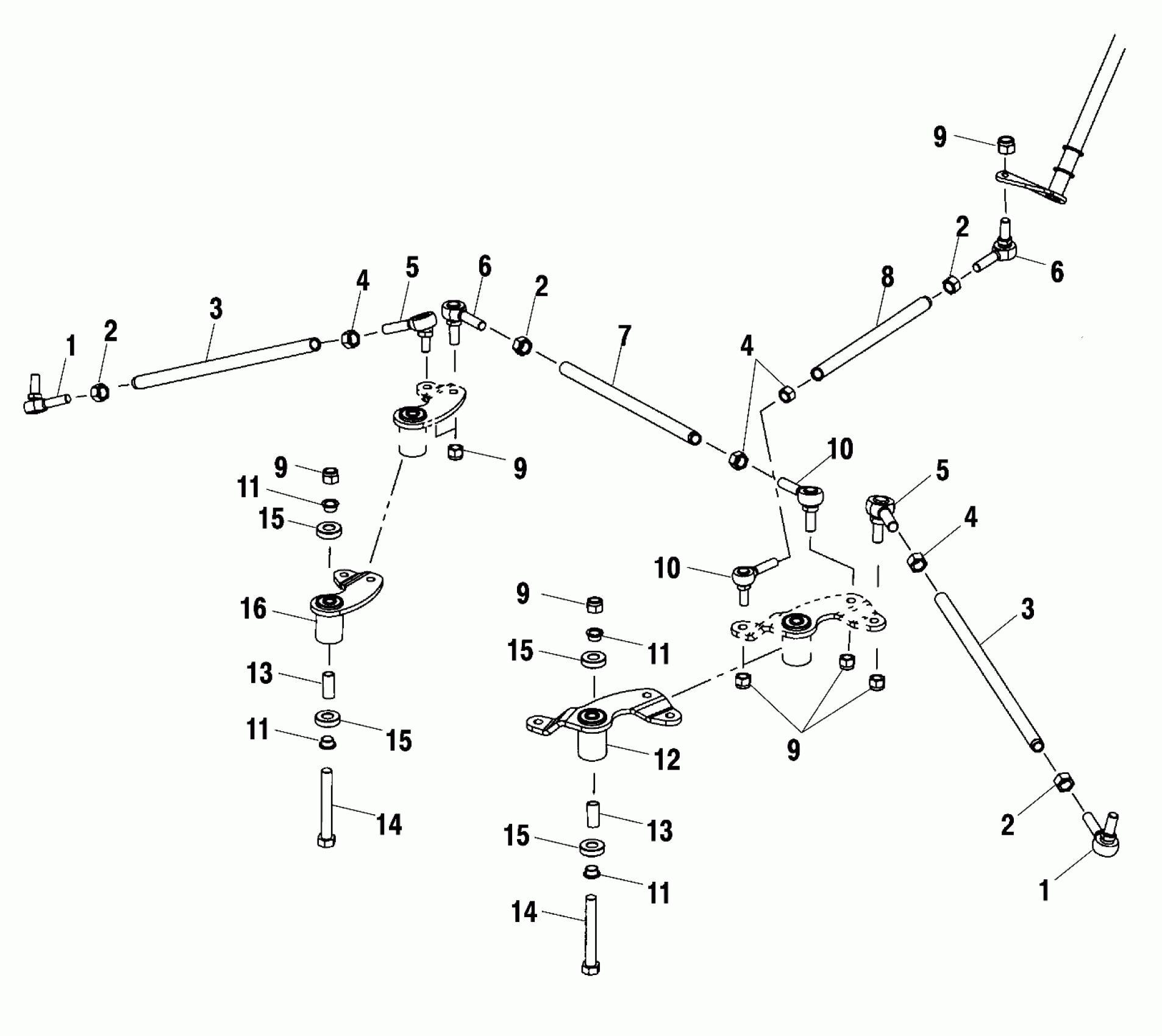

Polaris 800 RMK F/O 151 BUILT AFTER 3/1/01 - S02NL8CS STEERING/HANDLEBAR - S02NL8CS/CSA (4969516951B07) Diagram

#

Description
Price

1

Rod End, RH

7061086

$48.56

1

Rod End, RH

7061086

$48.56

2

NUT

7542401

$2.39

2

NUT

7542401

$2.39

2

NUT

7542401

$2.39

2

NUT

7542401

$2.39

3

Tie Rod

5333937

$36.41

3

Tie Rod

5333937

$36.41

4

NUT, LH

7542424

$1.49

4

NUT, LH

7542424

$1.49

4

NUT, LH

7542424

$1.49

5

Rod End, LH

7061085

Unavailable

5

Rod End, LH

7061085

Unavailable

6

Rod End, RH

7061076

$48.56

6

Rod End, RH

7061076

$48.56

7

Rod, Steering Rack

5333772

$36.41

8

Rod, Draglink

5333773-067

$38.71

9

Nut, Nylok

7542439

$1.49

9

Nut, Nylok

7542439

$1.49

9

Nut, Nylok

7542439

$1.49

9

Nut, Nylok

7542439

$1.49

9

Nut, Nylok

7542439

$1.49

10

Rod End, LH

7061075

$48.56

10

Rod End, LH

7061075

$48.56

11

BUSHING, REDUCER

5132106

$7.99

11

BUSHING, REDUCER

5132106

$7.99

11

BUSHING, REDUCER

5132106

$7.99

11

BUSHING, REDUCER

5132106

$7.99

12

Asm., Pitman Arm [Incl. 11,13,15]

1820957

$155.99

13

Tube, Spacer

5133368

$29.99

13

Tube, Spacer

5133368

$29.99

14

Screw

7512435

$3.99

14

Screw

7512435

$3.99

15

Bearing, Ball

3514320

$15.99

15

Bearing, Ball

3514320

$15.99

15

Bearing, Ball

3514320

$15.99

15

Bearing, Ball

3514320

$15.99

16

Asm., Idler Arm [Incl. 11,13,15]

1820959

$184.99
