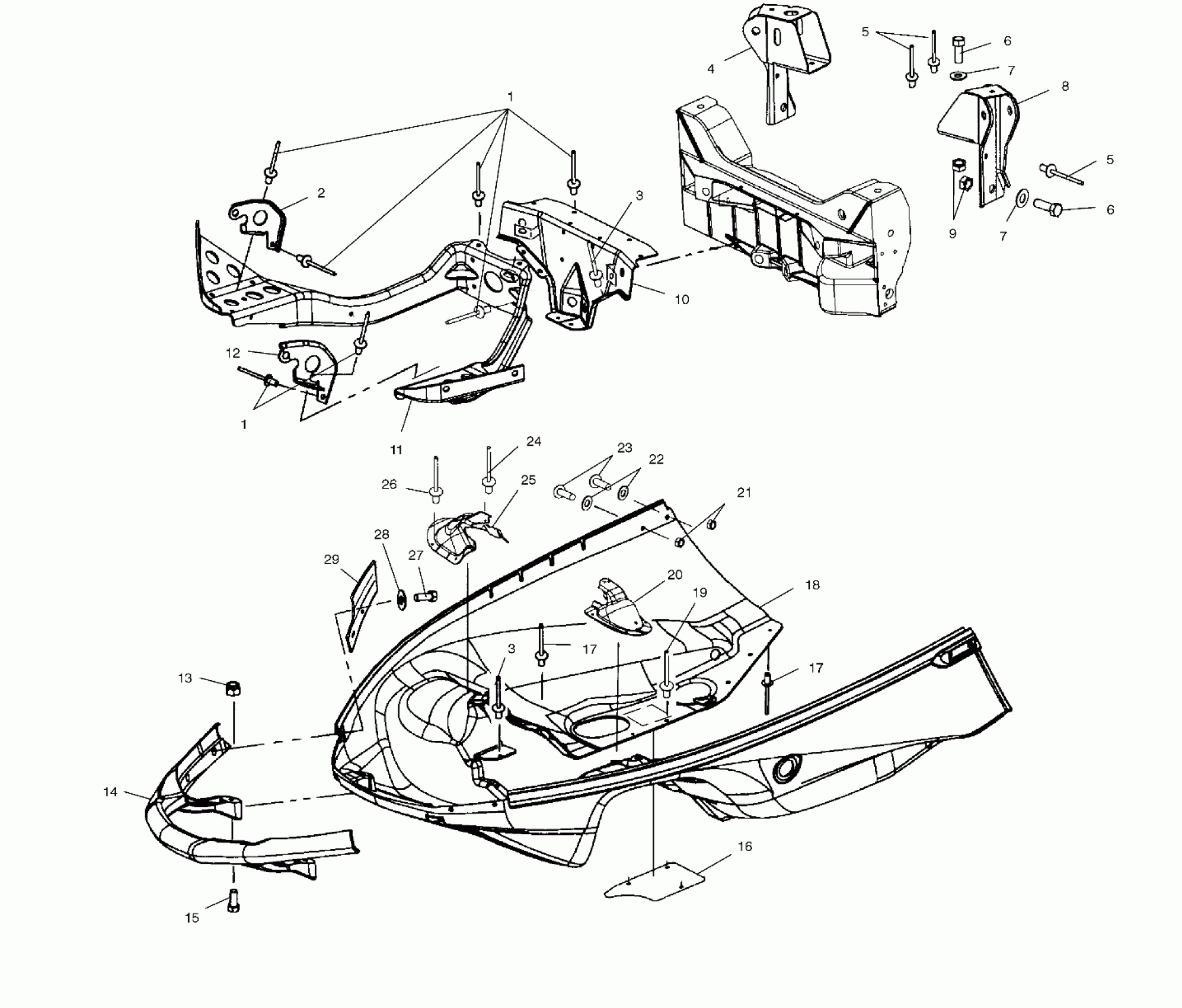

Polaris 800 RMK F/O 151 BUILT AFTER 3/1/01 - S02NL8CS NOSEPAN - S02NL8CS/CSA (4969516951A06) Diagram

#

Description
Price

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

2

Hinge, Pivot, Lower, RH

5243992-067

$104.99

3

RIVET

7621431

$1.49

3

RIVET

7621431

$1.49

4

Tower, Shock, RH

1821108-067

Unavailable

5

Rivet

7661130

$1.49

5

Rivet

7661130

$1.49

6

SCREW

7517935

$2.39

6

SCREW

7517935

$2.39

7

WASHER

7556153

$1.99

7

WASHER

7556153

$1.99

8

Tower, Shock, LH

1821107-067

$99.99

9

Nut, Flange

7547180

$2.39

10

Support, Radius Rod

1821136-067

$34.71

11

Brace, Pan, Lower

5244050

$137.60

12

Hinge, Pivot, Lower, LH

5243991-067

$104.99

13

NUT, NYLOK

7542153

$1.59

14

Bumper, Front, Black

5433518-070

$64.75

14

Bumper, Front, Yellow

5433518-216

$64.75

15

Bolt

7512163

$3.99

16

Shield, Heat

5245853

$11.59

17

RIVET

7621467

$1.49

17

RIVET

7621467

$1.49

18

Nosepan, Black

5434345-070

Unavailable

18

Nosepan, High Shocks, Silver

5434345-358

$361.11

18

Nosepan, Red

5434345-293

$355.99

19

RIVET

7621472

$1.49

20

Cover, Shock Tower, LH

5434346

$39.99

21

Nut, Nylok

7542122

$1.49

22

WASHER

7555827

$3.99

23

Screw

7515166

$3.19

24

RIVET

7621418

$1.49

25

Cover, Shock Tower, RH

5434347

Unavailable

25

Foil, Shock Tower

5812271

$4.95

26

RIVET

7621485

$1.49

27

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.49

28

WASHER, SPRING LOCK

7552801

$1.59

29

Guide, Hood, LH

5244888

Unavailable

29

Guide, Hood, RH

5244889

Unavailable
