- 800 RMK F/O 151 BUILT AFTER 3/1/01 - S02NL8CS
FRONT SUSPENSION - S02NL8CS/CSA (4970597059B05)

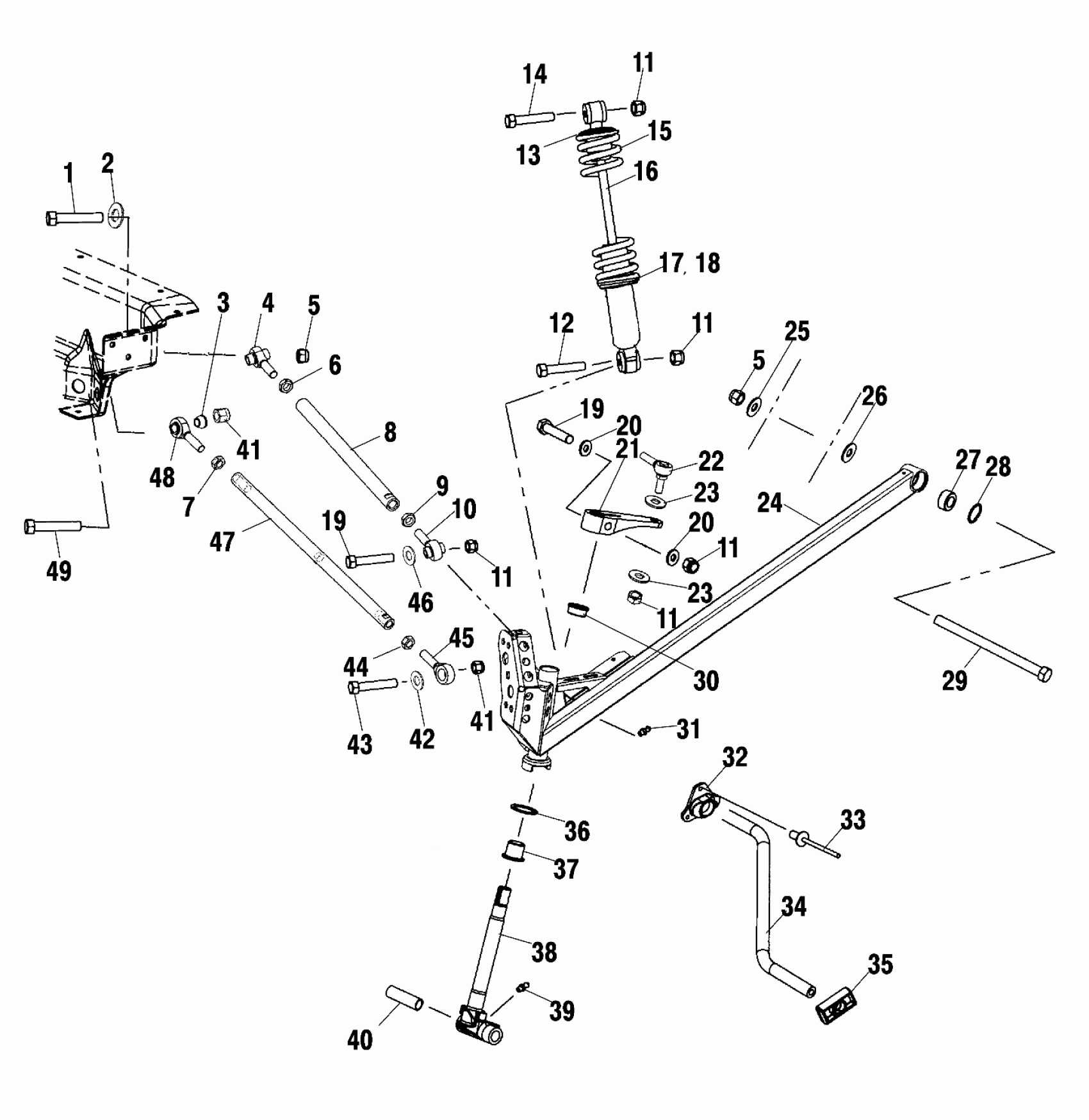

Polaris 800 RMK F/O 151 BUILT AFTER 3/1/01 - S02NL8CS FRONT SUSPENSION - S02NL8CS/CSA (4970597059B05) Diagram
#
1
Bolt
7517980
$7.99
2
WASHER
7556212
$8.79
3
Bushing, Spacer
5132454
Unavailable
4
Rod End, LH
7061081
Unavailable
5
Nut, Nylok
7547066
$1.59
5
Nut, Nylok
7547066
$1.59
6
Nut, Jam, LH
7547117
Unavailable
7
Nut, Jam, LH
7547028
$2.39
8
Tube, Radius, Upper
5133137
$104.99
9
Nut, Jam
7542520
$2.39
10
Rod End
7061061
$48.56
11
Nut, Nylok
7542439
$1.49
11
Nut, Nylok
7542439
$1.49
11
Nut, Nylok
7542439
$1.49
11
Nut, Nylok
7542439
$1.49
11
Nut, Nylok
7542439
$1.49
12
Screw
7515433
$1.59
13
Retainer, Spring, Slotted [IFP][Nitrex]
5630580
Unavailable
14
Screw
7515415
$1.49
15
Spring, Compression [Nitrex]
7041551-067
$74.99
15
Spring, Compression [IFP]
7041576-067
$43.99
16
Shock, IFS, Nitrex
7042107
Unavailable
16
Shock, IFS, Arvin, IFP [See Shock (IFS) Page for Service Components]
7042059
Unavailable
17
Ring, Spring Preload [Nitrex]
5431734
$52.60
18
Retainer, Spring Body, Threaded [Nitrex]
1500063
$44.51
19
SCREW
7517583
$4.35
19
SCREW
7517583
$4.35
20
WSHR-.813X.406X.105-Y
7555832
$2.39
20
WSHR-.813X.406X.105-Y
7555832
$2.39
21
Arm, Steering
5133060
$70.39
22
Rod End, RH
7061086
$48.56
23
Washer, Flat
7555797
$3.99
23
Washer, Flat
7555797
$3.99
24
Asm., Trailing Arm, Red, LH [Incl. 27,28]
1821201-293
$291.41
24
Asm., Trailing Arm, Red, RH [Incl. 27,28]
1821202-293
Unavailable
24
Asm., Trailing Arm, Yellow, LH [Incl. 27,28]
1821201-216
Unavailable
24
Asm., Trailing Arm, Yellow, RH [Incl. 27,28]
1821202-216
Unavailable
25
WASHER, FLAT
7555820
$3.99
26
Cup, Mount, Trailing Arm
5132364
$20.22
27
Bearing, Spherical
7061042
$31.99
28
Ring, Retaining
7710437
$3.19
29
Screw
7512099
$19.99
30
Bushing
3573909
$2.39
31
Fitting, Lubrication
7080433
$1.49
32
Bushing, Torsion Bar
5433814
$23.99
33
Rivet
7621452
$1.49
34
Bar, Torsion
5245217-067
Unavailable
35
Slide, Torsion Bar
5433885
Unavailable
36
Bushing
7556509
$1.59
37
BUSHING, FLANGED
3574208
$3.19
38
Shaft w/Steering Stop, Spindle
6230225-067
$219.99
39
Fitting, Lubrication
7080306
$3.19
40
Bushing
5010158
$19.99
41
Nut, Nylok
7547065
$3.99
41
Nut, Nylok
7547065
$3.99
42
Washer
7556213
$3.17
43
Bolt
7517906
Unavailable
44
Nut, Jam
7542711
$2.39
45
Rod End
7061052
$48.56
46
WASHER
7556153
$1.99
47
Tube, Radius, Lower
5132953
Unavailable
48
Rod End
7061087
$144.99
49
Bolt
7517981
$4.13
