- 800 RMK F/O 151 BUILT AFTER 3/1/01 - S02NL8CS
ENGINE MOUNTING - S02NL8CS/CSA (4969516951C04)

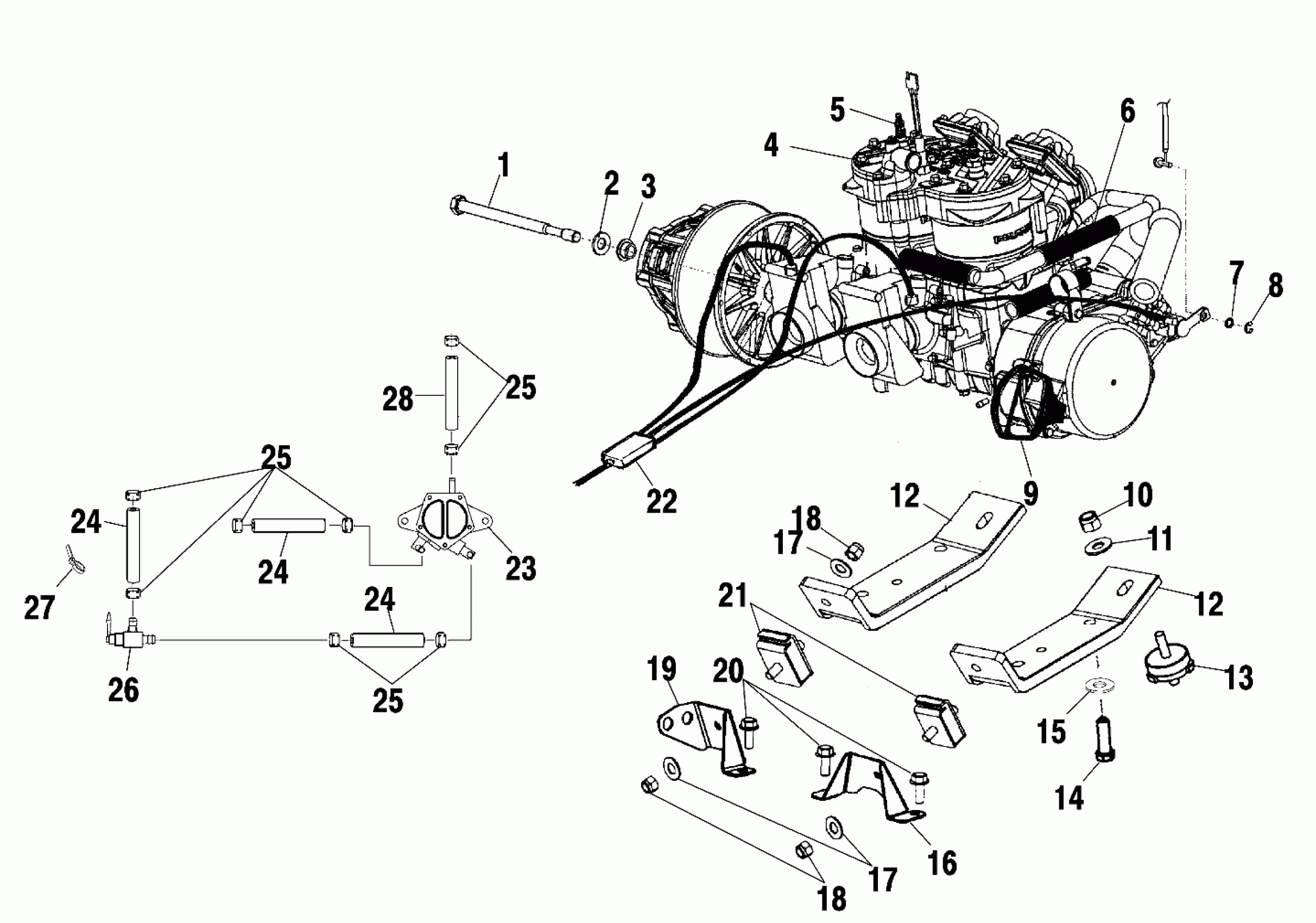

Polaris 800 RMK F/O 151 BUILT AFTER 3/1/01 - S02NL8CS ENGINE MOUNTING - S02NL8CS/CSA (4969516951C04) Diagram
#
Description
Price
1
Screw
7517501
Unavailable
2
WASHER
7556003
$6.39
3
WASHER-CLUTCH RET,M14
5132441
$23.99
4
Engine, Short Block, S807002 NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is required f
2201933
Unavailable
5
Spark Plug, RN57YCC, Champion
3070190
$3.99
6
Conduit
5521398-13
Unavailable
7
Washer, Nylon
7555944
$3.99
8
E-Ring
7710427
Unavailable
9
Handle, Recoil
5431499-070
$15.48
10
NUT-HEX-3/8-16 A ZTB NYL
7542451
$1.49
11
Washer, Flat
7555893
$1.49
12
Strap, Engine Mount, RH
5245475
$41.59
12
Strap, Engine Mount, LH
5245932
$39.67
12
Strap, Engine Mount, RH
5245475
$41.59
12
Strap, Engine Mount, LH
5245932
$39.67
13
Mount, Engine
3021290
Unavailable
14
Screw
7512539
$3.99
15
Washer, Spring Lock
7553101
$3.99
16
Bracket, Engine Mount, RH
5245044
Unavailable
17
Washer, Flat
7555806
$1.49
17
Washer, Flat
7555806
$1.49
18
NUT, FLEXLOC
7547008
$6.39
18
NUT, FLEXLOC
7547008
$6.39
19
Bracket, Engine Mount, LH
1013397
$24.27
20
Screw
7517854
$5.59
21
Mount, Engine
3021206
$60.70
22
Cable, Throttle
7080897
$64.75
23
Pump, Fuel
2520258
Unavailable
24
Line, Fuel
8350017-600
Unavailable
24
Line, Fuel
8350017-600
Unavailable
24
Line, Fuel
8350017-600
Unavailable
25
HOSE CLAMP, RED
7080003
$1.49
25
HOSE CLAMP, RED
7080003
$1.49
25
HOSE CLAMP, RED
7080003
$1.49
26
Valve, Fuel Shut-Off
7052268
Unavailable
27
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
28
Line, Fuel
8450040-600
Unavailable
