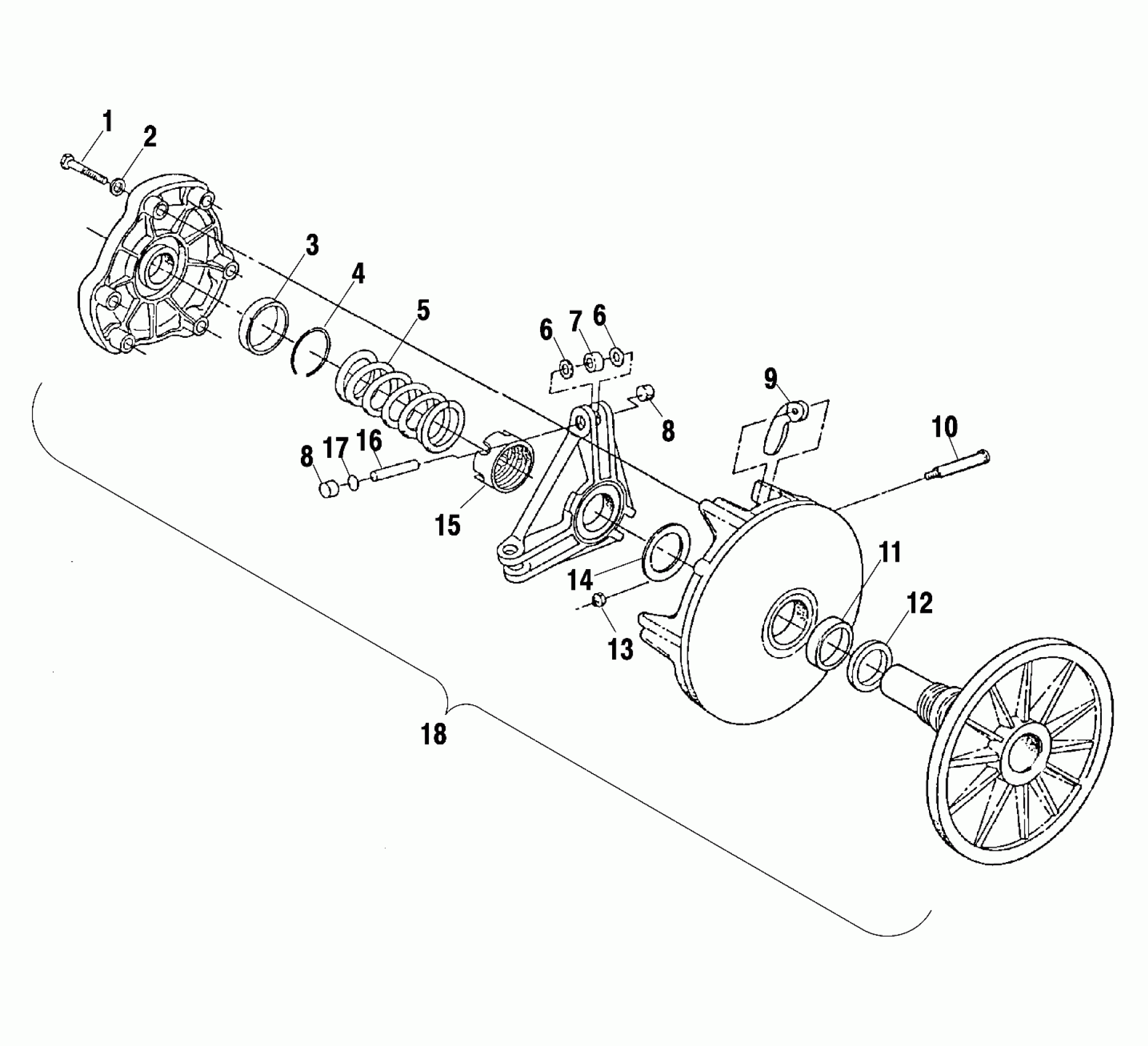

Polaris 800 RMK F/O 151 BUILT AFTER 3/1/01 - S02NL8CS DRIVE CLUTCH - S02NL8CS/CSA (4969516951B14) Diagram

#

Description
Price

1

Bolt

7512265

$3.99

2

WASHER, SPRING LOCK

7552801

$1.59

3

BEARING COVER GARMAX

3514347

$36.41

4

RING-RETAINING,COVER

7710417

$1.49

5

SPRING, CLUTCH, BLACK/GREEN

7042083

$56.65

6

WASHER,MULTILUBE

5430945

$1.59

6

WASHER,MULTILUBE

5430945

$1.59

7

ASM-ROLLER AND BUSHING

1321622

$32.37

8

BUTTON, GUIDE

5430445

$6.39

8

BUTTON, GUIDE

5430445

$6.39

9

Weight/Bushing (10-60)

1321587

$40.46

10

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

11

Bearing, Sleeve

3576502

$23.99

12

INSERT-MOVEABLE

5010188

$7.99

13

NUT, FLEXLOC

7541906

$3.19

14

Spacer [.050mm]

5210754

Unavailable

14

Spacer [.025 mm]

5242981

Unavailable

14

Spacer [.020mm]

5210752

Unavailable

14

Spacer [.032mm]

5210753

Unavailable

15

NUT-JAM

5020425

$23.99

16

Pin, Roller

5133054

Unavailable

17

Kit - Shim, Drive Clutch

2200387

$24.27

18

Kit, Wide Roller Spider Rebuild [Incl. 6-8,10,16,17]

2201169

$169.98

18

Asm., Drive Clutch, Basic 108 [Incl. All Less 5,9]

1321880

Unavailable
