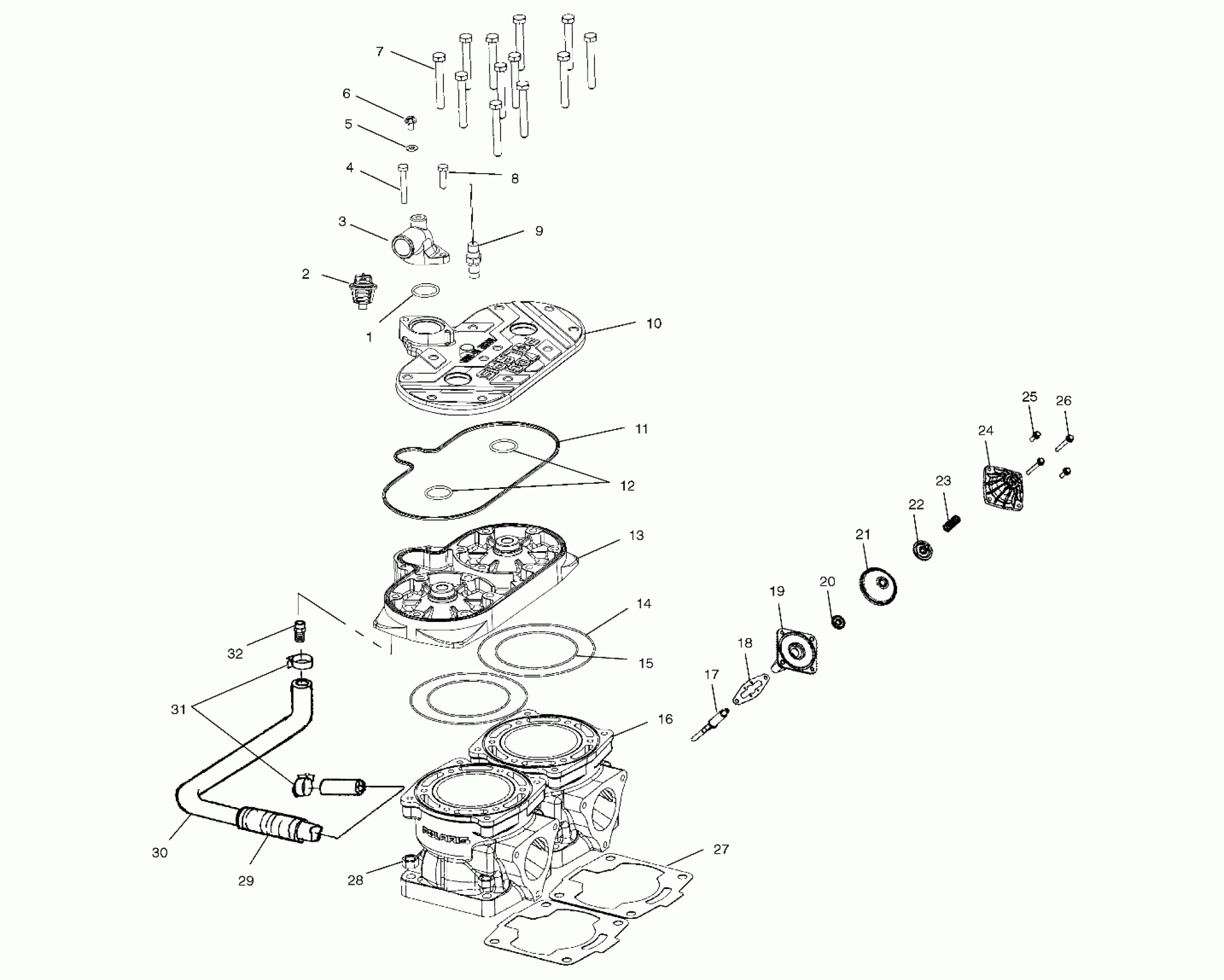

Polaris 800 RMK F/O 151 BUILT AFTER 3/1/01 - S02NL8CS CYLINDER - S02NL8CS/CSA (4969516951C06) Diagram

#

Description
Price

1

O-Ring

5411521

$24.19

2

Thermostat

7052258

$48.56

3

Cover, Thermostat

5630992

Unavailable

4

SCREW

7516818

$5.59

5

WASHER, FLAT

7555998

$1.49

6

SCREW, BLEED

7517679

$13.59

7

SCREW

7517534

$4.79

8

SCREW

7516822

$2.39

9

Sensor, Temperature

4010398

$36.41

10

Cover, Head

5631202-366

Unavailable

11

Seal

5411294

Unavailable

12

O-Ring

5410917

$1.49

13

Head, Cylinder

3021294

Unavailable

14

O-Ring

5410931

Unavailable

15

O-Ring

5411675

$29.03

16

Cylinder

3021336

Unavailable

17

Valve, Guillotine

1202112

$179.99

18

Gasket

5812241

$6.46

19

Asm., Base

1202216

Unavailable

20

Washer

5132950

Unavailable

21

Bellows, Exhaust Valve

5412147

$44.51

22

Cap

5631152

Unavailable

23

Spring

7041704-03

$28.32

24

Housing, Bellows

5434599

Unavailable

25

SCREW

7516820

$5.59

26

SCREW

7517932

$3.99

27

Gasket, Cylinder Base

5811784

$8.89

28

NUT

7547013

$1.99

29

Conduit

5521398-96

Unavailable

30

Hose, Bypass

5411536

Unavailable

31

Clamp

7081030

$6.39

32

FITTING

7052222

$23.99
