- 800 RMK F/O 151 BUILT AFTER 3/1/01 - S02NL8CS
CRANKCASE - S02NL8CS/CSA (4969516951C05)

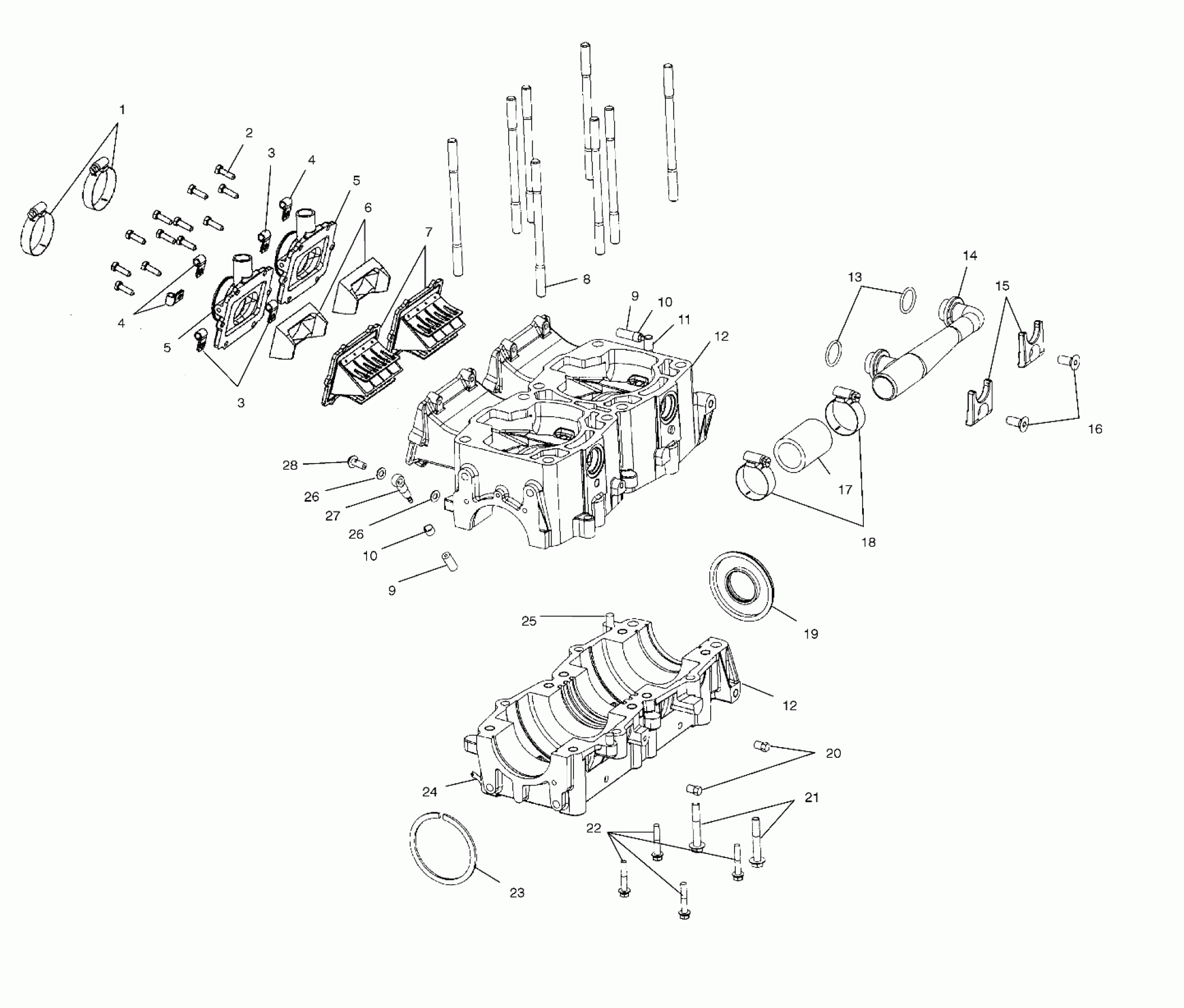

Polaris 800 RMK F/O 151 BUILT AFTER 3/1/01 - S02NL8CS CRANKCASE - S02NL8CS/CSA (4969516951C05) Diagram
#
Description
Price
1
Clamp, Hose
7080681
$9.59
2
SCREW
7517398
$3.19
3
Clamp, Hose
7080880
$5.59
3
Clamp, Hose
7080880
$5.59
4
CLAMP, HOSE
7080683
$2.39
4
CLAMP, HOSE
7080683
$2.39
5
Adapter, Carb
1253327
$104.99
5
Adapter, Carb
1253327
$104.99
6
Stuffer, Reed Block
5433151
Unavailable
7
Asm., Reed Valve
1201825
$134.99
8
Stud
5131677
Unavailable
9
LINE, FUEL
8450061-600
Unavailable
9
LINE, FUEL
8450061-600
Unavailable
10
Clamp
7080603
$1.59
10
Clamp
7080603
$1.59
11
VALVE-CHECK,90,1/8"7MM BORE
7051020
$32.37
12
Kit, Crankcase [Incl. 8,11,21,22,24,25]
2201929
Unavailable
12
Kit, Crankcase [Incl. 8,11,21,22,24,25]
2201929
Unavailable
13
O-Ring
5411125
Unavailable
14
Manifold, Inlet
5630610
$49.59
15
Retainer, Manifold
5243431
$14.75
16
Screw
7516736
Unavailable
17
Hose
8450068-04
Unavailable
18
CLAMP-HOSE, 1.750-SS
7080560
$11.19
19
Seal
5411394
$29.99
20
Plug
7051529
$15.99
21
Screw
7516919
Unavailable
22
SCREW
7516732
$1.59
23
Ring, Retaining
7710441
Unavailable
24
Fitting
7052145
$9.59
25
PIN-DOWEL,M8 X 16 SS
7663001
$11.19
26
WASHER, FLAT
7555998
$1.49
26
WASHER, FLAT
7555998
$1.49
27
Valve, Check
7052160
Unavailable
28
Screw
7517319
$19.99
