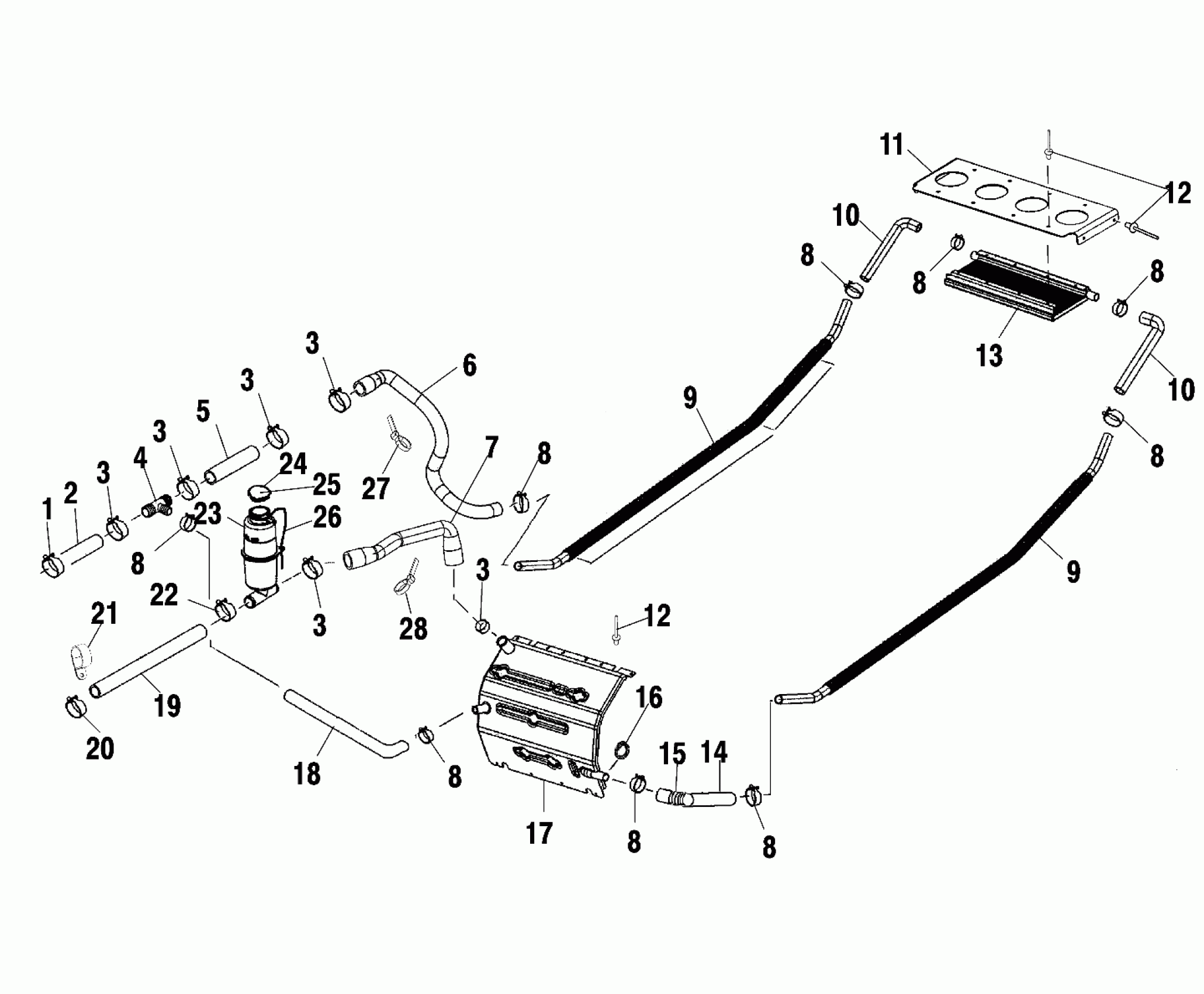

Polaris 800 RMK F/O 151 BUILT AFTER 3/1/01 - S02NL8CS COOLING SYSTEM - S02NL8CS/CSA (4969516951B02) Diagram

#

Description
Price

1

Clamp, Springband

7080843

$3.99

2

Hose, Engine Out/Tee

5412135

$39.67

3

CLAMP, SPRINGBAND

7080844

$10.39

3

CLAMP, SPRINGBAND

7080844

$10.39

3

CLAMP, SPRINGBAND

7080844

$10.39

3

CLAMP, SPRINGBAND

7080844

$10.39

3

CLAMP, SPRINGBAND

7080844

$10.39

3

CLAMP, SPRINGBAND

7080844

$10.39

4

Tee-Connector

7052260

$50.39

5

Hose, Tee/Brake Cooler

5412081

$4.95

6

Hose, Gripper/Brake Cooler

5411946

Unavailable

7

Hose, Cooler/Bottle

5411878

Unavailable

8

CLAMP, SPRINGBAND

7080841

$7.19

8

CLAMP, SPRINGBAND

7080841

$7.19

8

CLAMP, SPRINGBAND

7080841

$7.19

8

CLAMP, SPRINGBAND

7080841

$7.19

8

CLAMP, SPRINGBAND

7080841

$7.19

8

CLAMP, SPRINGBAND

7080841

$7.19

8

CLAMP, SPRINGBAND

7080841

$7.19

8

CLAMP, SPRINGBAND

7080841

$7.19

8

CLAMP, SPRINGBAND

7080841

$7.19

9

Gripper/De-Icer, LH

1240104

$309.99

9

Gripper/De-Icer, RH

1240105

Unavailable

9

Gripper/De-Icer, LH

1240104

$309.99

9

Gripper/De-Icer, RH

1240105

Unavailable

10

Hose, Gripper/Rear Closeoff

5412205

Unavailable

10

Hose, Gripper/Rear Closeoff

5412205

Unavailable

11

Plate, Rear Cooler

5245708

$19.03

12

RIVET-3/16-.090-.290

7661637

$1.49

12

RIVET-3/16-.090-.290

7661637

$1.49

13

Exchanger, Crossover, Rear

1240099

$140.79

14

Hose, Gripper/Center Cooler

5412083

Unavailable

15

Tubing, Convoluted

5521242

Unavailable

16

SPACER-RUBBER

5810291

$3.99

17

Cooler, Center, 3 Outlet

1240114

Unavailable

18

Hose, Center Cooler/Tee

5412082

Unavailable

19

Hose, Tee To Engine

5411855

Unavailable

20

Clamp, Springband

7080845

Unavailable

21

Clamp, Hose

7080951

$13.19

22

CLAMP-HOSE, 1.750-SS

7080560

$11.19

23

Bottle, Coolant

2520195

Unavailable

24

Cap, Pressure

2511270

$24.27

25

Decal, Bottle Cap

7170063

$4.03

26

LINE

8450003-1525

$84.99

27

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

28

Cable Tie

7080804

$3.22
