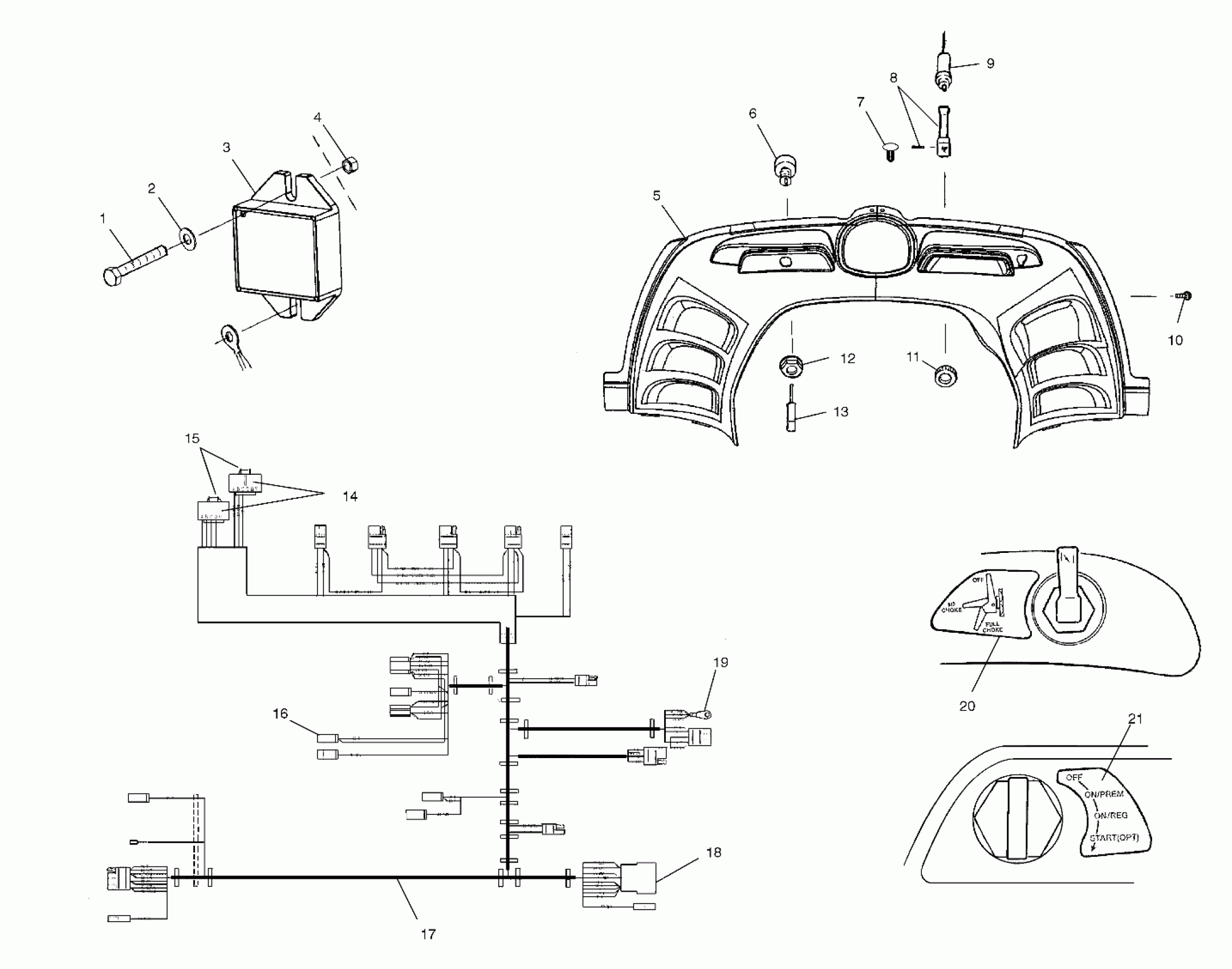

Polaris 800 RMK F/O 151 BUILT AFTER 3/1/01 - S02NL8CS CONSOLE - S02NL8CS/CSA (4969516951A13) Diagram

Screw

7512031

$2.23

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

Regulator, 14.3v

4010301

Unavailable

Nut, Nylok

7541925

$1.49

Console, RMK

5434134

Unavailable

Kit, Ignition Switch, ES, Fuel

2201614

$89.03

CLIP-FIR TREE,DART,6.35MM

7670090

$1.49

Lever, Choke [Incl. Pin]

5432943

Unavailable

Cable, Choke [Incl. 8,11]

7080946

$89.03

Screw

7515199

$1.49

Nut, Choke

5432944

$8.79

Nut, Ignition

7547035

$8.79

Cap w/Key NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot code found o

5410611

Unavailable

Socket

4010192

Unavailable

Housing, Connector

4010193

$8.79

Terminal, Ring

4020092

Unavailable

Harness, Main

2460932

Unavailable

Housing

4020057

$3.51

HOUSING

4020063

$3.19

Decal, Choke

7170061

Unavailable

Decal, Ignition, TPS

7079509

Unavailable
