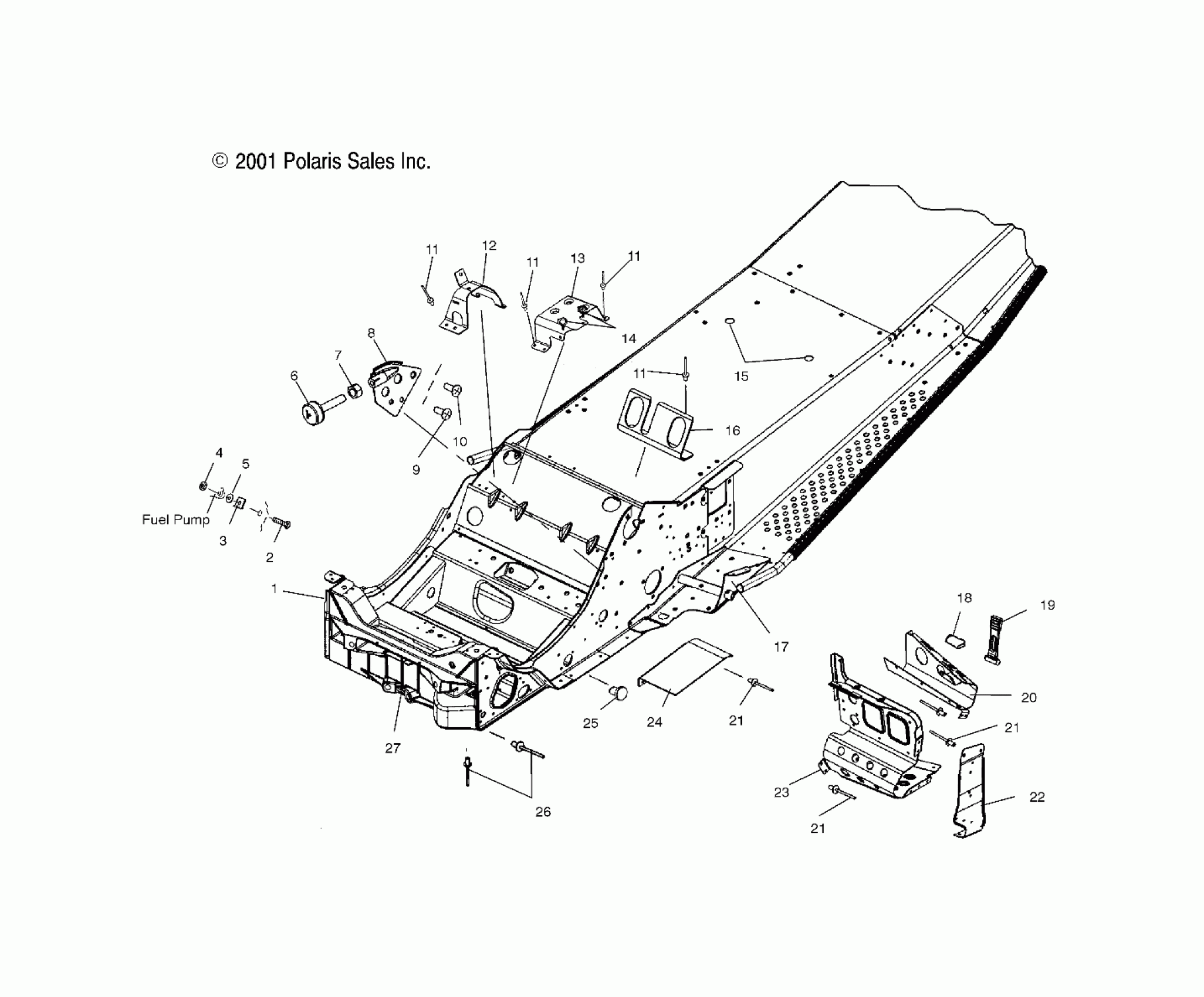

Polaris 800 RMK F/O 151 BUILT AFTER 3/1/01 - S02NL8CS CHASSIS - S02NL8CS/CSA (4969516951A03) Diagram

#

Description
Price

1

Asm., Chassis

1013581-309

$1,269.99

2

Bolt, Carriage

7512275

$3.99

3

Nut, Speed

7670021

$6.99

4

Nut, Nylok

7542122

$1.49

5

Washer, Nylon

7555932

$2.39

6

Stop, Torque

3110078

$36.41

7

NUT

7542404

$1.59

8

Stop, Torque

1013377

$27.19

9

Screw

7517854

$5.59

10

SCREW

7517632

$5.59

11

Rivet

7621432

$1.49

11

Rivet

7621432

$1.49

11

Rivet

7621432

$1.49

11

Rivet

7621432

$1.49

12

Bracket, Jackshaft Shield

5245003

$13.19

13

Bracket, Oil Tank

5245202

$17.43

14

CLIP, ROSEBUD

4020139

$4.79

15

Plug, Cap

7080592

Unavailable

16

Bracket, Air Box

5245725

$18.10

17

Kit, Trailing Arm Support, LH

2202059

$213.00

17

Kit, Trailing Arm Support, RH

2202060

Unavailable

18

EXTRUSION, CLUTCH GUARD

5521238

$6.46

19

STRAP-AIRBOX TOP

5433150

$24.27

20

Mount, Console, Toe Clip, LH

5245457

Unavailable

20

Mount, Console, Toe Clip, RH

5245458

Unavailable

21

RIVET-3/16-.090-.290

7661637

$1.49

21

RIVET-3/16-.090-.290

7661637

$1.49

21

RIVET-3/16-.090-.290

7661637

$1.49

22

Support, Footrest, LH

5242741

$19.68

22

Support, Footrest, RH

5242742

$32.37

23

Footrest, LH

5245288

Unavailable

23

Footrest, RH

5242740

Unavailable

24

Guard, Adapter

5221583

$11.59

25

PLUG, HOLE

7080416

$5.65

26

Rivet

7661639

Unavailable

27

Bulkhead, Front

5132292

$115.99
