- 800 RMK F/O 151 BUILT AFTER 3/1/01 - S02NL8CS
BRAKE - S02NL8CS/CSA (4969516951A14)

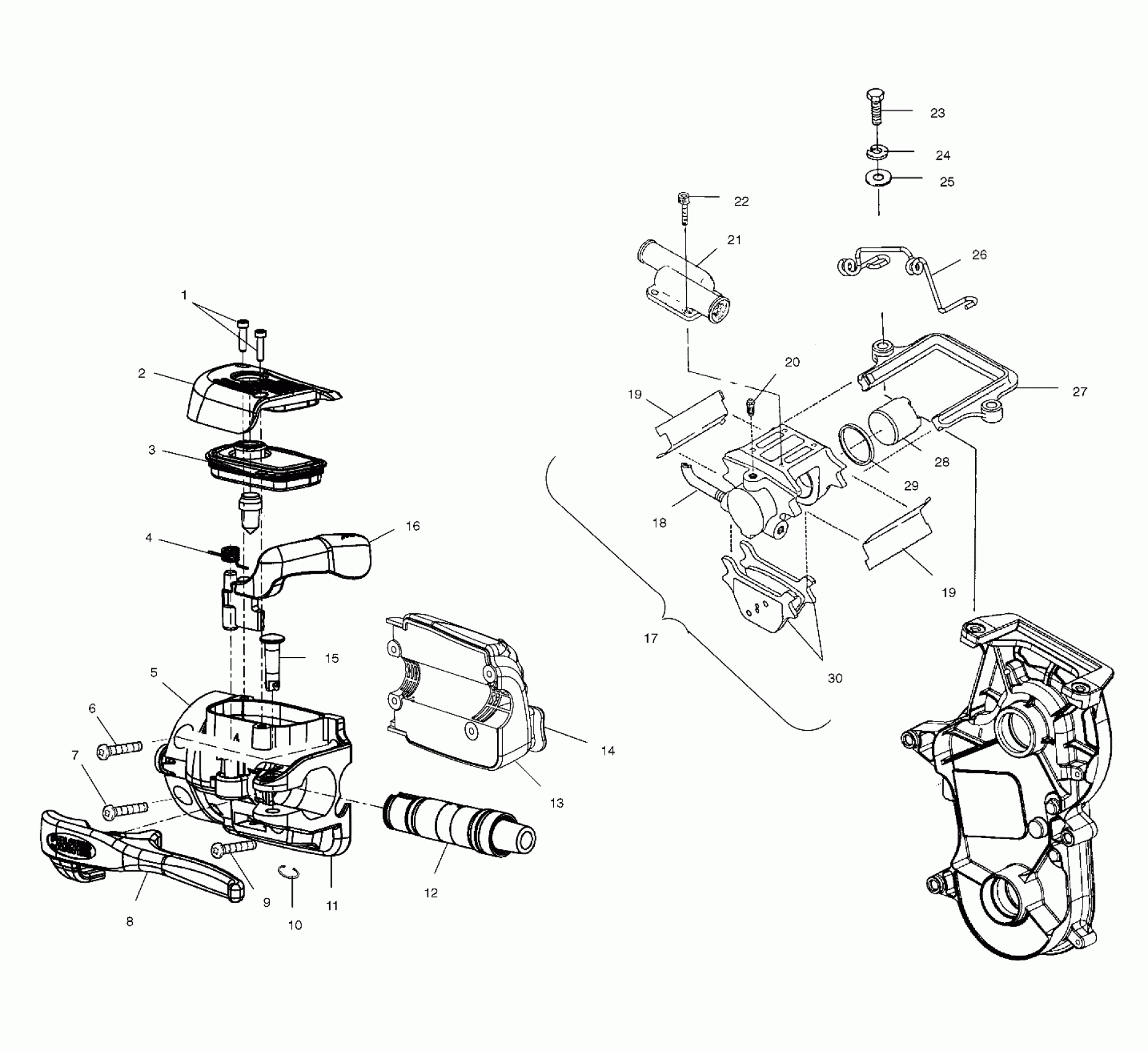

Polaris 800 RMK F/O 151 BUILT AFTER 3/1/01 - S02NL8CS BRAKE - S02NL8CS/CSA (4969516951A14) Diagram
#
Description
Price
1
Kit, Cover Screw
2201254
$19.99
2
Kit, Cover Assembly [Incl. 1,3]
2201255
$89.03
3
GASKET
-------
Unavailable
4
Kit, Park Lever Spring
2201250
$24.27
5
Asm., Master Cylinder [Incl. 2,4,8,11,12,15]
2010209
$304.98
6
Screw
7517441
$2.39
7
Screw
7512078
$1.49
8
Kit, Lever
2201943
$52.60
9
Screw
7517566
$3.99
10
Kit, Snap Ring
2201945
$8.79
11
Switch, Brake Light
4010157
Unavailable
11
Kit, Body, Pivot Pin, Snap Ring
2201948
$304.98
12
Kit, Cartridge Subassembly
2201944
Unavailable
13
Asm., Control, LH
2010167
$93.08
14
Button, Switch, HI/LO, LH Control
5433291
Unavailable
15
Kit, Pivot Pin
2201946
$24.27
16
Kit, Park Lever and Spring [Incl. 4]
2201251
$44.51
17
Asm., Brake Caliper [Incl. 28,29,30]
1910344
Unavailable
18
Line, Brake
1910546
Unavailable
19
Kit, Clip Spring [Qty. 2]
2200467
Unavailable
19
Kit, Clip Spring [Qty. 2]
2200467
Unavailable
20
Inlet
1930735
$9.11
21
Kit, Cooler/Water
1930728
$62.39
21
Kit, Gasket, Brake Cooler
2201024
$7.99
22
Screw [Pkg. of 4]
1930729
$29.49
23
Bolt
7515521
$3.99
24
Washer, Spring Lock
7552603
$1.49
25
Washer, Wrought
7555801
$3.99
26
Guide, Rope
5244413
Unavailable
27
Bracket, Caliper
1930733
Unavailable
28
Piston and Seal [Incl. 29]
1930734
Unavailable
29
Kit, Seal
2200466
$32.37
30
Kit, Heavy Duty Brake Pad, Type 81 [Incl. 19]
2201430
Unavailable
