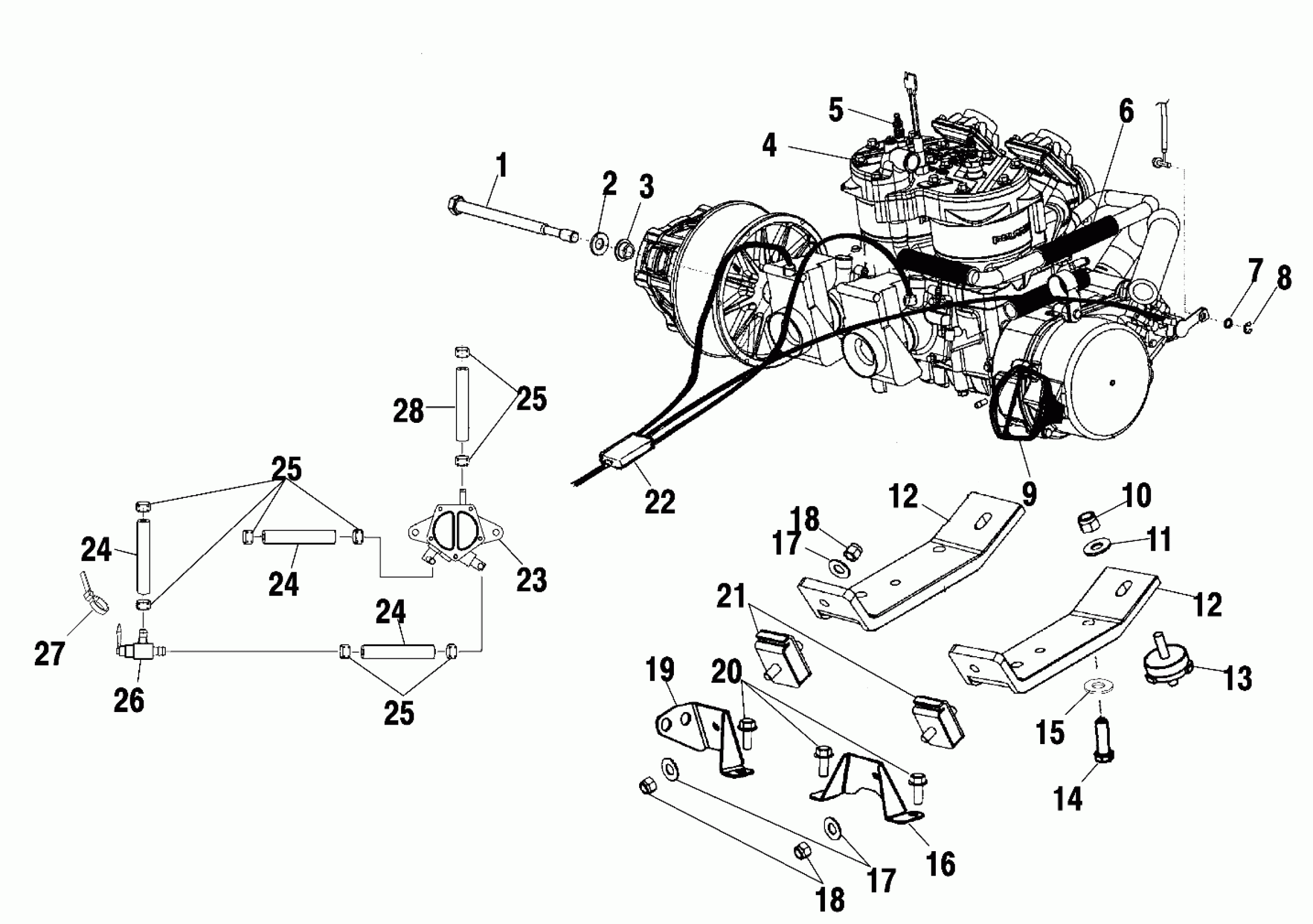

Polaris 800 RMK F/O 144 - S02NK8CS ENGINE MOUNTING - S02NK8CS/CSA (4970597059C04) Diagram

#

Description
Price

1

Screw

7517501

Unavailable

2

WASHER

7556003

$6.39

3

WASHER-CLUTCH RET,M14

5132441

$23.99

4

Engine, Short Block, S807002 NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is required f

2201933

Unavailable

5

Spark Plug, RN57YCC, Champion

3070190

$3.99

6

Conduit

5521398-13

Unavailable

7

Washer, Nylon

7555944

$3.99

8

E-Ring

7710427

Unavailable

9

Handle, Recoil

5431499-070

$15.48

10

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

11

Washer, Flat

7555893

$1.49

12

Strap, Engine Mount, RH

5245475

$41.59

12

Strap, Engine Mount, LH

5245932

$39.67

12

Strap, Engine Mount, RH

5245475

$41.59

12

Strap, Engine Mount, LH

5245932

$39.67

13

Mount, Engine

3021290

Unavailable

14

Screw

7512539

$3.99

15

Washer, Spring Lock

7553101

$3.99

16

Bracket, Engine Mount, RH

5245044

Unavailable

17

Washer, Flat

7555806

$1.49

17

Washer, Flat

7555806

$1.49

18

NUT, FLEXLOC

7547008

$6.39

18

NUT, FLEXLOC

7547008

$6.39

19

Bracket, Engine Mount, LH

1013397

$24.27

20

Screw

7517854

$5.59

21

Mount, Engine

3021206

$60.70

22

Cable, Throttle

7080897

$64.75

23

Pump, Fuel

2520258

Unavailable

24

Line, Fuel

8350017-600

Unavailable

24

Line, Fuel

8350017-600

Unavailable

24

Line, Fuel

8350017-600

Unavailable

25

HOSE CLAMP, RED

7080003

$1.49

25

HOSE CLAMP, RED

7080003

$1.49

25

HOSE CLAMP, RED

7080003

$1.49

26

Valve, Fuel Shut-Off

7052268

Unavailable

27

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

28

Line, Fuel

8450040-600

Unavailable
