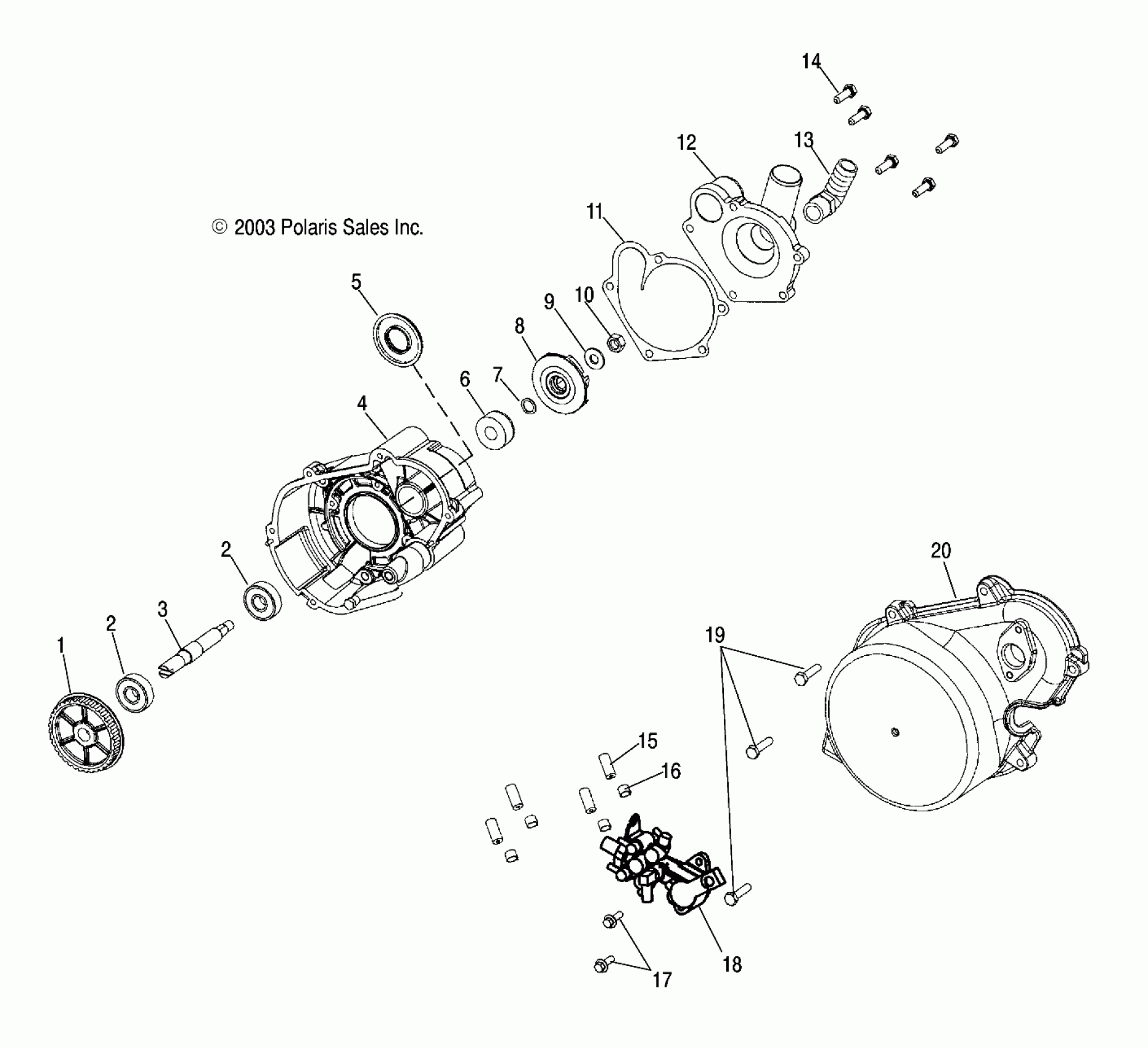

Polaris 800 PRO XR - S04NZ8CS WATER PUMP/OIL PUMP - S04NZ8CS/CSA/CENX6ES (4988798879C11) Diagram

#

Description
Price

1

Pulley, Water Pump, Driven

3021044

$40.46

2

Bearing, Ball

3514311

Unavailable

2

Bearing, Ball

3514311

Unavailable

3

Shaft, Water Pump

5132273

$94.99

4

ASM., HOUSING, IGNITION [SEE MAGNETO PG.C14 REF. 13]

-------

Unavailable

5

Seal

3610044

$24.27

6

Seal, Water Pump

3610067

$44.51

7

Washer, Flat

7556006

$3.99

8

Impeller, Water Pump

5432330

$23.99

9

Washer, Flat

7555874

$2.39

10

Nut, Hex, Nylok

7546804

$1.49

11

Gasket, Water Pump, Cover

5811627

$8.89

12

Cover, Water Pump

5630864

$53.17

13

Fitting, 90 Degree

7052221

Unavailable

14

SCREW

7516822

$2.39

15

LINE, FUEL

8450061-600

Unavailable

16

Clamp

7080603

$1.59

17

Screw

7516607

$10.39

18

Asm., Pump, Oil

2540102

Unavailable

19

Screw

7516823

$3.19

20

HOUSING, RECOIL [SEE RECOIL STARTER PG.D1 REF. 8]

-------

Unavailable
