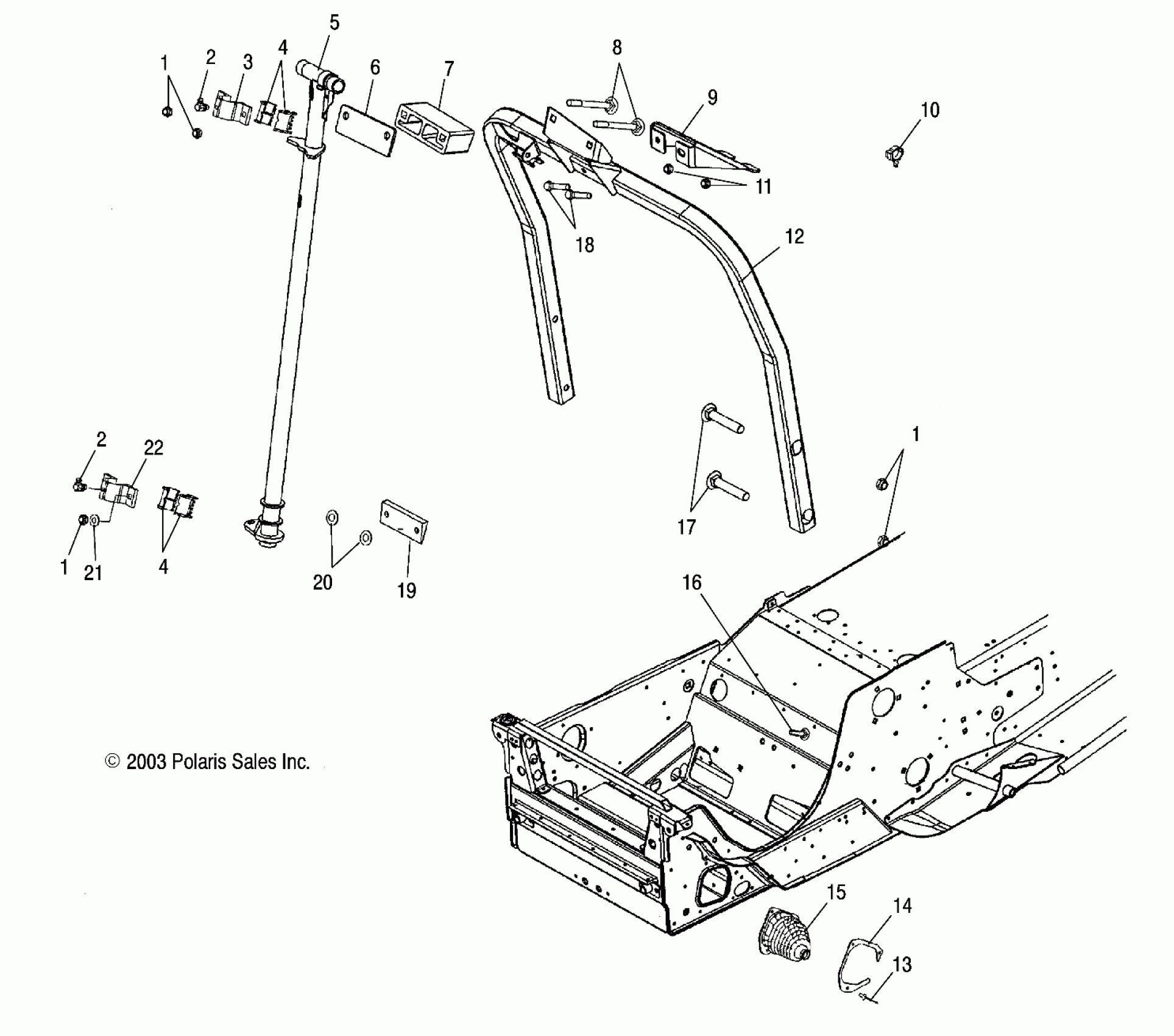

Polaris 800 PRO XR - S04NZ8CS STEERING POST - S04NZ8CS/CSA/CE (4988798879B03) Diagram

#

Description
Price

1

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

1

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

1

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

2

Fitting, 90 Degree

7080510

$5.59

2

Fitting, 90 Degree

7080510

$5.59

3

BRACKET, STEERING POST

5132967

$36.41

4

Bushing

5434775

$6.39

4

Bushing

5434775

$6.39

5

Post, Steering

1821347-067

Unavailable

6

Plate, Steering Hoop

5246698

$10.71

7

Block, Steering Hoop

5133668

$46.08

8

Bolt, Carriage

7518137

$9.59

9

Bracket, Tank Holddown

5247363-067

$37.19

10

CLIP, ROSEBUD

4020139

$4.79

11

Nut, Nylok

7542122

$1.49

12

Hoop, Steering

1014305-067

Unavailable

13

Rivet

7621433

$1.49

14

Plate, Tie Rod Boot

5244470

Unavailable

15

Boot, Tie Rod, LH

5433532

Unavailable

15

Boot, Tie Rod, RH

5433533

Unavailable

16

Bolt, Carriage

7515383

Unavailable

17

Bolt, Carriage

7512377

$4.79

18

SCREW

7512126

$4.79

19

Shim, Steering Post, Lower

5133671

$11.59

20

Nut, Pal

7547030

$4.79

21

Washer, Flat

7555797

$3.99

22

Bracket, Steering Post

5133669

$30.55
