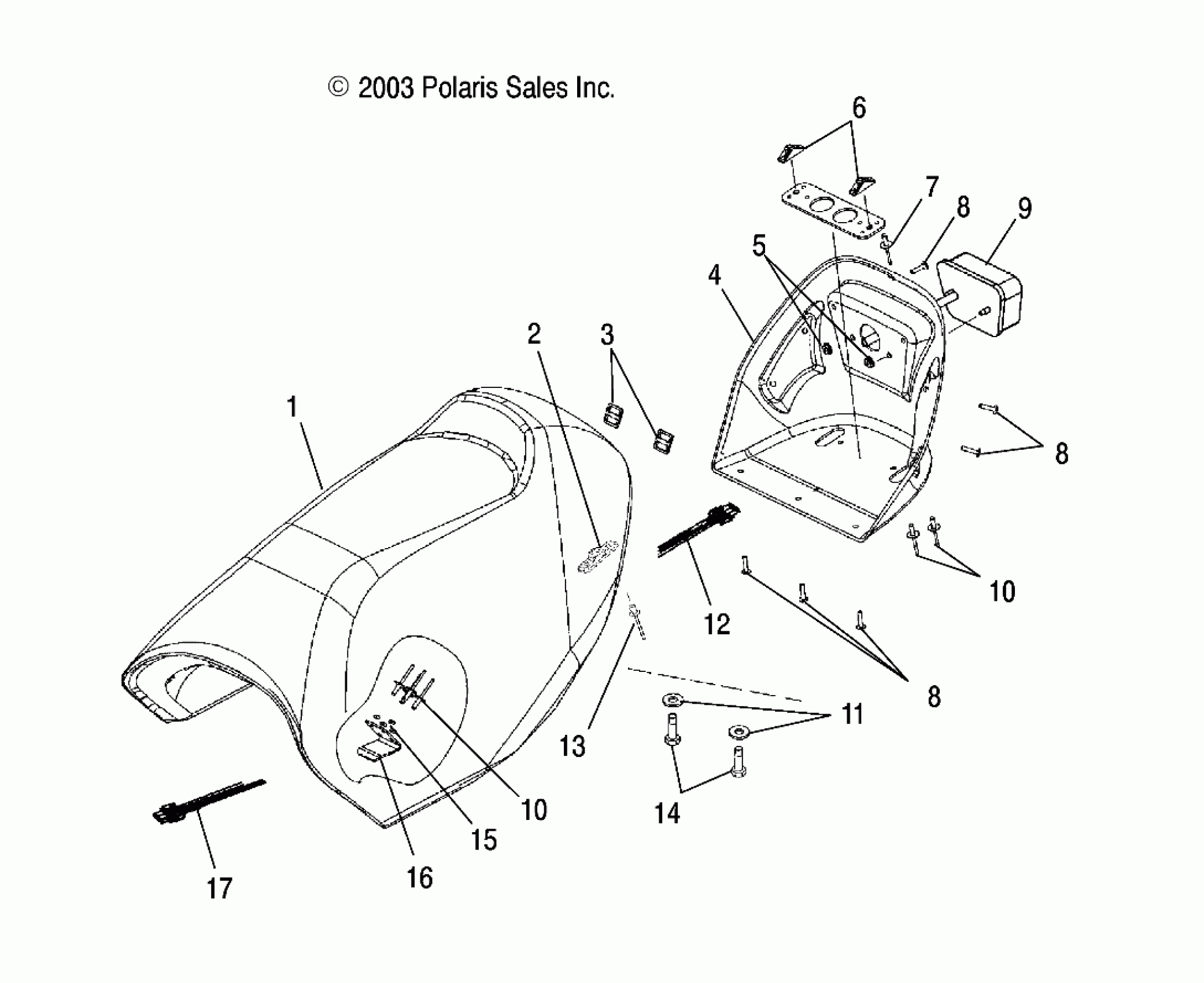

Polaris 800 PRO XR - S04NZ8CS SEAT - S04NZ8CS/CSA/CE (4988798879A05) Diagram

#

Description
Price

1

Asm., Seat, Pro XR

2683373

Unavailable

1

Asm., Seat Cover, Pro XR

2683374

Unavailable

2

NUT, SEAT

5631194

$4.99

3

Slide, 3 Bar

7080270

$1.49

4

Cover, Seat Base, Rear

5434876

$267.99

5

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

6

NUT, SEAT

5631194

$4.99

7

RIVET

7621319

$1.49

8

RIVET

7621485

$1.49

8

RIVET

7621485

$1.49

8

RIVET

7621485

$1.49

9

Gasket, Taillight

4032045

$4.03

9

Lens, Taillight

4032046

$32.37

9

Screw, Taillight

4032029

$4.79

9

Bulb, Taillight

4030043

$6.46

9

Asm., Taillight w/Brake Light

2432034

$55.99

10

RIVET

7621467

$1.49

10

RIVET

7621467

$1.49

11

Washer, Flat

7558221

$2.39

12

Jumper, Taillight, Harness

2461140

$9.11

13

RIVET

7621319

$1.49

14

SCREW

7517219

$4.79

15

Washer

7555904

$1.49

16

Bracket, Seat Base Holddown

5246846

Unavailable

17

Harness, Taillight

2460399

Unavailable
