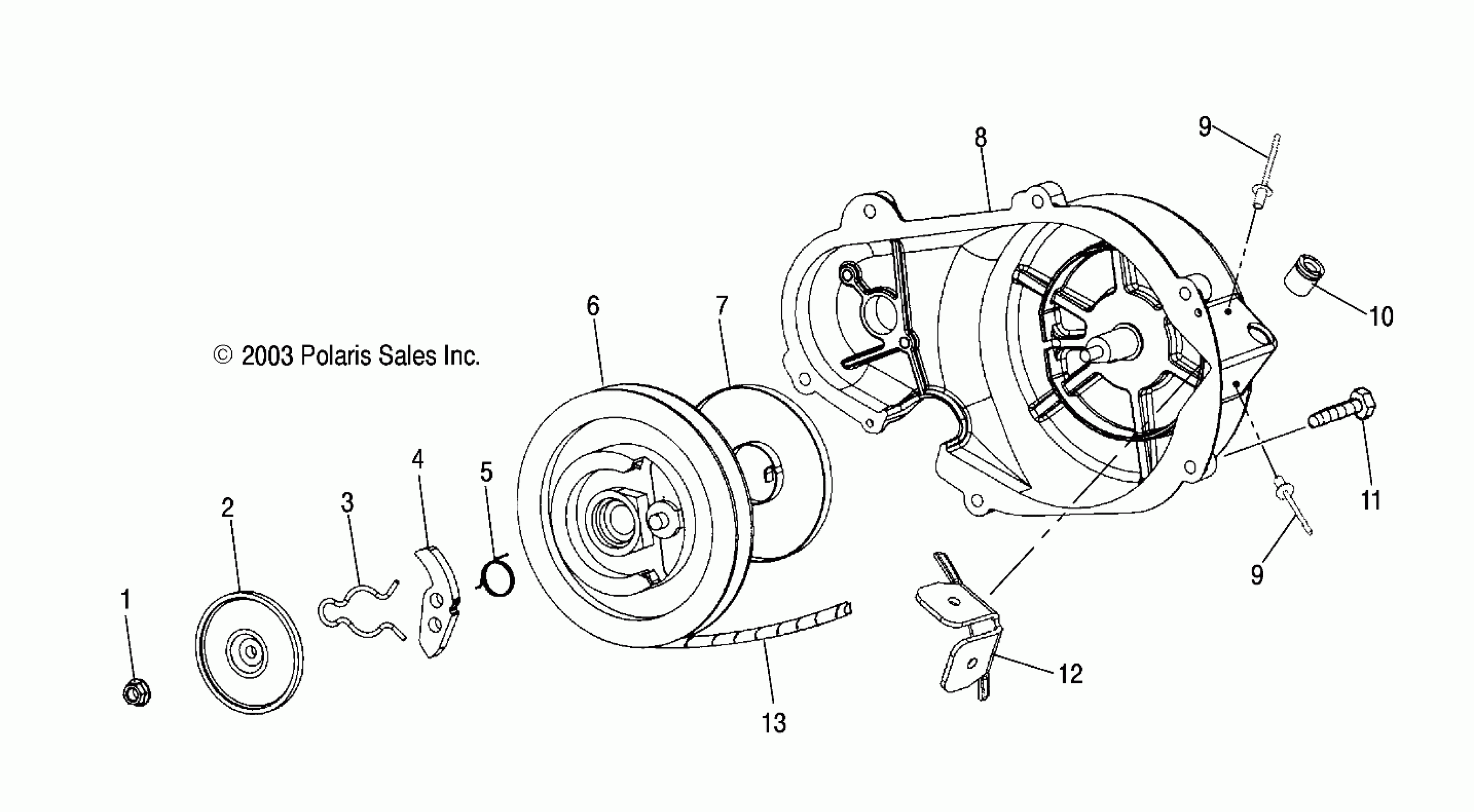

Polaris 800 PRO XR - S04NZ8CS RECOIL STARTER - S04NZ8CS/CSA/CENX6ES (4988798879D01) Diagram

#

Description
Price

-

Asm., Recoil E/R, Shield [Incl. 1-10,13,Starting Pulley]

1202408

Unavailable

1

Nut, Fastening

3040163

Unavailable

2

Plate, Friction

3040164

Unavailable

3

Spring, Friction

3040167

Unavailable

4

Ratchet, Pawl Electric Reverse

5246108

$24.27

5

Spring, Return

3040166

Unavailable

6

Reel

3040168

$44.51

7

Spring, Spiral

3040170

Unavailable

8

Housing, Recoil

3040160

Unavailable

9

Rivet

7661148

$1.27

9

Rivet

7661148

$1.27

10

BUSHING,ROPE SLIDE

3040171

$3.48

11

Screw

7517998

$3.19

12

Shield, Recoil Rope

5246218

$19.83

13

ROPE, STARTER

3040169

$24.27
