Partiron

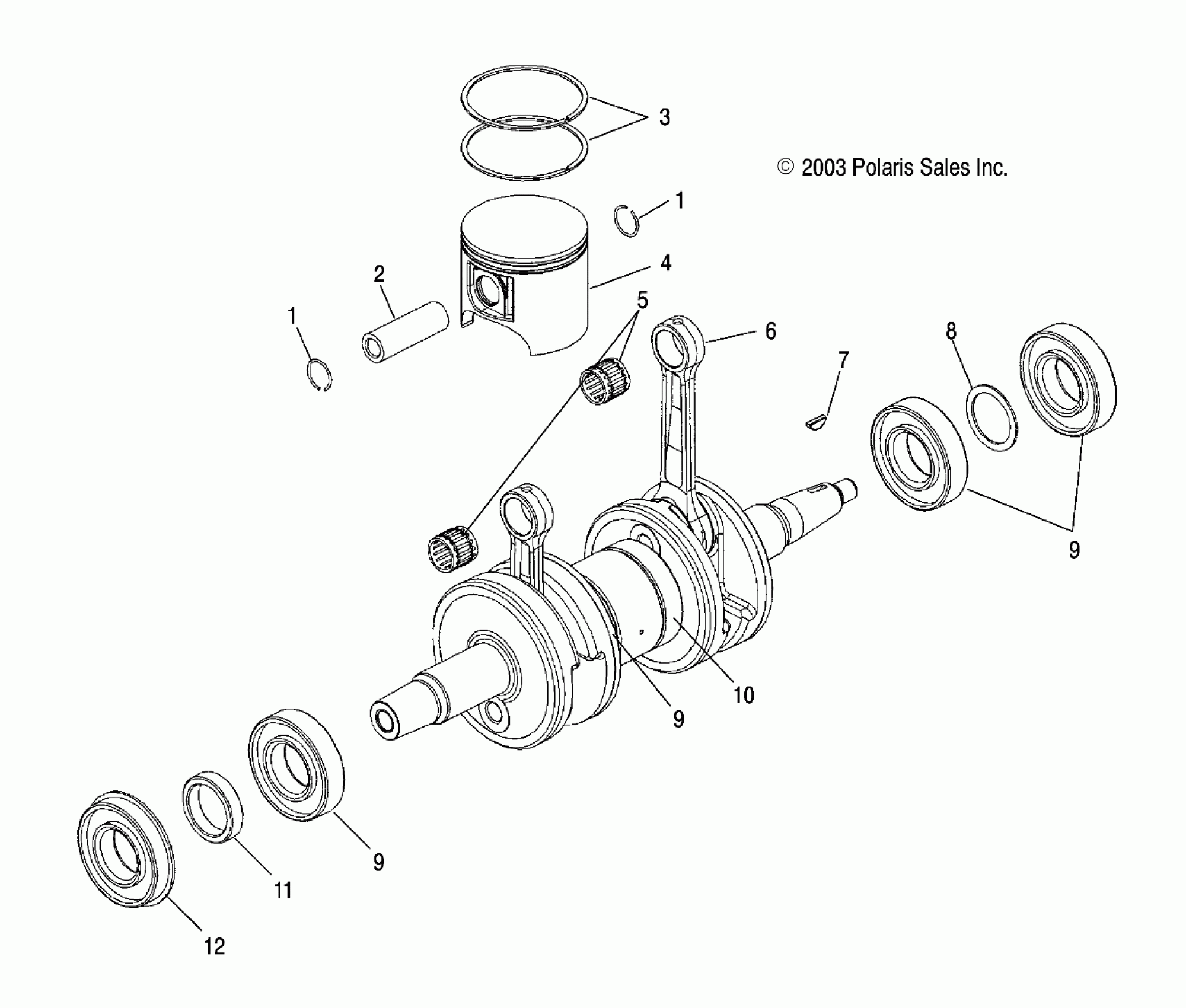

Polaris 800 PRO XR - S04NZ8CS PISTON and CRANKSHAFT - S04NZ8CS/CSA/CENX6ES (4988798879C10) Diagram

#

Description
Price

-

Kit, Crankshaft [Incl. 8-12]

2201842

Unavailable

1

Circlip, Piston

3021179

$8.79

1

Circlip, Piston

3021179

$8.79

2

PIN, PISTON

-------

Unavailable

3

Kit, Piston Rings

2201631

Unavailable

4

Kit, Piston Assembly [Incl. 1,2,3]

2202337

$199.98

5

BEARING

3514357

$23.99

6

Kit, Connecting Rod [Incl. Rod, Pin, Bearing, Washers]

2201557

$307.99

7

KEY, WOODRUFF

7721117

$24.99

8

Bushing

7555905

$3.99

9

Bearing, Ball

3585503

$31.99

9

Bearing, Ball

3585503

$31.99

9

Bearing, Ball

3585503

$31.99

10

BEARING, BALL

3514318

$43.99

11

Spacer, Crankshaft

5131899

Unavailable

12

BEARING, BALL

3514310

$39.99
