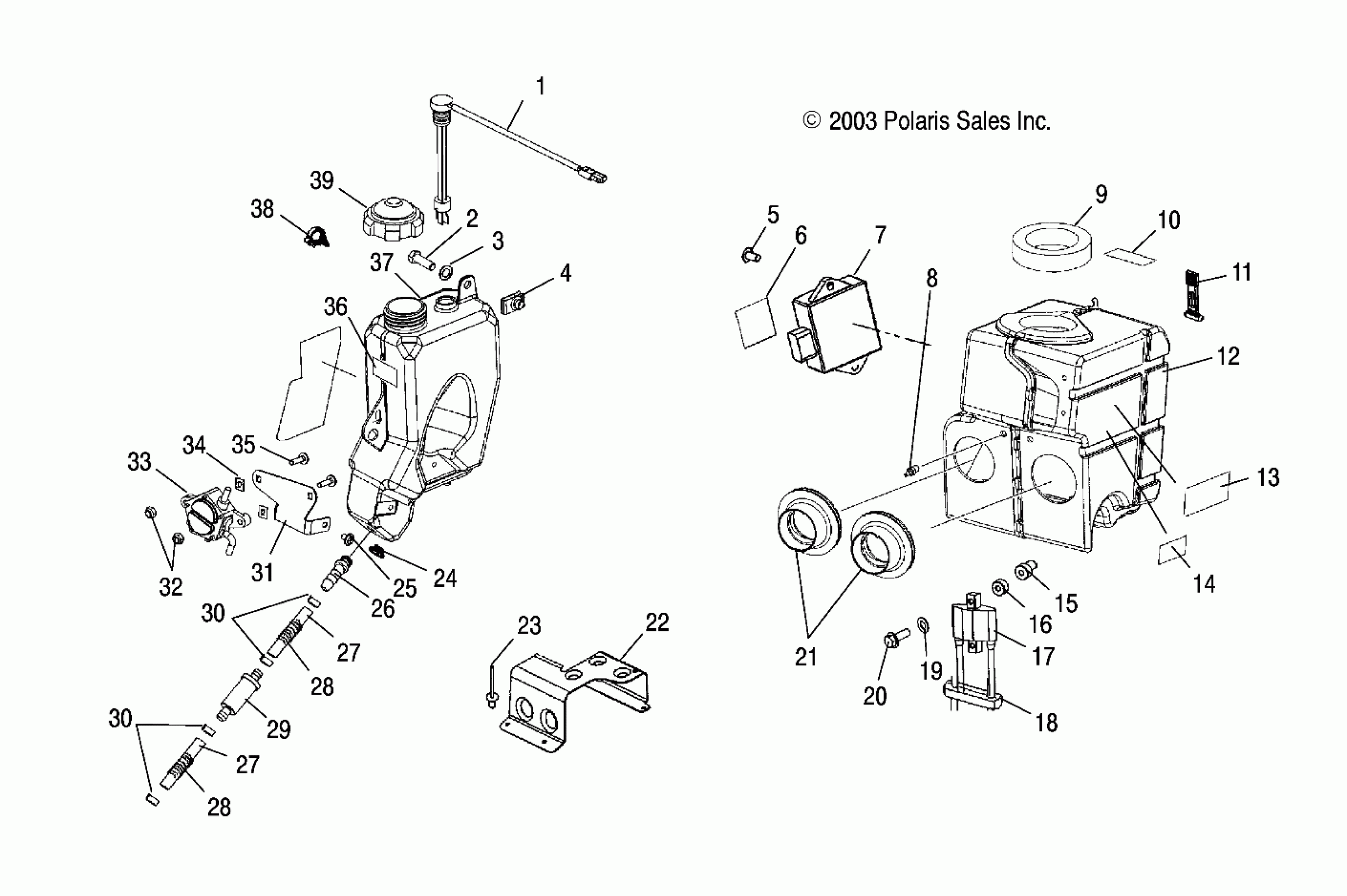

Polaris 800 PRO XR - S04NZ8CS OIL TANK/AIR BOX - S04NZ8CS/CSA/CE (4988798879C05) Diagram

#

Description
Price

1

Sensor, Oil Level

4110134

$72.84

2

Screw

7512276

$4.79

3

Washer, Wrought

7558302

$1.59

4

Nut

7670096

$1.59

5

Screw

7512095

$4.79

6

Decal, DET

7170413

Unavailable

7

KIT, CDI [SEE MAGNETO PG. C14, REF. 19]

-------

Unavailable

8

Fitting

7052077

$6.39

9

Foam, Air Box, Chimney

5811983

$20.22

10

Decal, Caution, Air Box

7075351

Unavailable

11

STRAP-AIRBOX TOP

5433150

$24.27

12

Asm., Air Silencer [Incl. 21 & Decals]

1253511

Unavailable

13

Decal, Belt Removal

7171037

Unavailable

14

Decal, Greasing

7073426

$7.27

15

Nut, Well

7547103

$8.79

16

Washer, Nylon

7555932

$2.39

17

COIL, IGNITION [SEE MAGNETO PG. C14, REF. 17]

-------

Unavailable

18

Clip, Ignition Cable

7080471

$3.59

19

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

20

Screw

7517610

$1.59

21

Boot, Carburetor

5412222

$11.19

22

Bracket, Oil Bottle, Lower

5247394

Unavailable

23

RIVET-3/16-.090-.290

7661637

$1.49

24

GROMMET, FLANGED

7052028

$6.39

25

Screw

7517615

$3.19

26

Fitting

7052207

$8.79

27

HOSE

8450003-1525

Unavailable

27

HOSE

8450003-1525

Unavailable

28

Conduit, Convoluted

4010051-18

Unavailable

28

Conduit, Convoluted

4010051-18

Unavailable

29

FILTER

2530009

$5.65

30

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

30

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

31

Bracket, Fuel Pump

5247398

$17.43

32

Nut, Nylok

7542122

$1.49

33

PUMP, FUEL [SEE GAS TANK PG. A4, REF. 8]

-------

Unavailable

34

Nut, Speed

7670021

$6.99

35

Bolt, Carriage

7512263

$3.99

36

Decal, Oil, VES

7079003

Unavailable

37

Foil, Oil Tank

5811934

Unavailable

37

Asm., Oil Tank w/Foil

1253352

Unavailable

38

CLIP, ROSEBUD

4020139

$4.79

39

Cap, Oil, Vented

1240094

$36.41
