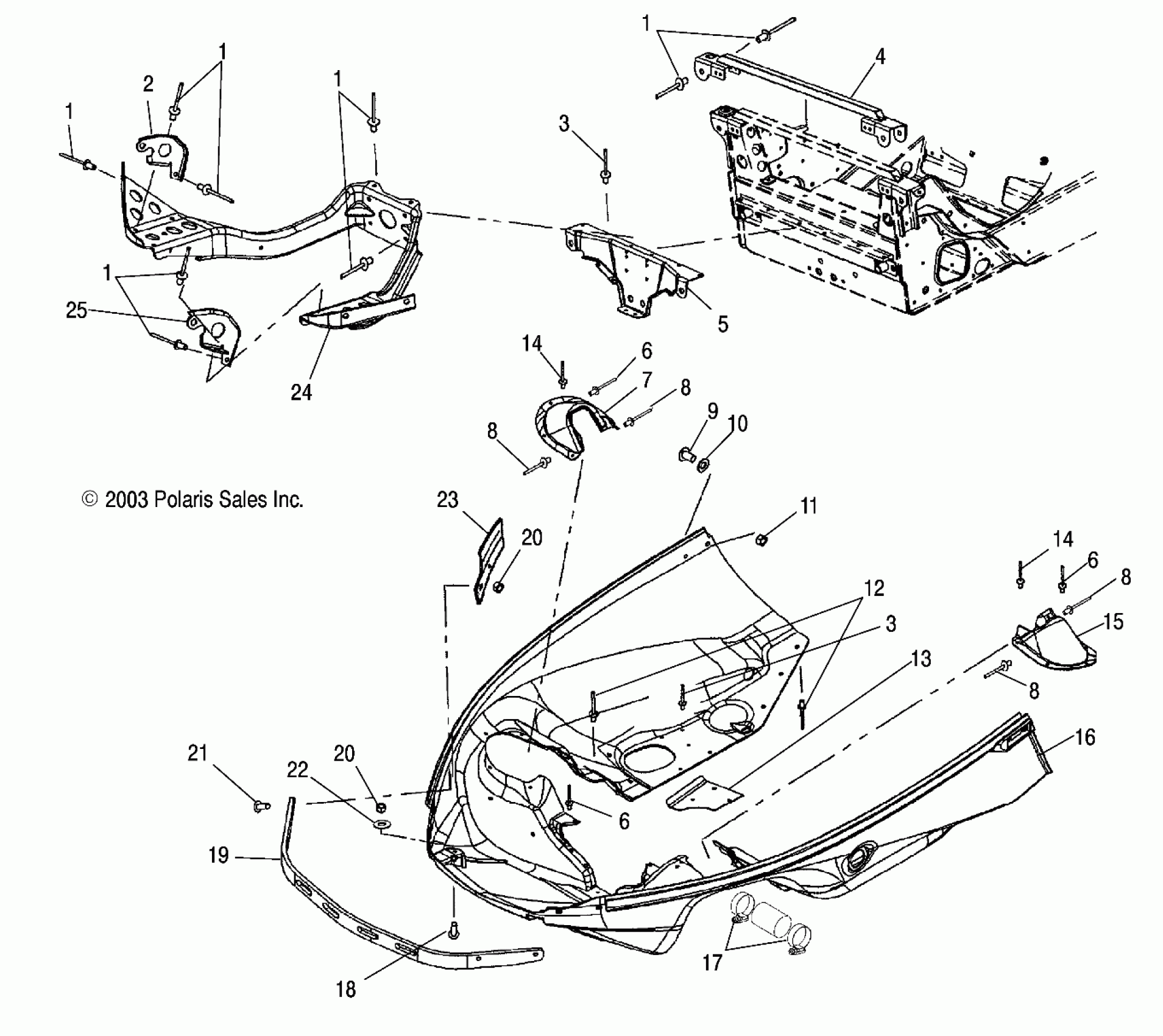

Polaris 800 PRO XR - S04NZ8CS NOSEPAN - S04NZ8CS/CSA/CE (4988798879A06) Diagram

#

Description
Price

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

2

Hinge, Pivot, Lower, RH

5243992-067

$104.99

3

RIVET

7621472

$1.49

3

RIVET

7621472

$1.49

4

Brace, Cross

1013719-067

$34.71

5

Bracket, Radius Rod Support

5245740-067

$164.79

6

RIVET

7621418

$1.49

6

RIVET

7621418

$1.49

6

RIVET

7621418

$1.49

7

Foil

5812041

Unavailable

7

Cover, Shock Tower, RH

5434714

Unavailable

7

Foil, Tape

5812068

Unavailable

8

RIVET

7621431

$1.49

8

RIVET

7621431

$1.49

8

RIVET

7621431

$1.49

8

RIVET

7621431

$1.49

9

Screw

7515166

$3.19

10

WASHER

7555827

$3.99

11

Nut, Nylok

7542122

$1.49

12

RIVET

7621467

$1.49

13

Shield, Heat Exhaust, Extended

5245853

$11.59

14

RIVET

7621479

$1.99

14

RIVET

7621479

$1.99

15

Cover, Shock Tower, LH

5434713

$5.75

16

Nosepan

5434737-453

$337.30

17

CLAMP-HOSE, 1.750-SS

7080560

$11.19

18

Screw

7512297

$5.59

19

Bumper, Front

5246026

Unavailable

20

NUT, NYLOK

7542153

$1.59

20

NUT, NYLOK

7542153

$1.59

21

Screw

7515175

$3.99

22

WASHER, SPRING LOCK

7552801

$1.59

23

Guide, Hood, LH

5244888

Unavailable

23

Guide, Hood, RH

5244889

Unavailable

24

Brace, Pan, Lower

5244050

$137.60

25

Hinge, Pivot, Lower, LH

5243991-067

$104.99
