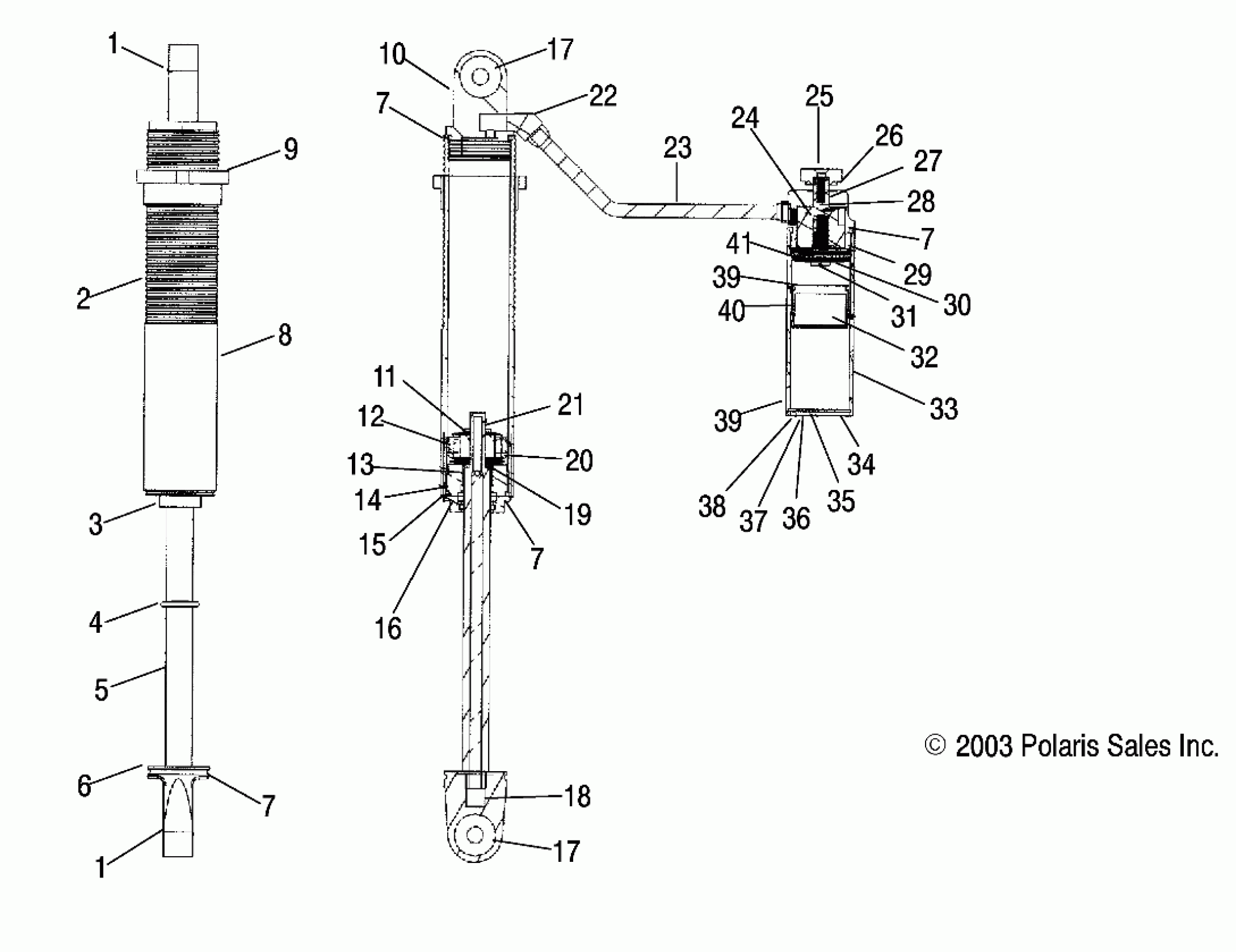

Polaris 800 PRO XR - S04NZ8CS IFS SHOCK - S04NZ8CS/CSA/CE (4988798879C02) Diagram

#

Description
Price

-

Shock, IFS

7042280

Unavailable

1

RING, SNAP, END BEARING

1800041

$7.27

1

RING, SNAP, END BEARING

1800041

$7.27

2

Body, Threaded, IFS

1800100

$87.30

3

Asm., Shaft Seal Housing

1800131

Unavailable

4

O-RING

1800095

$1.49

5

Shaft

1800102

Unavailable

6

SPRING, RETAINING RING

1800116

$60.70

7

O-RING

1800027

$2.02

7

O-RING

1800027

$2.02

7

O-RING

1800027

$2.02

7

O-RING

1800027

$2.02

8

Sleeve, Wear

1800191

Unavailable

9

RETAINER, SPRING

1800046

$36.41

10

Body, Loop

1800098

Unavailable

11

WASHER

1800050

$3.99

12

Asm., Piston w/Band, .076 Gold

1800197

$82.39

13

BUSHING, SHAFT

1800038

$12.79

14

O-Ring Shaft Seal Head

1800037

$1.60

15

Shaft Seal U-Cup

1800035

Unavailable

16

WIPER, D-TYPE

1800034

$31.99

17

BEARING, END

1800040

$94.99

17

BEARING, END

1800040

$94.99

18

Eyelet, Shaft

1800103

Unavailable

19

Washer

1800194

$3.02

20

Band, Wear

1800026

Unavailable

21

Nut

1800031

$3.99

22

Fitting

1800193

$40.39

23

Hose

1800192

$91.99

24

Drum

1800195

$107.99

25

SCREW

1800196

$3.99

25

Knob

1800123

Unavailable

26

BALL, D-TENT

1800127

$6.39

26

SPRING-COMP .025X.3, 40.5#

1800128

$10.39

26

Housing, Adjustor

1800126

$91.19

26

O-Ring

1800129

Unavailable

27

O-Ring

1800094

$1.49

28

Valve, Shim

1800052

Unavailable

29

Ball, Check

1800125

$0.95

30

Valve, Shim

1800072

Unavailable

31

Bolt, Ball Check

1800124

$9.51

32

Band, Wear

1800029

Unavailable

33

Body, Reservoir

1800120

$89.03

34

RING, SNAP, RESERVOIR

1800019

$6.46

35

Valve, Needle

1800107

$16.35

36

O-Ring

1800108

$1.49

37

Screw

1800109

$3.19

38

End, Cap

1800106

Unavailable

39

Reservoir, O-Ring

1800028

$1.60

39

Reservoir, O-Ring

1800028

$1.60

40

Piston, Reservoir w/Bleed Screw

1800189

$45.59

40

O-Ring w/Bleed Screw

1800190

$1.67

41

Washer

1800118

$3.59
