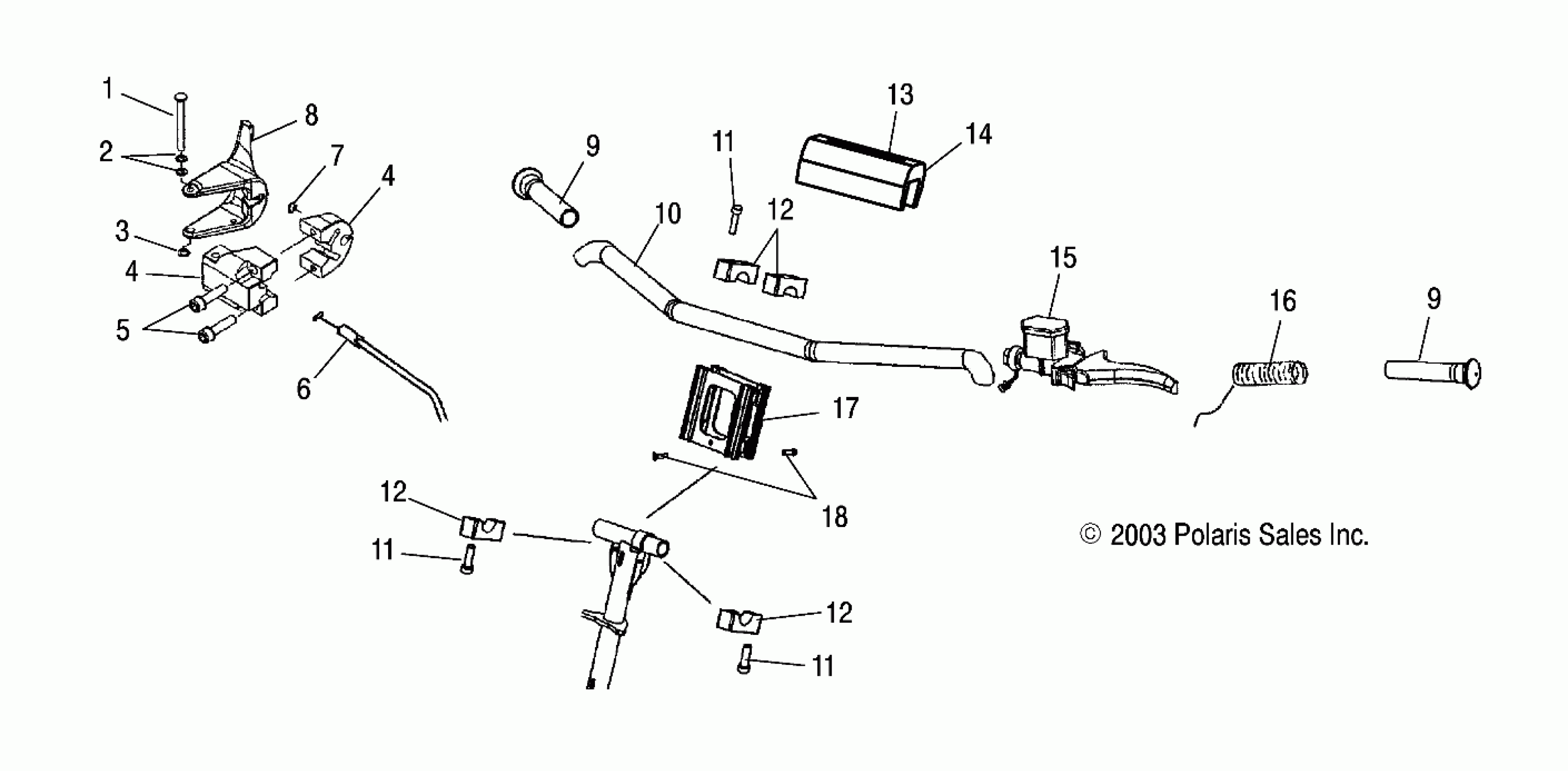

Polaris 800 PRO XR - S04NZ8CS HANDLEBAR - S04NZ8CS/CSA/CE (4988798879B04) Diagram

#

Description
Price

1

PIN-RETAINING .186X1.780-AL

7661624

$12.79

2

WASHER

7555730

$3.99

3

RING-RETAINING EXTERNAL

7710401

$3.99

4

BLOCK, THROTTLE, REAR

5133636

$84.98

4

BLOCK, THROTTLE, FRONT

5133639

$89.03

4

BLOCK, THROTTLE, REAR

5133636

$84.98

4

BLOCK, THROTTLE, FRONT

5133639

$89.03

5

SCREW

7512290

$4.79

6

Cable, Throttle

7081051

$64.75

7

RET.RING-INDUSTRIAL(2000-25)-Z

7710503

$3.99

8

LEVER, THROTTLE

5432970

$29.03

8

Lever Heater, HI/LO

2010171

$84.98

8

Asm., Throttle Control

2010220

Unavailable

9

Grip, Handlebar

5412306

Unavailable

9

Grip, Handlebar

5412306

Unavailable

10

Handlebar w/Hooks

5247074-067

$169.99

11

Screw

7518004

$2.63

11

Screw

7518004

$2.63

11

Screw

7518004

$2.63

12

Clamp, Handlebar

5133297

$12.70

12

Clamp, Handlebar

5133297

$12.70

12

Clamp, Handlebar

5133297

$12.70

13

Asm., Cover, Handlebar

2683382

$80.94

14

Pad, Handlebar, Race

5812322

$49.99

15

ASM., MASTER CYLINDER [SEE BRAKE PG. B2]

-------

Unavailable

16

Heater, Grip, HI/LO

2460311

$56.65

17

Switch, Dimmer

4110107

$60.70

18

Block, Riser, HB, Race

5133287

Unavailable
