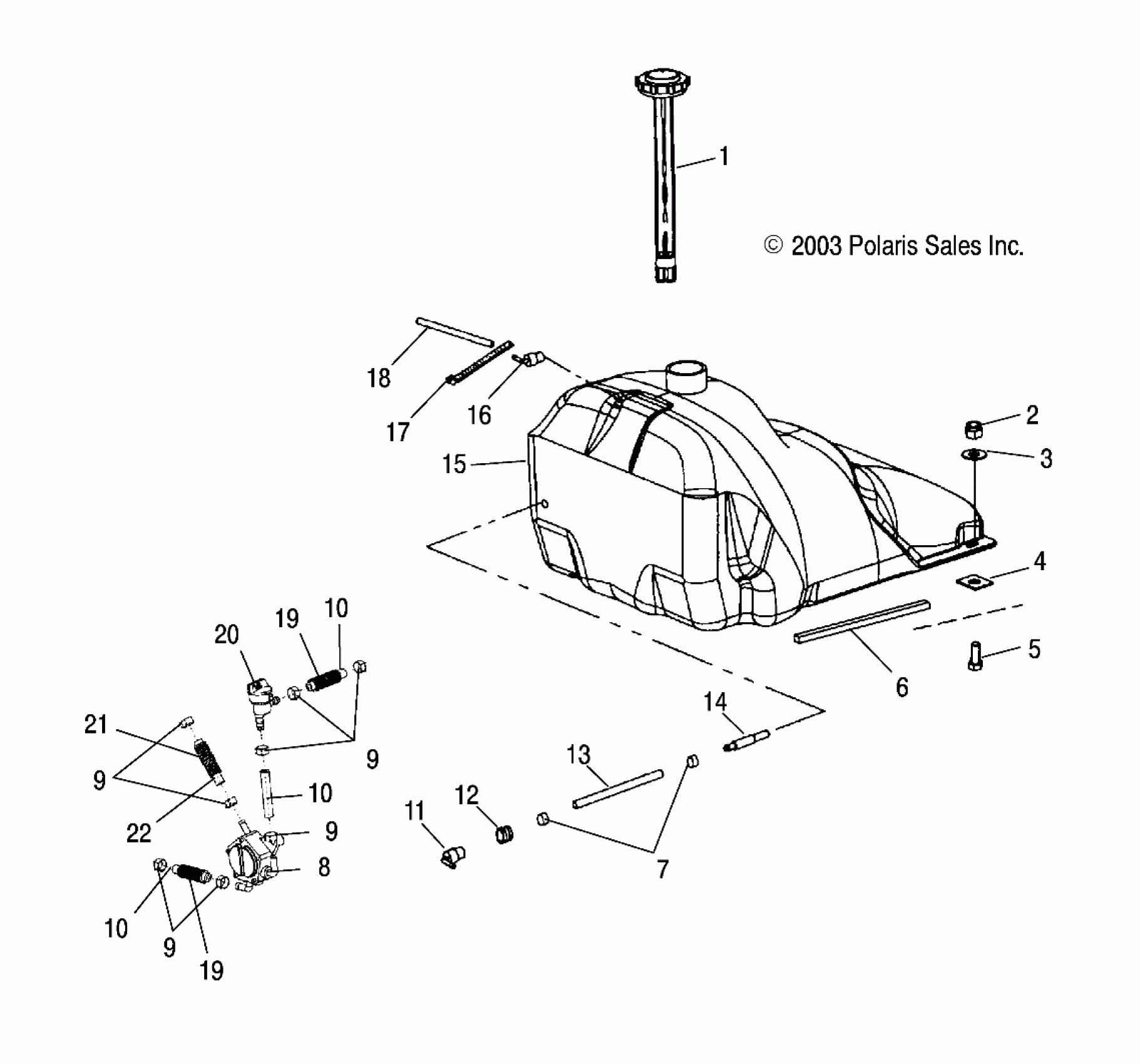

Polaris 800 PRO XR - S04NZ8CS GAS TANK - S04NZ8CS/CSA/CE (4988798879A04) Diagram

#

Description
Price

1

Cap, Fuel

2520323

Unavailable

2

Nut, Nylok

7542122

$1.49

3

WASHER, FLAT

7555960

$3.99

4

Nut, Speed

7670021

$6.99

5

BOLT, CARRIAGE

7512193

$2.39

6

FOAM-SEAL,REAR COOLER

5810947

$4.03

7

RING, COMPRESSION

7080768

$4.84

8

Pump, Fuel

2520290

Unavailable

9

HOSE CLAMP, RED

7080003

$1.49

9

HOSE CLAMP, RED

7080003

$1.49

9

HOSE CLAMP, RED

7080003

$1.49

9

HOSE CLAMP, RED

7080003

$1.49

10

Line, Fuel

8350017-600

Unavailable

10

Line, Fuel

8350017-600

Unavailable

10

Line, Fuel

8350017-600

Unavailable

11

Fitting

7052269

$24.99

12

Grommet, Fitting, Flanged

5432981

$6.94

13

Line, Fuel

8350020-600

Unavailable

14

Pickup Fuel, w/Mesh

7052215

$49.99

15

Asm., Fuel Tank, [Incl. 14-16]

2520357

$191.99

16

Fitting

7052095

$4.79

17

CABLE TIE, RELEASABLE

7080804

$3.22

18

Line

8450061-600

Unavailable

19

Tubing, Convoluted

8360052-15

Unavailable

19

Tubing, Convoluted

8360052-15

Unavailable

20

Asm., Fuel Valve

1253424

$44.99

21

TUBING, CONVOLUTED

8360052-25

Unavailable

22

Line, Fuel

8450040-600

Unavailable
