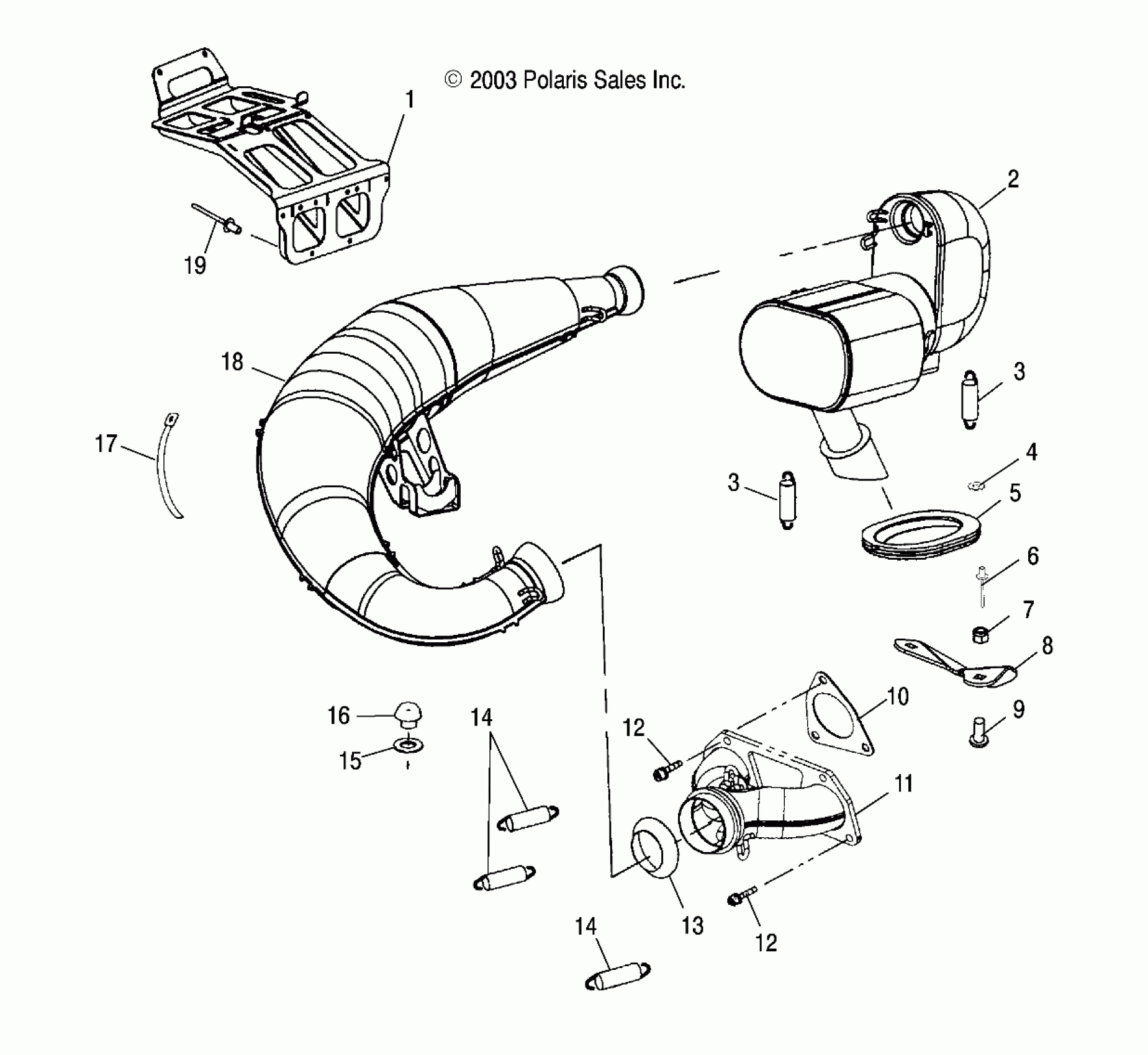

Polaris 800 PRO XR - S04NZ8CS EXHAUST - S04NZ8CS/CSA/CE (4988798879C06) Diagram

#

Description
Price

1

Bracket, Chassis/Resonator

1261174-029

$113.99

2

Resonator

1261177-029

Unavailable

3

SPRING-EXHAUST

7041687

$5.65

3

SPRING-EXHAUST

7041687

$5.65

4

Washer

7555904

$1.49

5

Boot, Exhaust, Outlet

5411684

Unavailable

6

RIVET

7621467

$1.49

7

Nut, Flange

7542321

$1.49

8

Deflector, Snow, Exhaust

5243929

$24.27

9

Bolt, Carriage

7512377

$4.79

10

Gasket, Exhaust

5811799

Unavailable

11

Manifold

1261218-029

Unavailable

12

Screw

7517322

$2.39

12

Screw

7517322

$2.39

13

SEAL, EXHAUST, SOCKET

3610046

$36.41

14

Spring, Exhaust

7042332

$4.84

14

Spring, Exhaust

7042332

$4.84

15

WASHER

7556004

$7.19

16

Dampener, Vibration w/Ribs

5411576

$7.99

17

Clamp [.44 x 3.69]

7080740

$13.19

17

Clamp [.44 x 4.25]

7080741

$19.99

17

Clamp [.44 x 6.38]

7080742

$15.03

18

Cover, Tuned Pipe, Top

5245929

$70.39

18

Matte, Sound, Top

5830215

$73.81

18

Cover, Tuned Pipe, Bottom

5246321

$49.59

18

Matte, Sound, Bottom

5830233

$66.39

18

Asm., Tuned Pipe

1261214-380

Unavailable

19

Rivet

7661169

Unavailable
