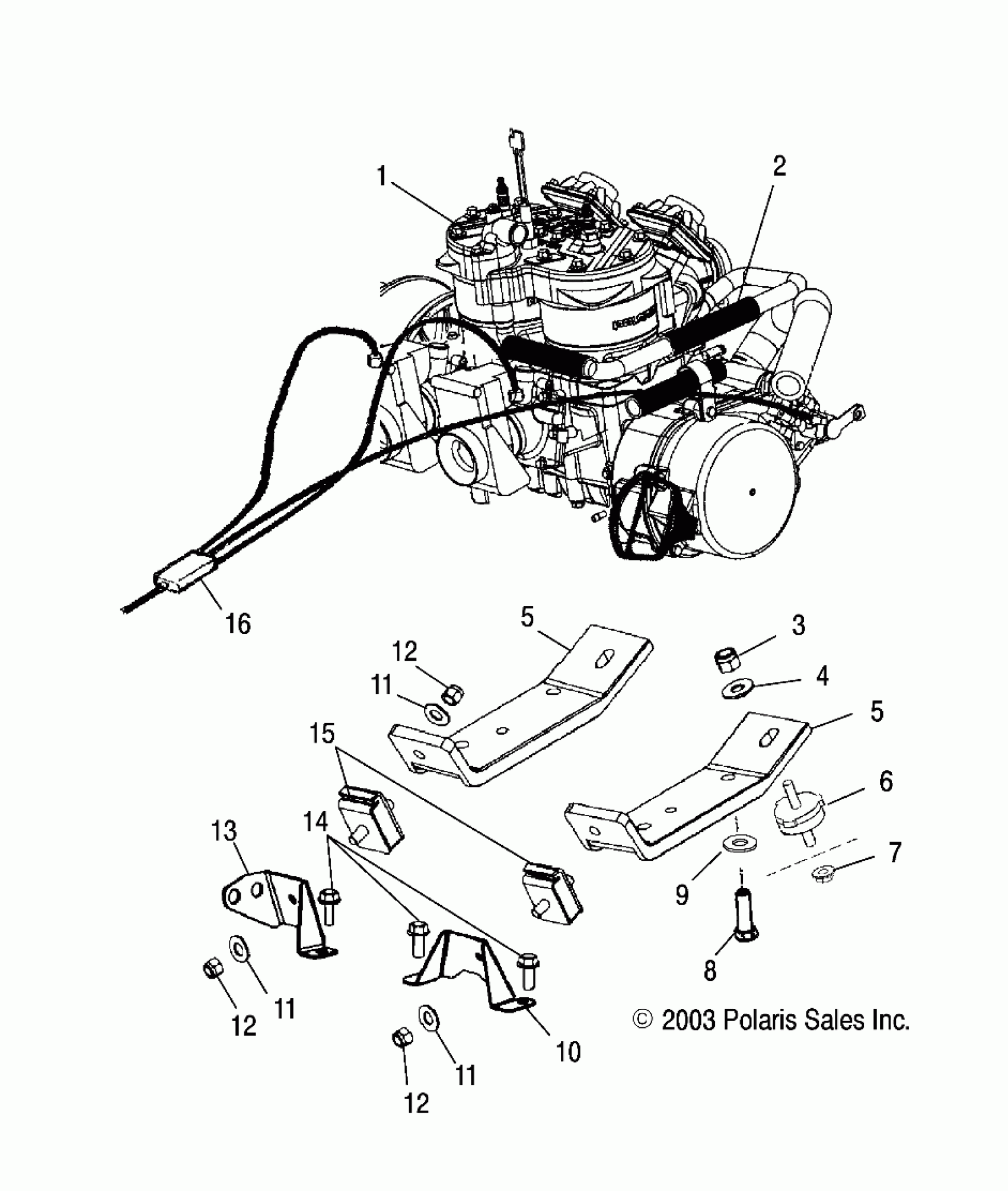

Polaris 800 PRO XR - S04NZ8CS ENGINE MOUNTING - S04NZ8CS/CSA/CE (4988798879C07) Diagram

Kit, Short Block, S807003 NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is required for

2202517

Unavailable

Conduit

5521398-13

Unavailable

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

Washer, Flat

7555893

$1.49

Strap, Engine Mount, LH

5246235

$70.39

Strap, Engine Mount, RH

5246236

$84.98

Strap, Engine Mount, LH

5246235

$70.39

Strap, Engine Mount, RH

5246236

$84.98

Mount, Engine

3021220

Unavailable

NUT, FLANGED

7547180

$2.39

Screw

7512539

$3.99

Washer, Spring Lock

7553101

$3.99

Bracket, Engine Mount, RH

5245044

Unavailable

Washer, Flat

7555806

$1.49

Washer, Flat

7555806

$1.49

Washer, Flat

7555806

$1.49

NUT, FLEXLOC

7547008

$6.39

NUT, FLEXLOC

7547008

$6.39

NUT, FLEXLOC

7547008

$6.39

Bracket, Engine Mount, LH

1013397

$24.27

Screw

7517854

$5.59

Mount, Engine

3021206

$60.70

CABLE, THROTTLE [SEE HANDLEBAR PG. B4, REF. 6]

-------

Unavailable
