Description

Price

-

Asm., Drive Clutch, Basic 108 [Incl. All Less 5,11]

1321880

Unavailable

-

Kit, Wide Roller Spider Rebuild (Incl. 6-10,12)

2202376

$238.79

1

Bolt

7512265

$3.99

2

WASHER, SPRING LOCK

7552801

$1.59

3

BEARING COVER GARMAX

3514347

$36.41

4

RING-RETAINING,COVER

7710417

$1.49

5

SPRING, CLUTCH, BLACK/GREEN

7042083

$56.65

6

Button, Guide

5434188

$12.79

6

Button, Guide

5434188

$12.79

7

WASHER,MULTILUBE

5430945

$1.59

8

ASM-ROLLER AND BUSHING

1321622

$32.37

9

Pin, Roller

5133054

Unavailable

10

Kit - Shim, Drive Clutch

2200387

$24.27

11

ASM., WEIGHT/BUSHING, 10-64

1321585

$40.46

12

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

13

Bearing, Sleeve

3576502

$23.99

14

INSERT-MOVEABLE

5010188

$7.99

15

Spacer [.050]

5210754

Unavailable

15

Spacer [.025]

5242981

Unavailable

15

Spacer [.020]

5210752

Unavailable

15

Spacer [.032]

5210753

Unavailable

16

NUT, FLEXLOC

7541906

$3.19

17

NUT-JAM

5020425

$23.99

18

Screw

7517507

$23.99

19

WASHER

7556003

$6.39

20

WASHER-CLUTCH RET,M14

5132441

$23.99

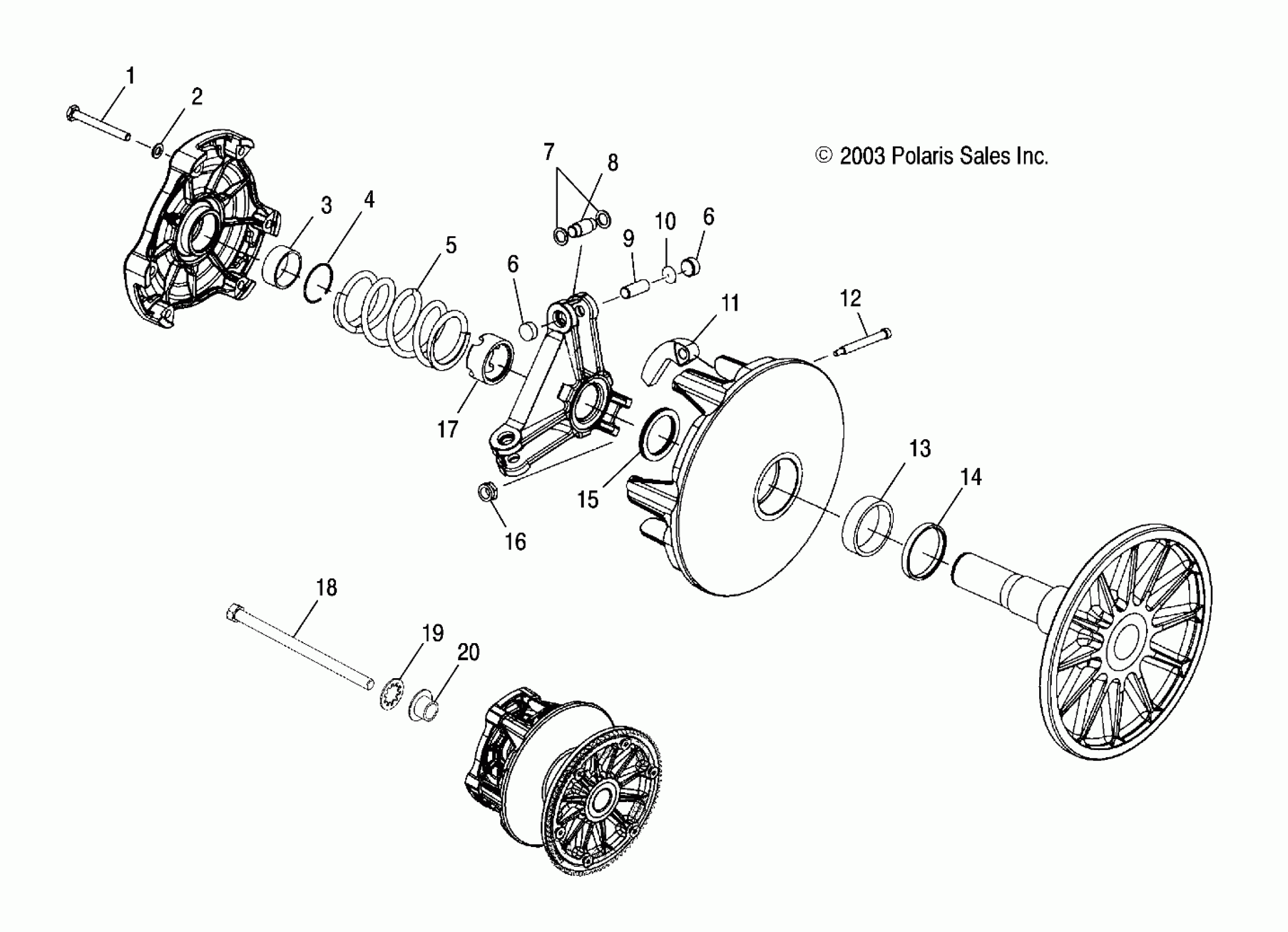

Polaris 800 PRO XR - S04NZ8CS DRIVE CLUTCH - S04NZ8CS/CSA/CE (4988798879B14) Diagram

Asm., Drive Clutch, Basic 108 [Incl. All Less 5,11]

Kit, Wide Roller Spider Rebuild (Incl. 6-10,12)

Bolt

WASHER, SPRING LOCK

BEARING COVER GARMAX

RING-RETAINING,COVER

SPRING, CLUTCH, BLACK/GREEN

Button, Guide

Button, Guide

WASHER,MULTILUBE

ASM-ROLLER AND BUSHING

Pin, Roller

Kit - Shim, Drive Clutch

ASM., WEIGHT/BUSHING, 10-64

PIN-WEIGHT,HARDENED,1/4X2.00

Bearing, Sleeve

INSERT-MOVEABLE

Spacer [.050]

Spacer [.025]

Spacer [.020]

Spacer [.032]

NUT, FLEXLOC

NUT-JAM

Screw

WASHER

WASHER-CLUTCH RET,M14
