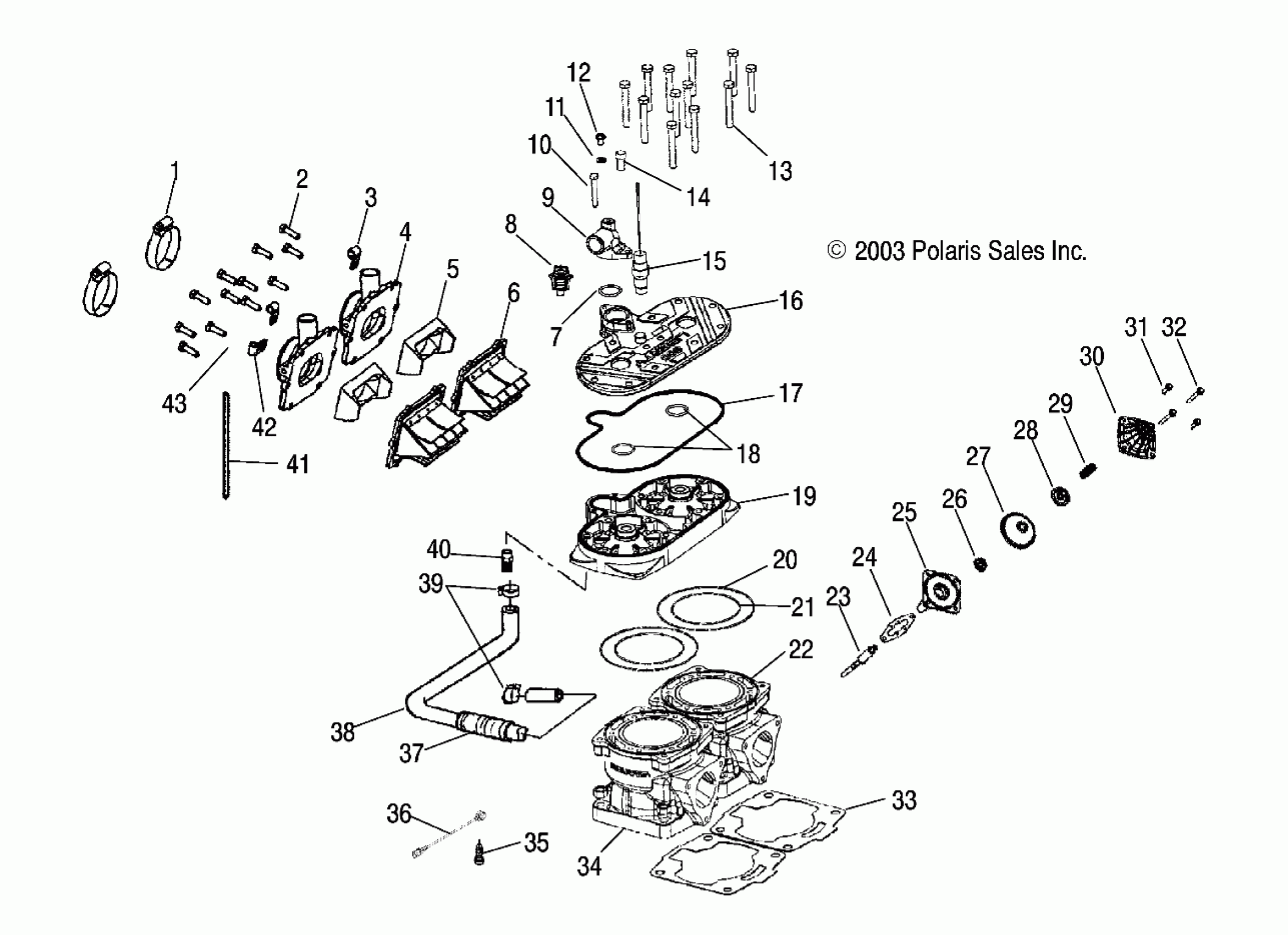

Polaris 800 PRO XR - S04NZ8CS CYLINDER - S04NZ8CS/CSA/CENX6ES (4988798879C09) Diagram

#

Description
Price

1

Clamp, Hose

7080681

$9.59

2

SCREW

7517398

$3.19

3

CLAMP, HOSE

7080683

$2.39

4

Adapter, Carb

1253485

Unavailable

5

Stuffer, Reed Block

5433151

Unavailable

6

Asm., Reed Valve

1201825

$134.99

7

O-Ring

5411521

$24.19

8

Thermostat, w/o Bypass

7052258

$48.56

9

Cover, Thermostat

5631391

Unavailable

10

SCREW

7516818

$5.59

11

WASHER, FLAT

7555998

$1.49

12

SCREW, BLEED

7517679

$13.59

13

SCREW

7517534

$4.79

14

SCREW

7516822

$2.39

15

Sensor, Temperature

4010398

$36.41

16

Cover, Head

5631427-329

$115.99

17

Seal, Rubber, Head

5411294

Unavailable

18

O-Ring

5410917

$1.49

19

Head, Cylinder

3021427

Unavailable

20

O-Ring

5412232

$7.99

21

O-Ring

5411675

$29.03

22

Cylinder

3021339

Unavailable

23

Valve, Guillotine

5133775

$179.99

24

Gasket, Base to Cylinder Exhaust Valve

5812350

$6.46

25

Asm., Base Exhaust Valve Dome

1202216

Unavailable

26

Washer, Bellows, Exhaust, Valve, Dome

5132950

Unavailable

27

Bellows, Exhaust Valve

5412399

$44.51

28

Cap/Nut, Bellows, Exhaust, Valve, Dome

5631152

Unavailable

29

Spring, Compression, Pink/Yellow

7041786-11

Unavailable

30

Asm., Exhaust Valve Housing w/Bushing

1202640

$15.99

31

SCREW

7516820

$5.59

32

SCREW

7517932

$3.99

33

Gasket, Cylinder Base

5812363

$14.99

34

NUT

7547013

$1.99

35

SCREW

7517262

$5.59

36

SENSOR, DETONATION

2410369

$76.89

37

Conduit, Flex

5521398-96

Unavailable

38

Hose, Bypass

5411536

Unavailable

39

Clamp

7081030

$6.39

40

FITTING

7052222

$23.99

41

Retainer

7080654

$18.32

42

Clamp, Hose

7080880

$5.59

43

Washer, Flat

7555836

$3.99
