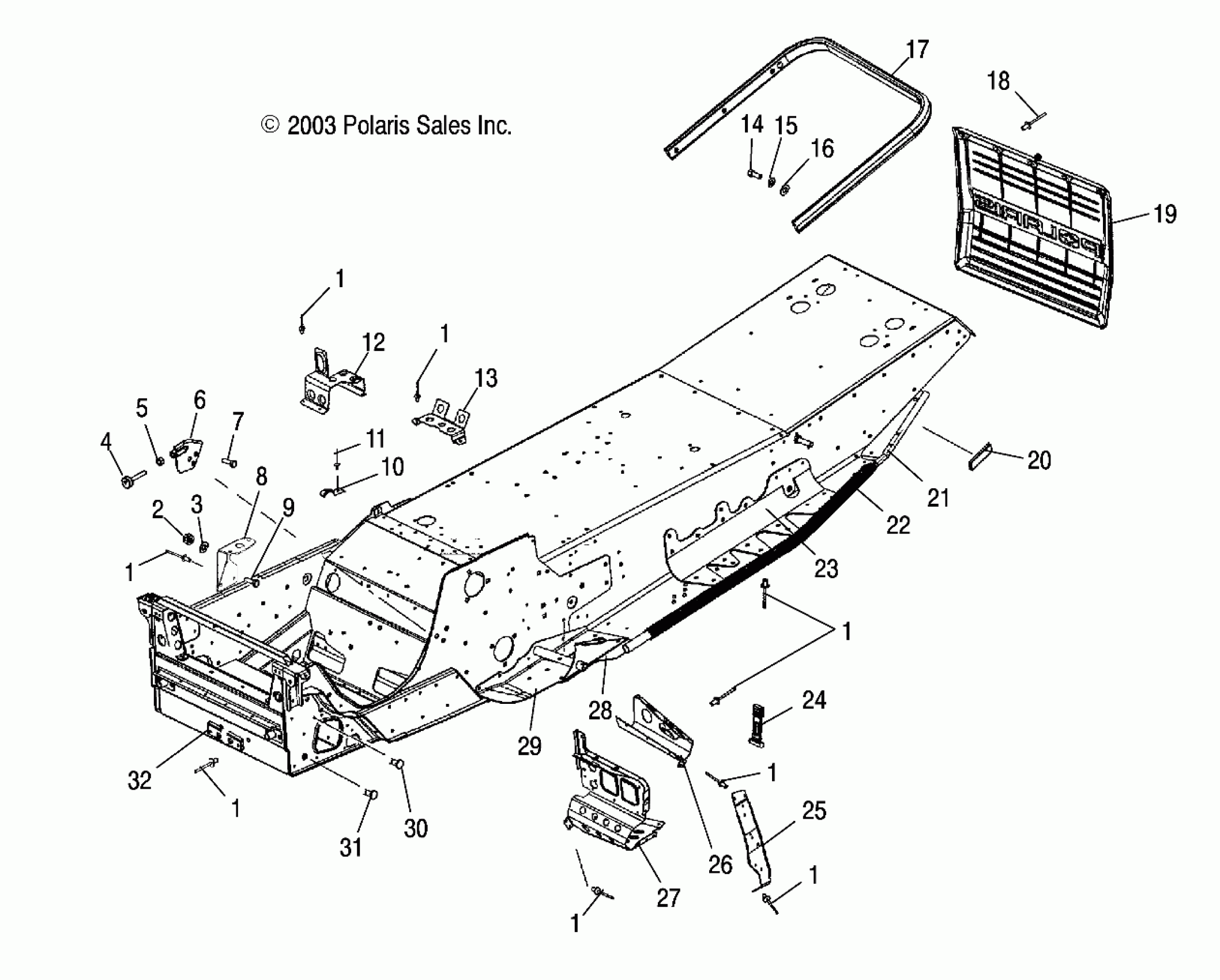

Polaris 800 PRO XR - S04NZ8CS CHASSIS - S04NZ8CS/CSA/CE (4988798879A03) Diagram

#

Description
Price

-

Asm., Chassis

1014390-1176

Unavailable

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

2

Nut

7541906

$3.19

3

Washer

7555783

$3.99

4

STOP, TORQUE

3021354

$24.27

5

Nut

7542414

$4.79

6

Stop, Torque

1013835

Unavailable

7

Screw

7517854

$5.59

8

Bracket, Chassis/Tuned Pipe

5245514

Unavailable

9

Screw

7512027

$1.49

10

Clip, Wiring

7080665

Unavailable

11

Rivet

7621432

$1.49

12

Bracket, Oil Bottle, Lower

5247394

Unavailable

13

Bracket, Mount, Airbox

5246313

$18.23

14

SCREW

7512232

$1.49

15

WASHER, SPRING LOCK

7552801

$1.59

16

WASHER

7558301

$1.49

17

Bumper, Rear

2632165-309

Unavailable

18

RIVET

7621418

$1.49

19

Flap, Snow

5434356-1106

Unavailable

20

Reflector, Red

2670133

$5.75

21

Tube, Tunnel Reinforcement, Rear

5245432

Unavailable

22

Grip, Tunnel Roll, LH

5133971

$45.59

22

Grip, Tunnel Roll, RH

5133972

$45.59

23

Brace, Tunnel, LH

5245820

$58.39

23

Brace, Tunnel, RH

5245821

$58.39

24

STRAP-AIRBOX TOP

5433150

$24.27

25

Support, Footrest, LH

5246310

$19.83

25

Support, Footrest, RH

5246311

$32.37

26

Clip, Toe, Footrest, Upper LH

5246002

$36.31

26

Clip, Toe, Footrest, Upper RH

5246003

Unavailable

27

Footrest, LH

5245999

Unavailable

27

Footrest, RH

5246001

$66.39

28

Tube, Tunnel Reinforcement, Front

5245431

$10.32

29

Kit, Trailing Arm Mount, LH

2202436

Unavailable

29

Kit, Trailing Arm Mount, RH

2202437

Unavailable

30

PLUG-HOLE

7080398

$4.84

31

PLUG, HOLE

7080416

$5.65

32

Bracket, Radius Rod Strap, Lower

5245250

$11.59
