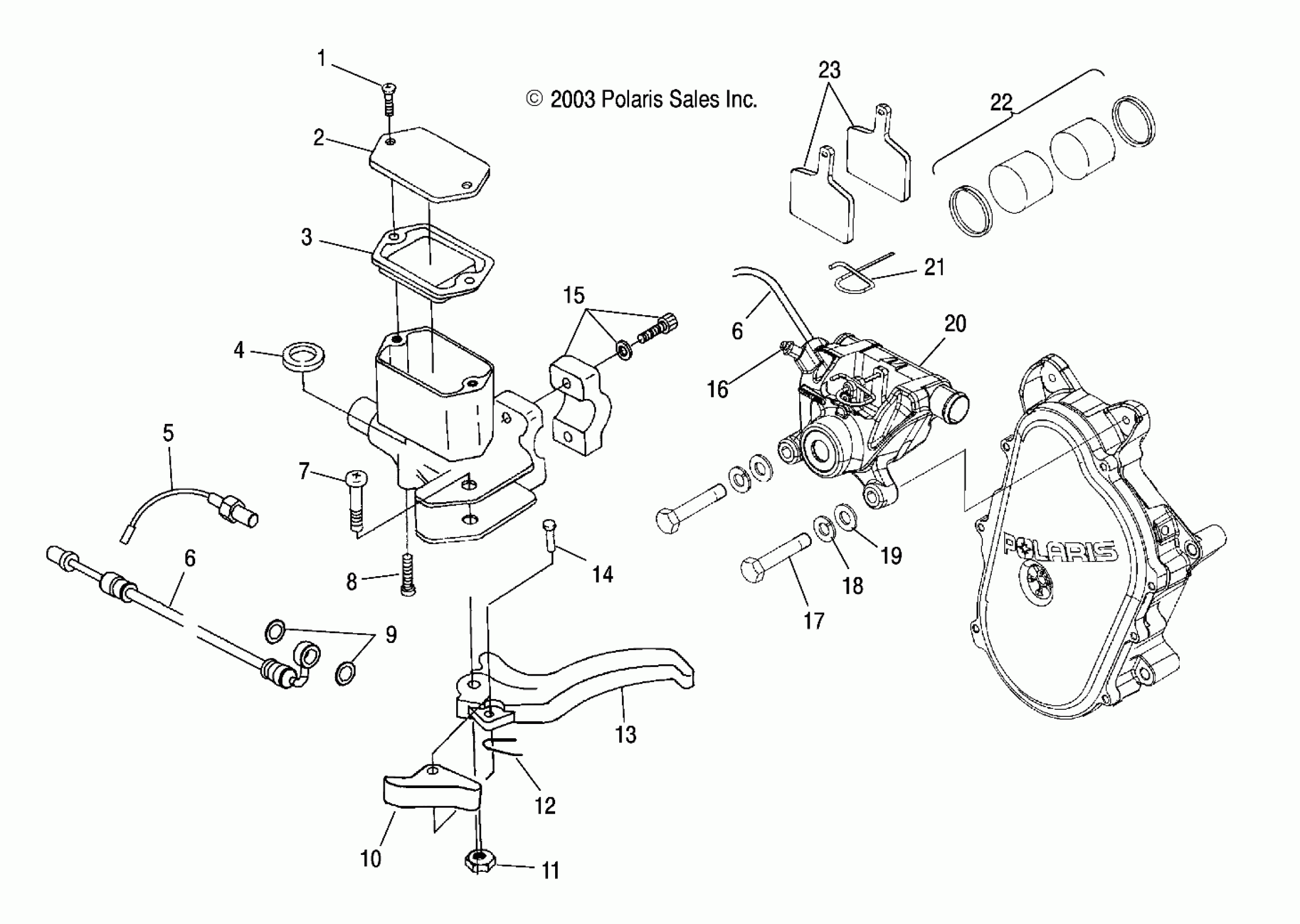

Polaris 800 PRO XR - S04NZ8CS BRAKE - S04NZ8CS/CSA/CE (4988798879B02) Diagram

#

Description
Price

-

Kit, Master Cylinder Reservoir [Incl. 1,2,3,4]

2200809

$68.79

-

Asm., Master Cylinder [Incl. 1-4,7,8,10-15]

2010207

Unavailable

1

Bolt, Cap

1930797

$11.19

2

Cap, Reservoir

1930796

Unavailable

3

Diaphragm

1930795

$44.51

4

RING, SQUARE, RESERVOIR

-------

Unavailable

5

Switch, Pressure

4010656

Unavailable

6

Line, Brake

1910605

Unavailable

6

Line, Brake

1910605

Unavailable

7

Bolt

1930805

Unavailable

8

Bolt, Reservoir

1930792

$23.99

9

Seal

5410988

$4.84

10

Kit, Park Brake Lever [Incl. 12,14]

2201090

$40.46

11

Nut

1930806

Unavailable

12

SPRING, FLAT

-------

Unavailable

13

Kit, Brake Lever w/Parking Latch [Incl. 11-14]

2201921

Unavailable

14

Rivet

1930804

Unavailable

15

Kit, Master Cylinder Clamp

2200808

Unavailable

16

Kit, Bleeder Fitting

2202205

$36.41

17

Screw

7515534

$4.79

18

Washer, Spring Lock

7552603

$1.49

19

Washer

7556160

$3.99

20

Kit, Asm., Brake Caliper [Incl. Brake Pad]

2202390

$304.98

21

Kit, Retaining Pin

2202206

$23.99

22

Kit, Piston/Seal

2202204

$40.46

22

Kit, Piston/Seal

2202207

$93.08

23

Kit, Brake Pad, Type 81 [2 Per]

2202202

$134.99
