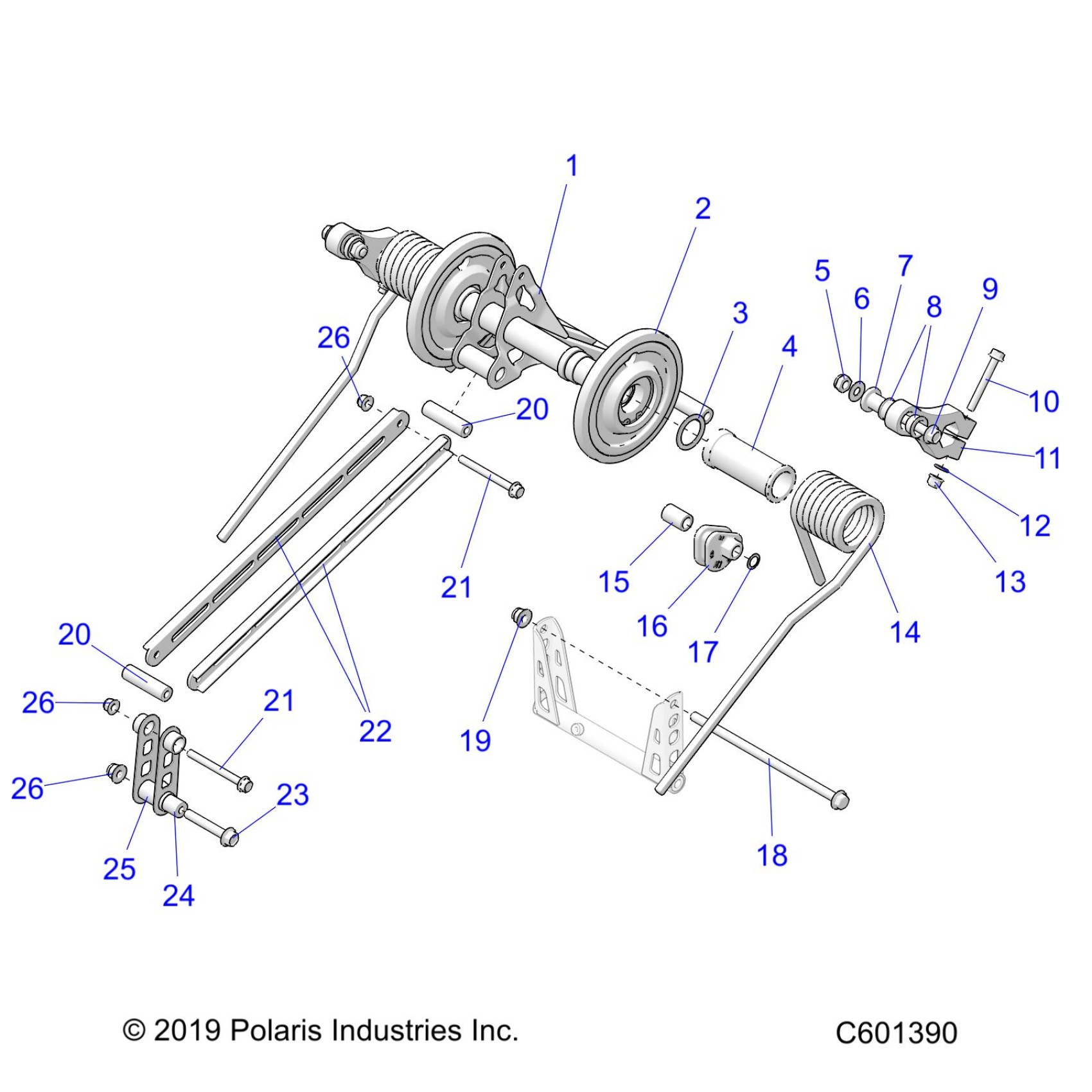

Polaris 800 INDY XC 129 ES/SC SELECT (R04) - S19EKP8PS/PSL SUSPENSION, TORQUE ARM, REAR - S19EKP8PS/PSL (C601390) Diagram

#

Description
Price

1

WELD-RTA ECOAT

1543906-329

$249.99

2

RING-RETAINING

7710486

Unavailable

2

BEARING-6007

3514445

Unavailable

2

ASM-WHEEL,PLAIN,6.38,6007

1590001

$72.84

3

WSHR-1.28X1.69X.075-Y

7555939

Unavailable

4

SLEEVE-TORSION SPRING

5434989

$3.99

5

NUT-HEX M10X1.5 8 ZOD NYL

7547442

$3.99

6

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

7

SHAFT-RTA MOUNT

5141400

$13.75

8

BUSHING-CRANK

5438876

$7.99

9

SCREW, HXFLG

7518971

$6.39

10

SCR-M8X1.25X65-HX/FL-Y,CL 10.9

7519212

$4.79

11

ASM-ARM 83.2 NARROW [INCL 8]

1544129

$40.46

12

WASHER-.344X.688X.063 FL-ZOD

7556524

$1.49

13

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

14

SPRING-TOR,.347S,77,9#,RH BLK [OPT]

7043240-067

$154.99

14

SPRING-TOR,.347S,77,9#,LH BLK [OPT]

7043241-067

$154.99

14

SPRING-TOR,.347S,80,10#,LH BLK [OPT]

7043859-329

$113.32

14

SPRING, TOR,.375S,80,13#,RH,HD, BLK [OPT]

7045208-329

$117.37

14

SPRING, TOR,.375S,80,13#,LH,HD, BLK [OPT]

7045207-329

$117.37

14

SPRING-TOR,.359S,80,11#,LH BLK [STD]

7045190-329

$113.32

14

SPRING, TOR,.375S,70,13#,RH, EXTRA HD, BLK [OPT]

7045210-329

$117.37

14

SPRING-TOR,.359S,80,11#,RH BLK [STD]

7045191-329

$113.32

14

SPRING, TOR,.375S,70,13#,LH,EXTRA HD, BLK [OPT]

7045209-329

$117.37

14

SPRING-TOR,.347S,80,10#,RH BLK [OPT]

7043860-329

$113.32

15

SPACER-.520X.770X1.185,HDPE

5334285

$2.39

16

ROLLER-SPRING,TRI-ADJ,RH

5434590

$28.32

16

ROLLER-SPRING,TRI-ADJ,LH

5434589

$32.37

17

CLIP-PUSH ON

7080394

$2.39

18

SCR-HXFL-M10X1.5X230 8.8 ZY3

7518472

$6.39

19

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

20

BUSHING-PULL ROD

5142128

$8.79

20

BUSHING-PULL ROD

5142128

$8.79

21

SCR-HXFL-M8X1.25X85 10.9 ZOD

7519972

$9.59

21

SCR-HXFL-M8X1.25X85 10.9 ZOD

7519972

$9.59

22

ROD-SHOCK LWT MACH

5141836

$44.43

23

SCR-HXFL-M8X1.25X65 8.8 ZOD

7519971

$5.59

24

BUSHING-SHOCK PIVOT ARM

5142127

$11.99

25

WELD-SHOCK PIVOT ARM ECOAT

1544017-329

$36.41

26

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

26

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

26

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99
