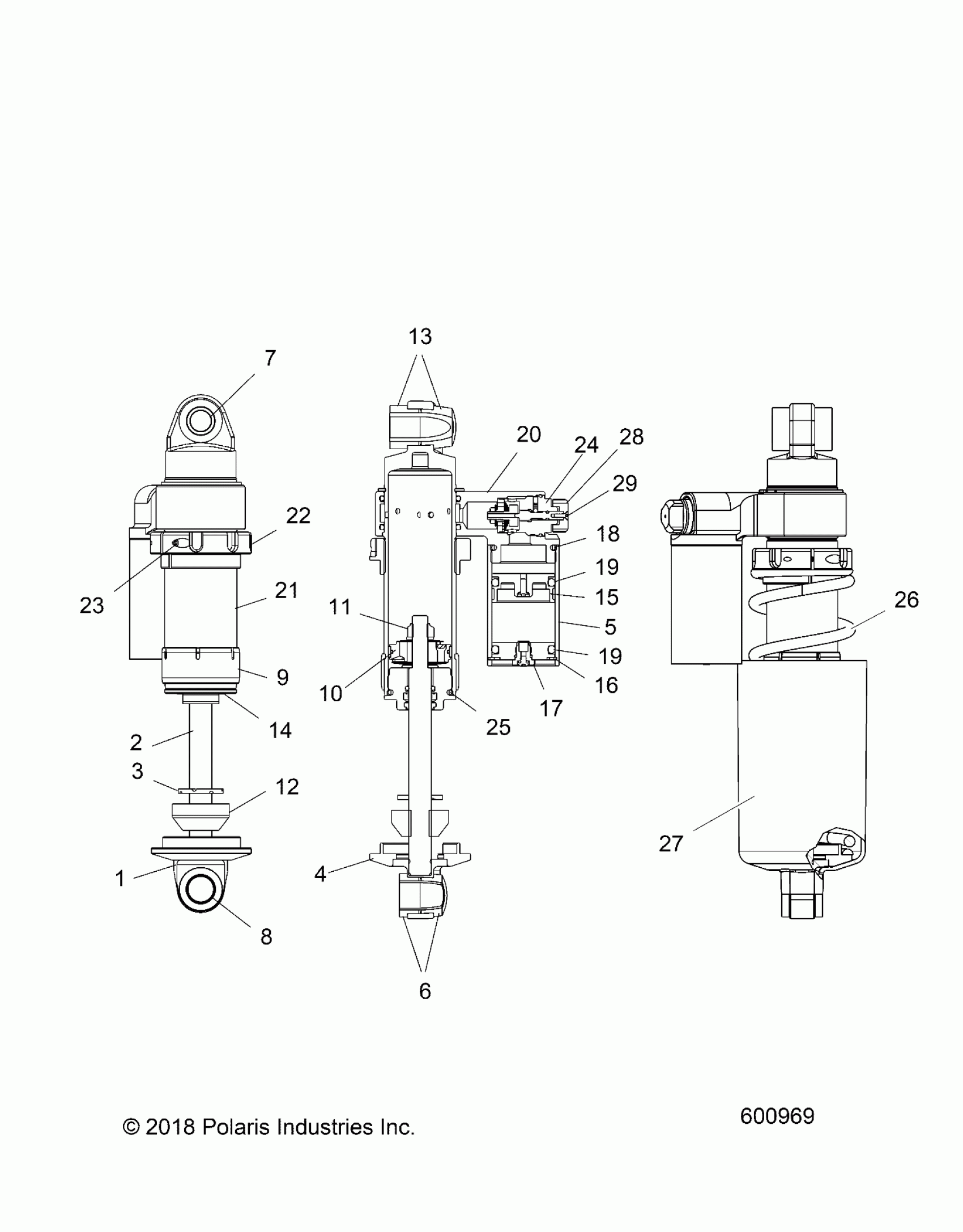

Polaris 800 INDY XC 129 ES/SC SELECT (R04) - S19EKP8PS/PSL SUSPENSION, SHOCK, FRONT TRACK (7044878) - S19EKP8PS/PSL (600969) Diagram

#

Description
Price

-

SHOCK, FT, WE

7044878

$615.99

-

DECAL-VELOCITY SERIES

1801081

$13.75

1

LOOP, SHAFT, BLK

1801079

$547.05

2

SHAFT, FT, SS

1801020

$109.99

3

SCRAPER, ICE, SHAFT

1800776

$28.32

4

RETAINER, SPRING CLIP, BLK

1800778

$47.60

5

BODY, RESERVOIR, 3.5L, BLK

1801080

$154.90

6

BUSHING

1800406

$5.65

7

SLEEVE, 1.685L

1800039

$15.99

8

SLEEVE, 1.150L

1800405

$28.32

9

WEAR BAND, SPRING

1800780

$64.99

10

ASM., PISTON, .073 BLEED

1801017

$139.99

11

CRIMP NUT, 7/16"

1801000

$7.99

12

BUMP STOP, 1.58x.73

1800649

$43.56

13

BUSHING

1800033

$19.99

14

ASM., SEAL HEAD, 2.0

1800781

$169.43

15

PISTON, IFP

1800739

$44.99

16

RING, WIRE

1800795

$7.27

17

ASM., END CAP, CLR

1801044

$84.99

18

O-RING BODY LOOP

1800030

$2.02

19

O-RING, 2-324

1800184

$5.65

19

O-RING, 2-324

1800184

$5.65

20

BRIDGE, 2" ANO CLR

1801018

$144.99

21

BODY, 2.0 MIDMNT

1800775

$164.99

22

SPRING NUT

1800777

$91.97

23

SCREW M4 SOC CP

1801002

$3.99

24

ASM., ADJUSTER, HS-LS

1801021

$104.99

25

O-RING, 2-226

1800863

$4.79

26

SPRING-COMP 80/250#X8.0 2"MBLK

7045203-458

$62.92

27

SHIELD, SHOCK

5455587

$28.32

28

KNOB

1801053

$49.99

29

SCREW

1800738

$1.49
