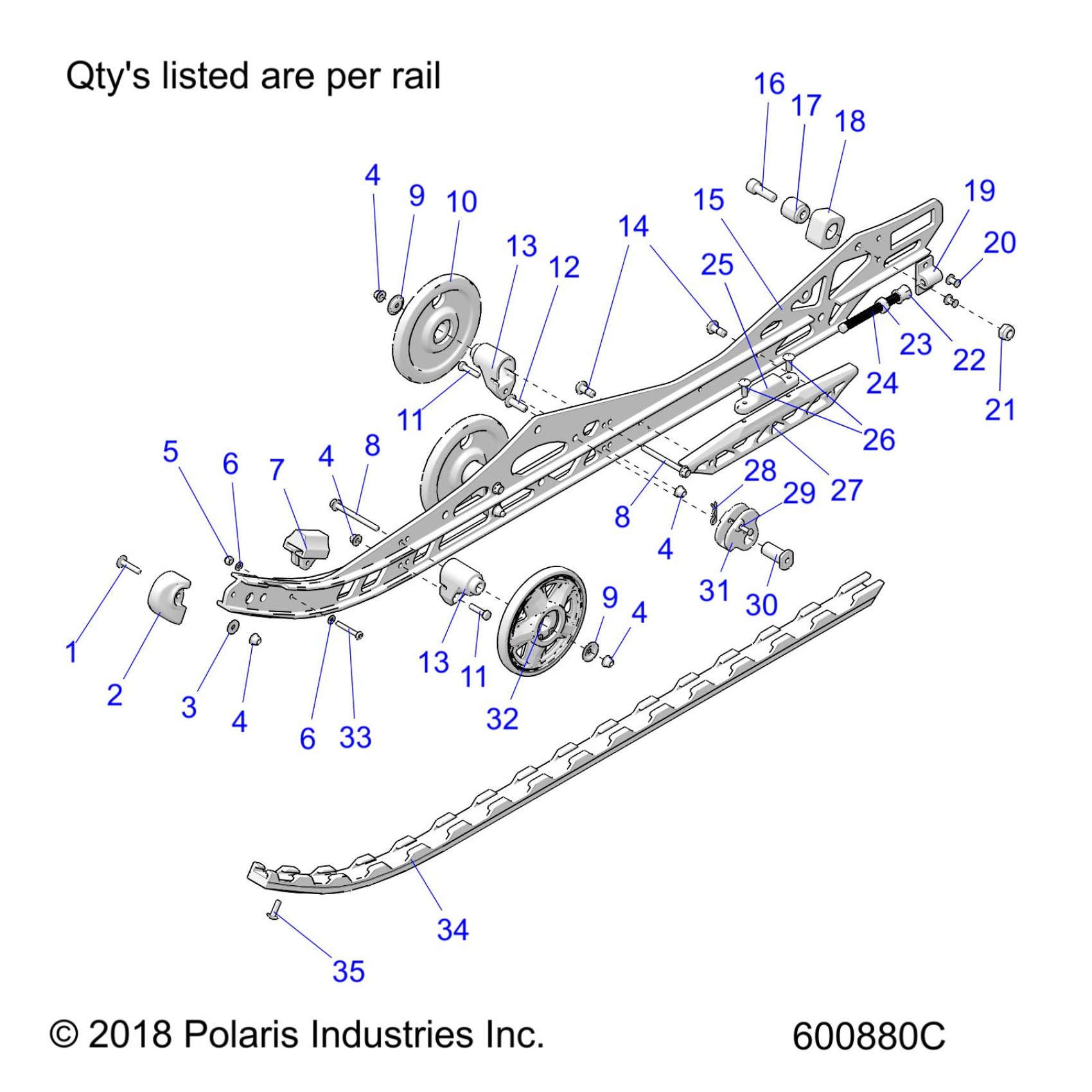

Polaris 800 INDY XC 129 ES/SC SELECT (R04) - S19EKP8PS/PSL SUSPENSION, RAIL, LH/RH - S19EKP8PS/PSL (600880C) Diagram

#

Description
Price

1

SCR-TXTH-M6X1.0X30,8.8,ZPB

7520133

$3.19

2

CAP, RAIL TIP

5452441

$16.99

3

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

4

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

4

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

4

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

4

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

4

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

5

NUT-NYLOC 10-24 Y

7541925

$1.49

6

Washer, Flat

7555783

$3.99

6

Washer, Flat

7555783

$3.99

7

BUMPER, JOUNCE, FRONT

5522253

$8.89

8

SCR-HXFL- M6X1.0X70 10.9 ZOD

7519908

$4.79

9

WSHR-M6 OFFSET 2.01 ZOD

7556799

$3.19

9

WSHR-M6 OFFSET 2.01 ZOD

7556799

$3.19

10

ASM-WHEEL,PLAIN

1590457

$35.99

10

BEARING [1 PER WHEEL]

3514384

$19.84

10

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

11

SCR-HH-M6X1.0X25 8.8 ZPB

7517510

$4.79

11

SCR-HH-M6X1.0X25 8.8 ZPB

7517510

$4.79

12

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

13

BLOCK-WHEEL MOUNT

5633278

$29.99

13

BLOCK-WHEEL MOUNT

5633278

$29.99

14

SCR-TXTH-M8X1.25X20 8.8 ZB3 P3

7519997

$3.99

15

ASM-RAIL 129 SVC LH NAT [INCL.14,19,20,27]

1543909-309

$654.99

15

ASM-RAIL 129 SVC RH NAT [INCL.14,19,20,27]

1543910-309

$644.99

15

ASM-RAIL 129 SVC LH BLACK [INCL.14,19,20,27]

1543909-067

$654.99

15

ASM-RAIL 129 SVC RH BLACK [INCL.14,19,20,27]

1543910-067

$654.99

15

ASM-RAIL 129 SVC LH RED [INCL.14,19,20,27]

1543909-293

$654.99

15

ASM-RAIL 129 SVC RH RED [INCL.14,19,20,27]

1543910-293

$654.99

15

ASM-RAIL 129 SVC LH WHITE [INCL.14,19,20,27]

1543909-599

$654.99

15

ASM-RAIL 129 SVC RH WHITE [INCL.14,19,20,27]

1543910-599

$654.99

15

ASM-RAIL 129 SVC LH LIME SQUEEZE [INCL.14,19,20,27]

1543909-630

$654.99

15

ASM-RAIL 129 SVC RH LIME SQUEEZE [INCL.14,19,20,27]

1543910-630

$654.99

15

ASM-RAIL 129 SVC LH ORNG BURST [INCL.14,19,20,27]

1543909-647

$654.99

15

ASM-RAIL 129 SVC RH ORNG BURST [INCL.14,19,20,27]

1543910-647

$654.99

15

ASM-RAIL 129 SVC LH INDIAN SKY BLUE [INCL.14,19,20,27]

1543909-737

$654.99

15

ASM-RAIL 129 SVC RH INDIAN SKY BLUE [INCL.14,19,20,27]

1543910-737

$654.99

16

SCR-SH-M10X1.5X30 8.8 ZPB

7519844

$4.79

17

MOUNT-BUMPER METRIC

5136571

$9.70

18

BUMPER, PIVOT ARM

5410925

$12.94

19

BLOCK-IDLER BOLT ADJ METRIC

5136570

$34.99

20

RIVET

7621501

$2.39

21

NUT-HEX M10X1.5 8 ZOD NYL

7547442

$3.99

22

SPACER-IDLER ADJ ALUM

5141837

$8.99

23

NUT-HEX-M10X1.5 8 ZOD

7547707

$4.99

24

SCR-HX-M10X1.5X100,8.8,ZOD

7520083

$12.79

25

BUMPER-FRT TORQ ARM, XTRA 12

5432166

$5.59

26

SCR-1/4-20X3/4,TR/TX/TAP-Y

7515199

$1.49

27

PLATE-RAIL REINF LW

5141475

$56.65

28

PIN-HITCH, 3/32-Y

7661644

$2.39

29

PIN-CLEVIS 3/16X1 1/4

7661123

$3.99

30

SHAFT-SPRING ROLLER M8 ANOD

5136687

$10.51

31

GUIDE-SPRING SQUARE

5434334

$28.32

32

ASM-WHEEL LWT 5.62

1590511-070

Unavailable

32

BEARING [1 PER WHEEL]

3514384

$19.84

32

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

33

SCR-10-24X1.25TFM PN TRX TRI-Y

7512025

$4.79

34

HI-FAX-129 LWT BLK [QTY 2 LH/RH]

5522230-070

$56.65

35

SCR-M6X1.0X20 TR/TX/TAP ZOD

7518976

$3.19
