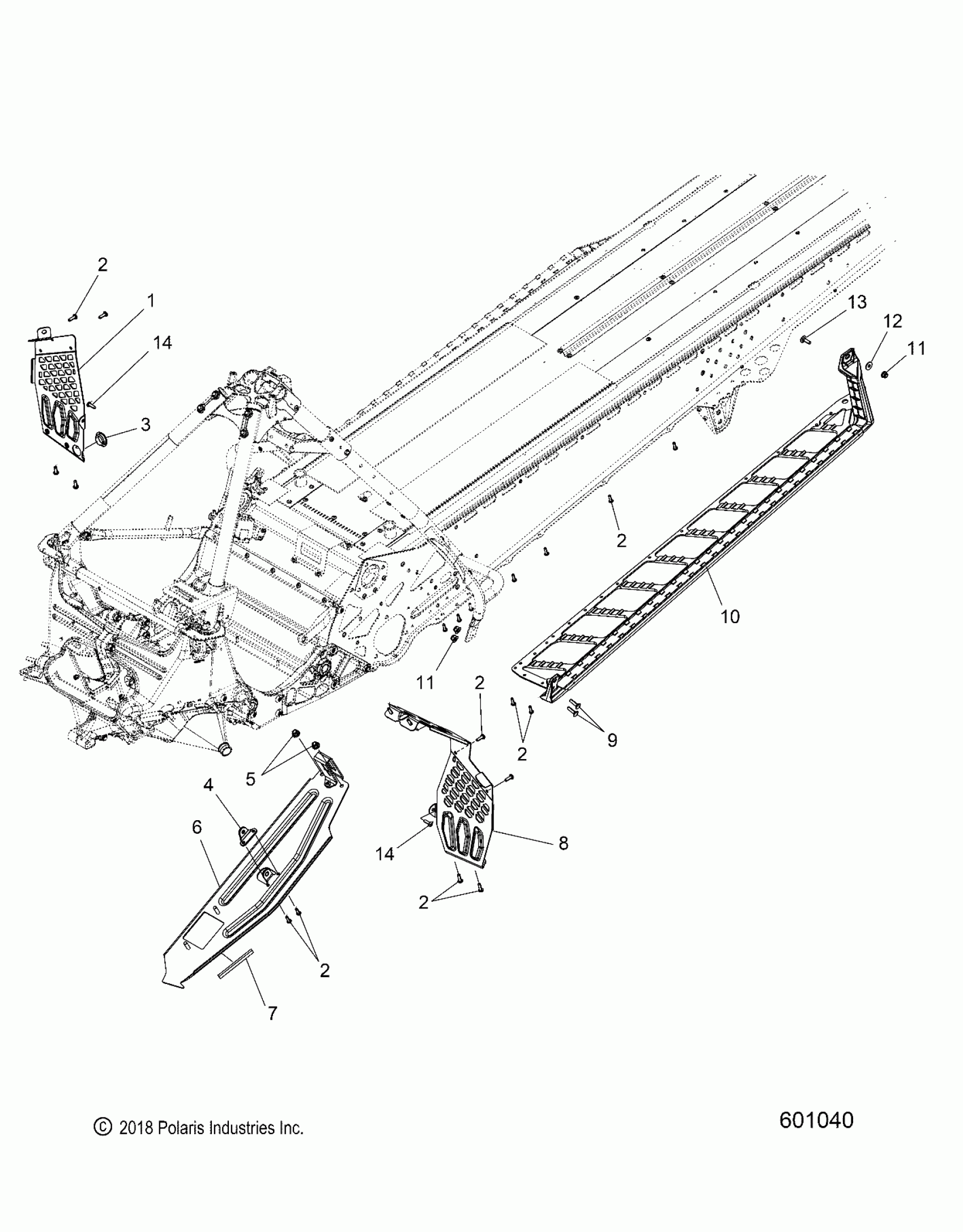

Polaris 800 AXYS PRO-RMK 174 3" SC SELECT (R02) - S19EHM8PS CHASSIS, CLUTCH GUARD, FOOTRESTS, AND RUNNING BOARDS - S19EHM8PS ALL OPTIONS (601040) Diagram

#

Description
Price

1

ASM., TOE STOP, RH

1023936

$64.75

2

RIVET-3/16-.090-.290

7661637

Unavailable

2

RIVET-3/16-.090-.290

7661637

Unavailable

2

RIVET-3/16-.090-.290

7661637

Unavailable

2

RIVET-3/16-.090-.290

7661637

Unavailable

2

RIVET-3/16-.090-.290

7661637

Unavailable

2

RIVET-3/16-.090-.290

7661637

Unavailable

3

Caplug

7080936

$2.39

4

BRKT., OIL BOTTLE

-------

Unavailable

5

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

6

ASM., GUARD, CLUTCH [INCL. 2,4,7)

1022101

$72.60

7

TRIM, EDGE, 130MM

8360176

$36.41

8

ASM., TOE STOP, LH

1020099

$64.75

9

SCREW, RH CAR

7519338

$3.19

10

ASM-RUNNINGBOARD LH [SC SELECT OPT]

1022022

$344.99

10

ASM., RUNNNINGBOARD, RH [SC SELECT OPT]

1022023

$344.99

10

ASM-RUNNINGBOARD LH INDY RED [SC SELECT OPT]

1022022-293

$344.99

10

ASM., RUNNNINGBOARD, RH, INDY RED [SC SELECT OPT]

1022023-293

$344.99

10

ASM-RUNNINGBOARD LH BLACK [SC SELECT OPT]

1022022-067

$285.62

10

ASM., RUNNNINGBOARD, RH, BLACK [SC SELECT OPT]

1022023-067

$304.98

10

ASM-RUNNINGBOARD LH LIME SQUEEZE [SC SELECT OPT]

1022022-630

$304.98

10

ASM-RUNNNINGBOARD, RH, LIME SQUEEZE [SC SELECT OPT]

1022023-630

$304.98

10

ASM-RUNNINGBOARD LH ORANGE BURST [SC SELECT OPT]

1022022-647

$344.99

10

ASM., RUNNNINGBOARD, RH, ORANGE BURST [SC SELECT OPT]

1022023-647

$344.99

10

ASM-RUNNINGBOARD LH IND SKY BLUE [SC SELECT OPT]

1022022-737

$304.98

10

ASM., RUNNNINGBOARD, RH, IND SKY BLUE [SC SELECT OPT]

1022023-737

$304.98

11

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

11

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

12

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

13

SCR-RHCARM6X1.0X20 8.8 ZOD

7518994

$3.22

14

RIVET-POP 3/16(.251-.375)-ST-Z

7621402

$1.49

14

RIVET-POP 3/16(.251-.375)-ST-Z

7621402

$1.49
