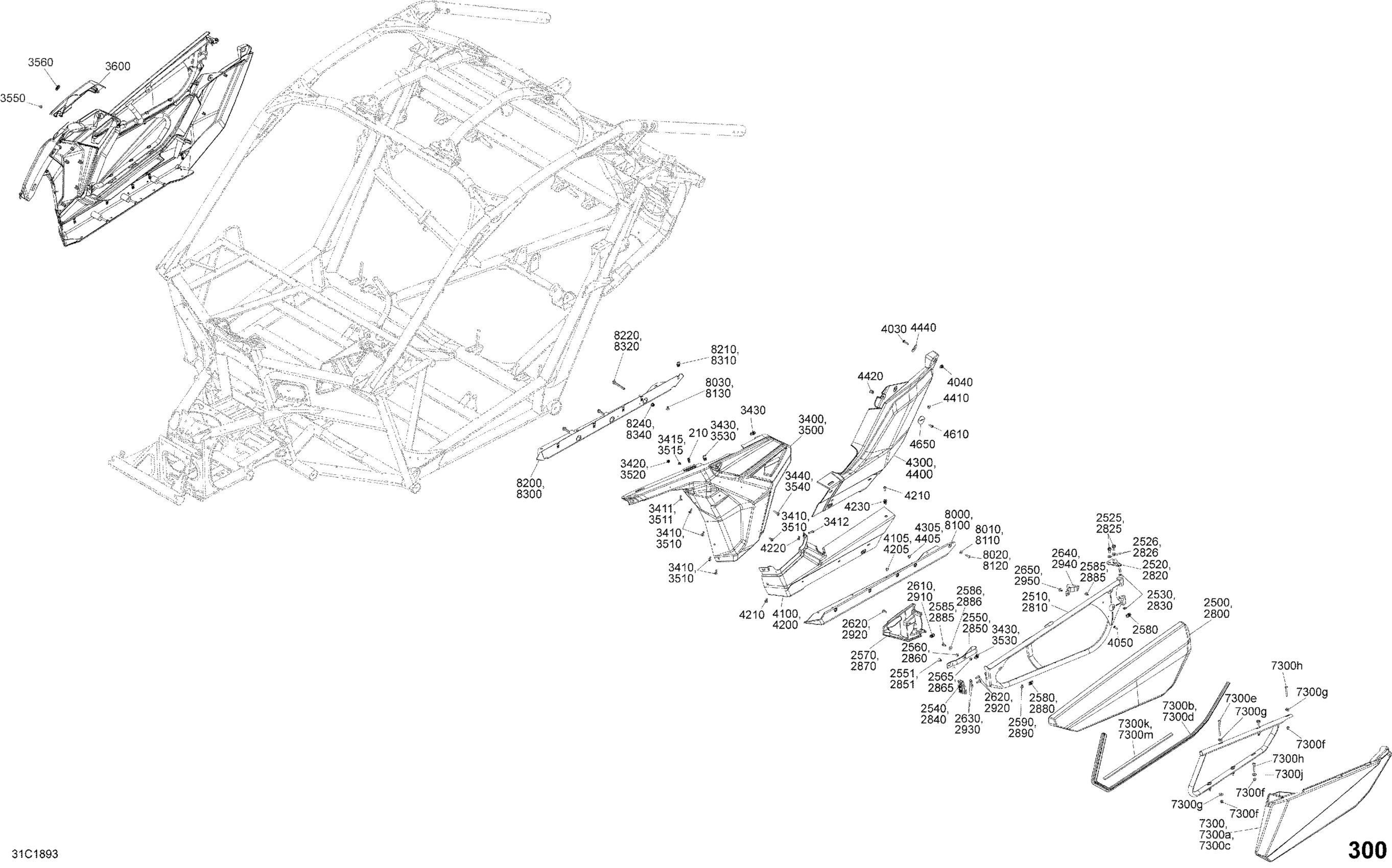

Can-Am Maverick X3 Turbo R - XRC, 2018 Body Parts - Carbon Black - Package XRC - Side Section Diagram

#

Description
Price

210

Clip

705010721

$2.31

2500

Carbon Black, LH Front Door Panel

705014333

$187.66

2510

Door Fl B-352 Painted | Blue Cage Model

705017350

$232.28

2520

Door Support

705011187

$10.98

2525

Hex Screw Washer Head M8 X 20

207582054

$2.61

2526

Flat Washer M8

234081430

$1.74

2530

Flat Washer 8 mm, Nylon

234081100

$1.00

2540

LH Latch

705013095

$55.35

2550

Belt

293850135

$14.75

2551

Pop Rivet 3/16”

293150108

$1.23

2560

Belt Stopper

293730070

$2.31

2565

Belt Stopper

293730072

$2.31

2570

LH Latch Cover

705010734

$36.89

2580

Panel Nut M6 X 1.0

250100198

$1.73

2585

Torx Truss Screw M6 X 16

250000721

$1.39

2586

Stainless Steel Flat Washer

234062670

$1.74

2590

Pop Rivet 3/16"

293150103

$0.54

2610

Panel Nut M6 X 1.0

250100198

$1.73

2620

Torx Screw M6 X 20

250000722

$1.34

2630

Stainless Steel Flat Washer

234062670

$1.74

2640

Door Belt

293850129

$15.35

2650

Pop Rivet 3/16"

293150103

$0.54

2700

LH Lower Door Panel

705010732

$53.82

2710

Torx Truss Screw M6 X 50

250000749

$3.11

2720

Stainless Steel Flat Washer

234062670

$1.74

2730

Hex. Flange Elastic Nut M6

233261466

$1.66

2800

Carbon Black, RH Front Door Panel

705014339

$187.66

2810

Blue Door Frame RH | Blue Cage Model

705012548

$140.74

2820

Door Support

705011187

$10.98

2825

Hex Screw Washer Head M8 X 20

207582054

$2.61

2826

Flat Washer M8

234081430

$1.74

2830

Flat Washer 8 mm, Nylon

234081100

$1.00

2840

RH Latch

705013096

Unavailable

2850

Belt

293850135

$14.75

2851

Pop Rivet 3/16”

293150108

$1.23

2860

Belt Stopper

293730070

$2.31

2865

Belt Stopper

293730072

$2.31

2870

RH Latch Cover

705010735

$36.89

2880

Panel Nut M6 X 1.0

250100198

$1.73

2885

Torx Truss Screw M6 X 16

250000721

$1.39

2886

Stainless Steel Flat Washer

234062670

$1.74

2890

Pop Rivet 3/16"

293150103

$0.54

2910

Panel Nut M6 X 1.0

250100198

$1.73

2920

Torx Screw M6 X 20

250000722

$1.34

2930

Stainless Steel Flat Washer

234062670

$1.74

2940

Door Belt

293850129

$15.35

2950

Pop Rivet 3/16"

293150103

$0.54

3000

RH Lower Door Panel

705010733

$59.97

3010

Torx Truss Screw M6 X 50

250000749

$3.11

3020

Stainless Steel Flat Washer

234062670

$1.74

3030

Hex. Flange Elastic Nut M6

233261466

$1.66

3400

Black, LH Front Lateral Panel Kit

715006594

$115.35

3410

Torx Screw M6 X 20

250000722

$1.34

3411

Torx Screw M6 X 20

250000712

$1.74

3412

Torx Truss Screw M6 X 25

250000807

$1.74

3415

Hex. Flange Elastic Nut M6

233261494

$1.26

3420

Threaded Insert M6 X 1.0

250100242

Unavailable

3430

Panel Nut M6 X 1.0

250100198

$1.73

3440

Torx Truss M6 X 50

250000868

$1.74

3500

RH Front Lateral Panel Kit

715004074

$101.51

3510

Torx Screw M6 X 20

250000722

$1.34

3511

Torx Screw M6 X 20

250000712

$1.74

3515

Hex. Flange Elastic Nut M6

233261494

$1.26

3520

Threaded Insert M6 X 1.0

250100242

Unavailable

3530

Panel Nut M6 X 1.0

250100198

$1.73

3540

Torx Truss M6 X 50

250000868

$1.74

3550

Hex. Flange Elastic Nut M6

233261494

$1.26

3560

Grommet

517303756

$3.15

3600

Lateral Cover

705017564

$40.74

4030

Torx Truss Screw M6 X 25

250000807

$1.74

4040

Panel Nut M6 X 1.0

250100198

$1.73

4050

Torx Screw K50 X 16

250000720

$1.39

4100

LH Central Lateral Panel

705012768

$69.20

4105

Pop Rivet 3/16”

293150108

$1.23

4200

Deep Black, RH Lower Body Panel

705017549

$64.58

4205

Pop Rivet 3/16”

293150108

$1.23

4210

Torx Screw M6 X 20

250000722

$1.34

4220

Panel Nut M6 X 1.0

250100198

$1.73

4230

Insert

705016606

$2.31

4300

LH Rear Lateral Panel

705012770

$110.74

4305

Pop Rivet 3/16”

293150108

$1.23

4400

RH Rear Lateral Panel

705012771

$110.74

4405

Pop Rivet 3/16”

293150108

$1.23

4410

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

4420

Panel Nut M6 X 1.0

250100198

$1.73

4440

Support Plate

705003841

$0.91

4610

Torx Screw M6 X 20

250000722

$1.34

4650

Support Plate

705003841

$0.91

7300

Door Panels | Includes 7300 to 7300m

715002903

$449.97

7300a

LH Door Panels

705010271

$105.35

7300b

Door Seal

705012018

$18.43

7300c

RH Door Panels

705010272

$104.58

7300d

Door Seal

705012018

$18.43

7300e

Torx-Truss M/S M6 X 80

250000902

$2.60

7300f

Hex. Flange Elastic Nut M6

233261494

$1.26

7300g

Offset Washer

705202223

$4.98

7300h

Torx Truss Screw M6 X 50

250000749

$3.11

7300j

Stainless Steel Flat Washer

234062670

$1.74

7300k

Neoprene Seal (1PAC=3M)

219704364

$22.72

7300m

Neoprene Seal (1PAC=3M)

219704364

$22.72

8000

LH Lateral Panel

705012772

$115.35

8010

Flat washer M6

250200164

$0.83

8020

Torx Truss Screw M6 X 25

250000807

$1.74

8030

Pop Rivet 3/16”

293150108

$1.23

8100

RH Lateral Panel

705012773

$115.35

8110

Flat washer M6

250200164

$0.83

8120

Torx Truss Screw M6 X 25

250000807

$1.74

8130

Pop Rivet 3/16”

293150108

$1.23

8200

LH Lateral Structure

705012774

$209.20

8210

Panel Nut M6 X 1.0

250100198

$1.73

8220

Hex. Flange Screw M8 X 75, Scotch Grip

207587534

$4.28

8240

Elastic Flange Nut M8

233281464

$0.83

8300

RH Lateral Structure

705012775

$209.20

8310

Panel Nut M6 X 1.0

250100198

$1.73

8320

Hex. Flange Screw M8 X 75, Scotch Grip

207587534

$4.28

8340

Elastic Flange Nut M8

233281464

$0.83
