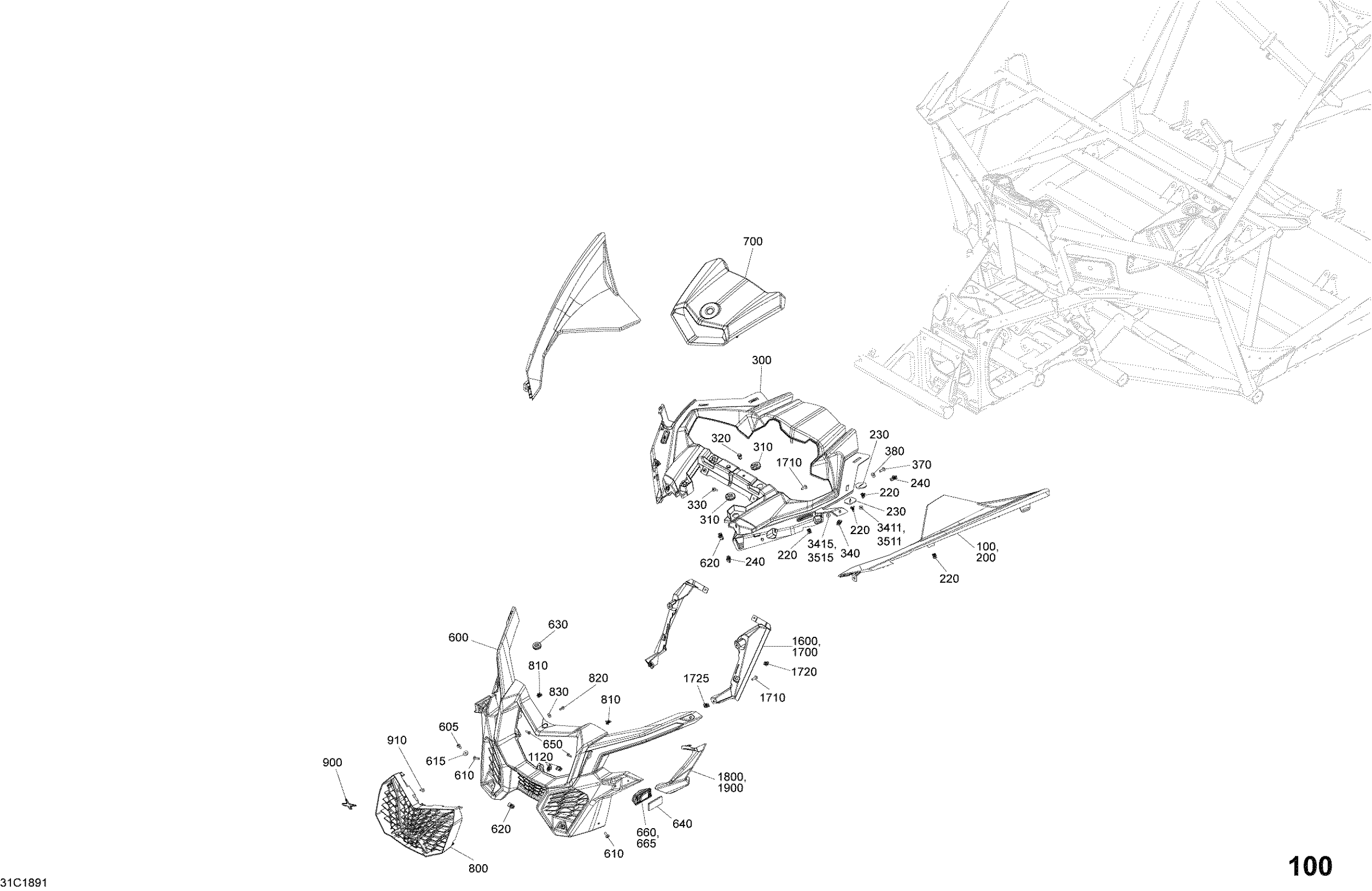

Can-Am Maverick X3 Turbo R - XRC, 2018 Body Parts - Carbon Black - Package XRC - Front Section Diagram

Description

Price

100

Carbon Black, LH Front Fender

705014289

$128.43

200

Carbon Black, RH Front Fender

705014306

$128.43

220

Edge Clip

517302785

$0.70

230

Support Plate

705003841

$0.91

240

Panel Nut M6 X 1.0

250100198

$1.73

300

Central Hood

705014684

$72.19

310

Grommet

705010718

$2.69

320

Tuflok Plastic Rivet

293150230

$1.21

330

Torx Screw M6 X 20

250000722

$1.34

340

Panel Nut M6 X 1.0

250100198

$1.73

370

Torx Screw M6 X 20

250000722

$1.34

380

Stainless Steel Flat Washer

234062670

$1.74

600

Front Facia

705009508

$69.20

605

Torx Screw M6 X 20

250000722

$1.34

610

Torx Screw M6 X 20

250000722

$1.34

615

Stainless Steel Flat Washer

234062670

$1.74

620

Panel Nut M6 X 1.0

250100198

$1.73

630

Grommet

517303756

$3.15

640

Amber, Reflector

520000271

$19.20

650

Torx Screw K50 X 16

250000720

$1.39

660

LH Reflector Support

705011806

$4.06

665

RH Reflector Support

705011814

$4.06

700

Gulfstream Blue, Front Hood

705012476

$101.51

800

Radiator Front Grille

703501021

$50.74

810

Edge Clip

517302785

$0.70

820

Torx Screw K50 X 16

250000720

$1.39

830

Washer M5

250200025

$0.61

900

Logo | Except Model X3

705010885

$11.55

910

Screw M4 X 16

250000725

$2.87

1120

Panel Nut M6 X 1.0

250100198

$1.73

1600

LH Front Radiator Deflector

705017559

$17.66

1700

RH Front Radiator Deflector

705017560

$17.66

1710

Torx Screw M6 X 20

250000722

$1.34

1720

Edge Clip

517302785

$0.70

1725

Panel Nut M6 X 1.0

250100198

$1.73

1800

LH Light Cover

705010628

$30.74

1900

RH Headlight Trim

705017566

$30.74

3411

Torx Screw M6 X 20

250000712

$1.74

3415

Hex. Flange Elastic Nut M6

233261494

$1.26

3511

Torx Screw M6 X 20

250000712

$1.74

3515

Hex. Flange Elastic Nut M6

233261494

$1.26
