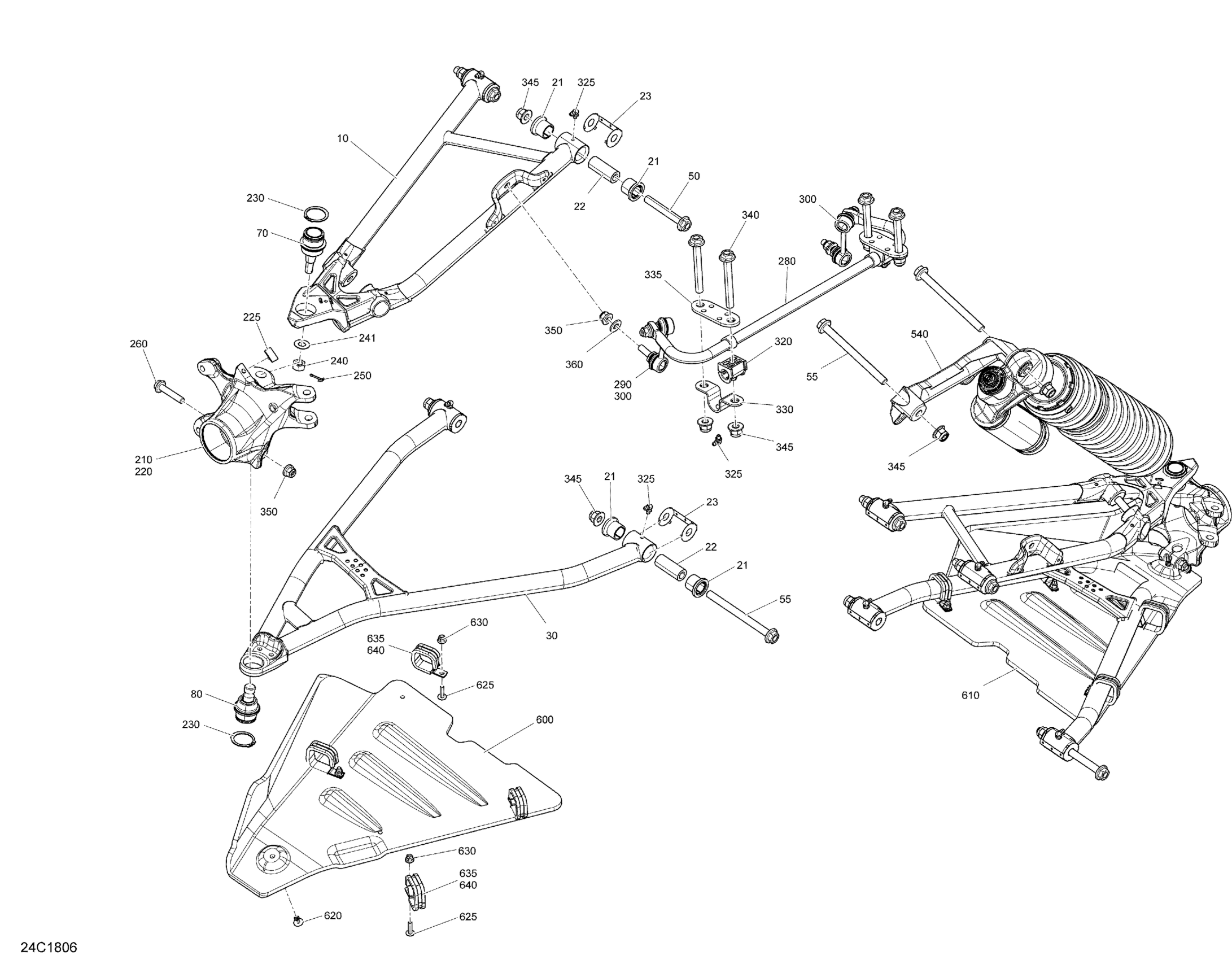

Can-Am Maverick X3 Turbo R - XRC, 2018 Front Suspension XRC Diagram

#

Description
Price

10

Gulfstream Blue, LH Upper Suspension Arm

703501055

$222.49

10

Gulfstream Blue, RH Upper Suspension Arm

703501058

$222.49

21

Suspension Arm Bushing

706204409

$9.10

22

Interior Bushing

706202257

$9.79

23

Wear Plate

706202300

$2.29

30

Black, LH Lower Arm | Model X3 Xrs

706202706

$201.49

30

Deep Black, RH Lower Suspension Arm Ass'y With Balljoint This part replaces 706204734.

715010613

$289.99

50

Flange Screw M12 X 85

250000859

$4.76

55

Flange Screw M12 X 145

250000861

$6.67

70

Ball Joint

706203084

$35.99

80

Ball Joint

706202045

$35.99

210

LH Front Knuckle

706204785

$201.49

220

RH Front Knuckle

706204786

$148.49

225

Wear Plate

706202502

$2.29

230

Circlip

293370035

$2.64

240

Nut M12

250100099

$2.09

241

Hardened Washer

706200281

$2.85

250

Cotter Pin

211400017

$0.33

260

Hex. Flange Screw M10 X 50

207605044

$5.29

280

Stabilizer Bar Ass'y

703501043

$121.99

290

Link Stabilizer Bar LH

706202764

$57.99

300

Link Stabilizer Bar RH

706202765

$57.99

320

Bushing_Stabilizer Bar

706204565

$3.61

325

Grease Fitting 90°

293550056

$1.15

330

Clamp

706202460

$6.89

335

Support Plate

706202551

$5.09

340

Hex. Flange Screw M12 X 95

250000876

$6.77

345

Elastic Flange Nut M12

233221466

$2.89

350

Hex. Flange Elastic Nut M10

233201436

$2.11

360

Conical Spring Washer 10 mm

234201474

$1.69

540

Link

706203126

$49.99

600

72'' LH A-Arm Protector | Built in 2017

706203383

$132.49

600

LH A-Arm Protector

703501027

$179.99

610

72'' RH A-Amr Protector | Built in 2017

706203384

$132.49

610

RH A-Arm Protector

703501028

$158.99

620

Carriage Bolt M6 X 25

207762544

$1.69

620

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

625

Torx Screw M6 X 25

250000758

$2.11

630

Hex. Flange Elastic Nut M6

233261494

$1.58

635

Holding Clamp

293750085

$7.59

640

Holding Clamp

293750086

$7.59
