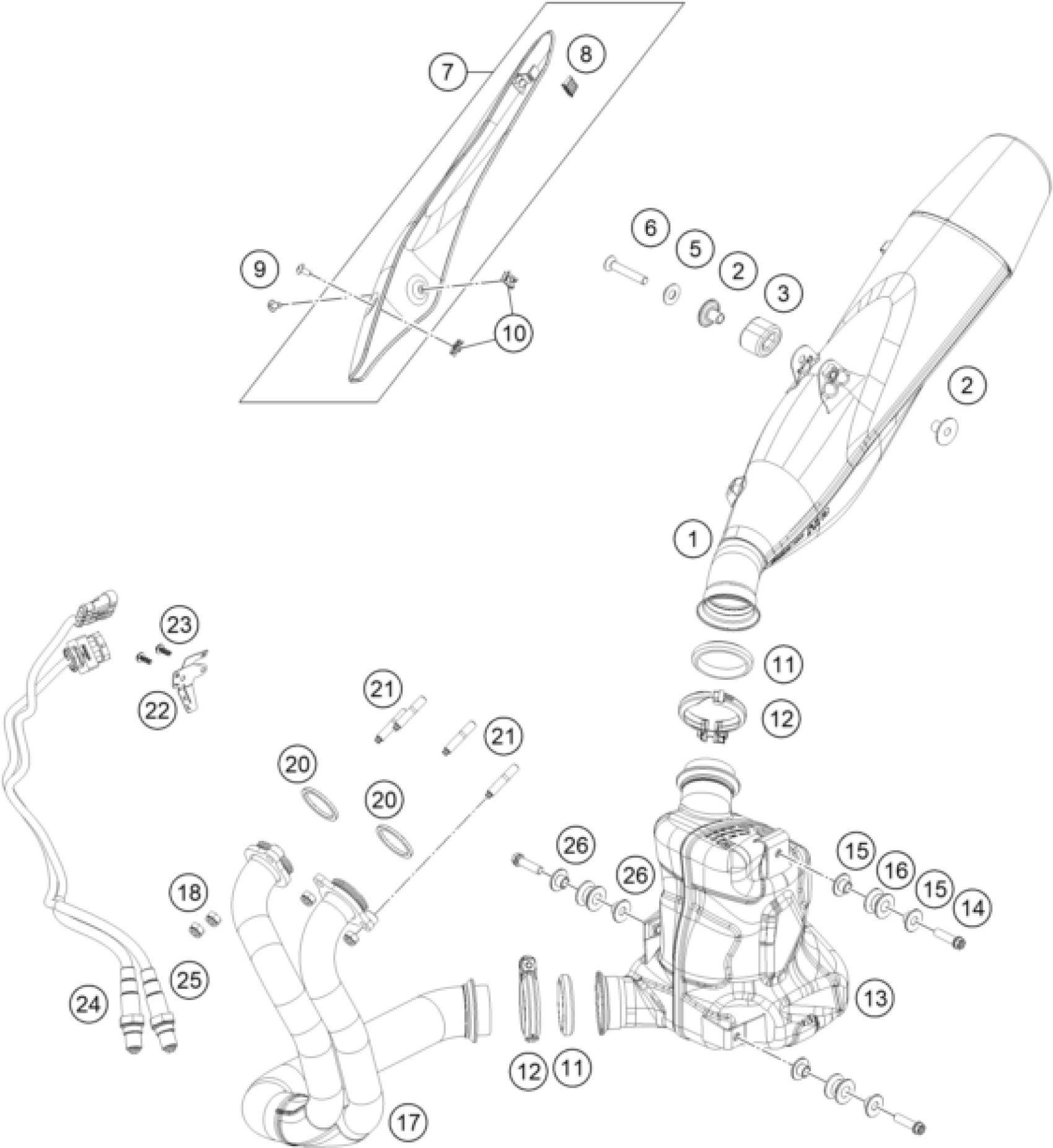

KTM 790 DUKE, orange 2021 EXHAUST SYSTEM Diagram

#

Description

Price

1

Silencer

64105183000

Unavailable

2

Bushing 8.5X11X29

61305069000

$19.07

3

DAMPING RUBBER

61305068000

$15.51

5

Shape disc Alu

60405069000

$3.08

6

COUN.-SUNK SCREW M8X50 ISA10.9

0019080506

$2.05

7

head protection with mounting

64105011000

$126.78

8

DAMPING ELEMENT SILICON

27005011011

$8.50

9

SCREW TORX M5X10

78105081010

$2.05

10

clip nut M5

69008021080

$3.08

11

MANIFOLD GASKET

69005005005

$16.82

12

CLAMP CPL.

69005050000

$24.58

13

Pre-muffler

64105050000

$1,529.28

14

HH COLLAR SCREW M8X35 TX40

0025080356S

$3.08

15

collar bushing 8.5x12x23.5x10

58405050065

$5.23

16

damp. component silicone grey

54305068100

$8.31

17

Header

64105007100

$600.36

18

self-locking nut M8 Cu

51010086100

$3.08

20

Exhaust gasket

64105005000

$5.23

21

stud screw 835 M8x25 - 10.9

63505015000

$2.05

22

Bracket lambda sensor signal

64142040020

$13.64

23

EJOT PT screw K50x14

0081050141

$1.49

24

O2 Sensor LSF 4

63541090000

$138.46

25

O2 Sensor LSF 4

63541190000

$138.46

26

Collar bushing 8.5x12x23.5x11.

0800000901201

Unavailable
