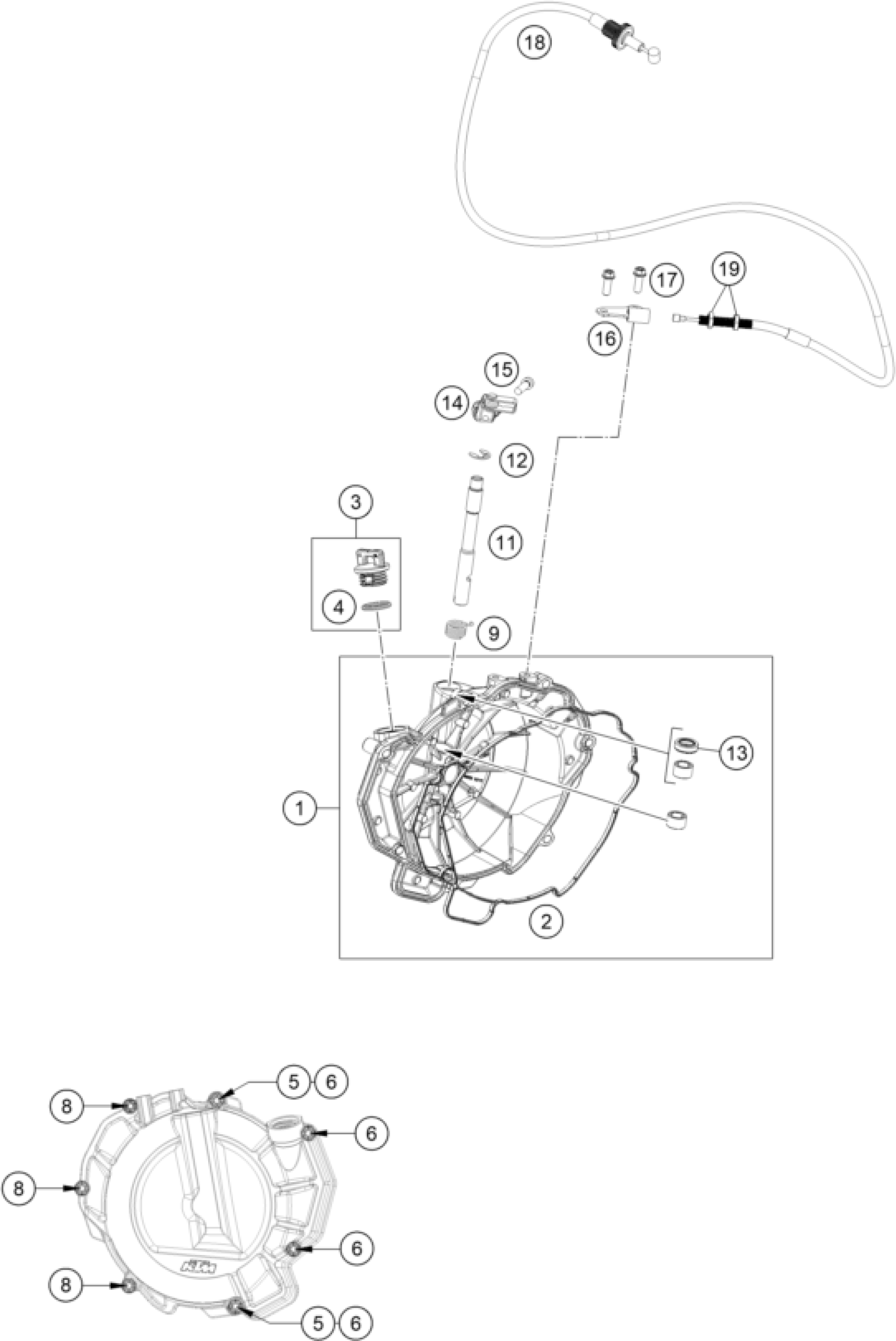

KTM 790 DUKE, orange 2021 CLUTCH COVER Diagram

Clutch cover cpl.

6353000134441

$135.19

Form ring, clutch cover

63530025300

$12.80

oil plug cpl. M24x3

58030020100

$5.23

O-RING 19,00X3,00 NBR

0770191015

$2.05

Dowel, 6x8x11.5

59030023100

$1.49

HH collar screw M6x35 TX30

0025060356

$3.08

HH collar screw M6x25 TX30

0025060256

$3.08

clutch release lever spring

63532048003

$1.49

clutch release shaft

63532049000

$52.26

retaining washer DIN 6799 - 9

0799090003

$1.49

Shaft seal ring 32x45x6.5

0760122060

$4.11

Release lever assembly

63532048233

$41.13

Cyl. screw ISO 14580 M6x20 SS

014580060206S

$1.49

Cable retaining bracket

63532052100

$11.12

HH collar screw M6x16 TX30 SL

0025060166S

$2.05

Clutch cable

64102090000

$70.40

HEXAGON NUT DIN 934 M8

0934080006

$1.73
