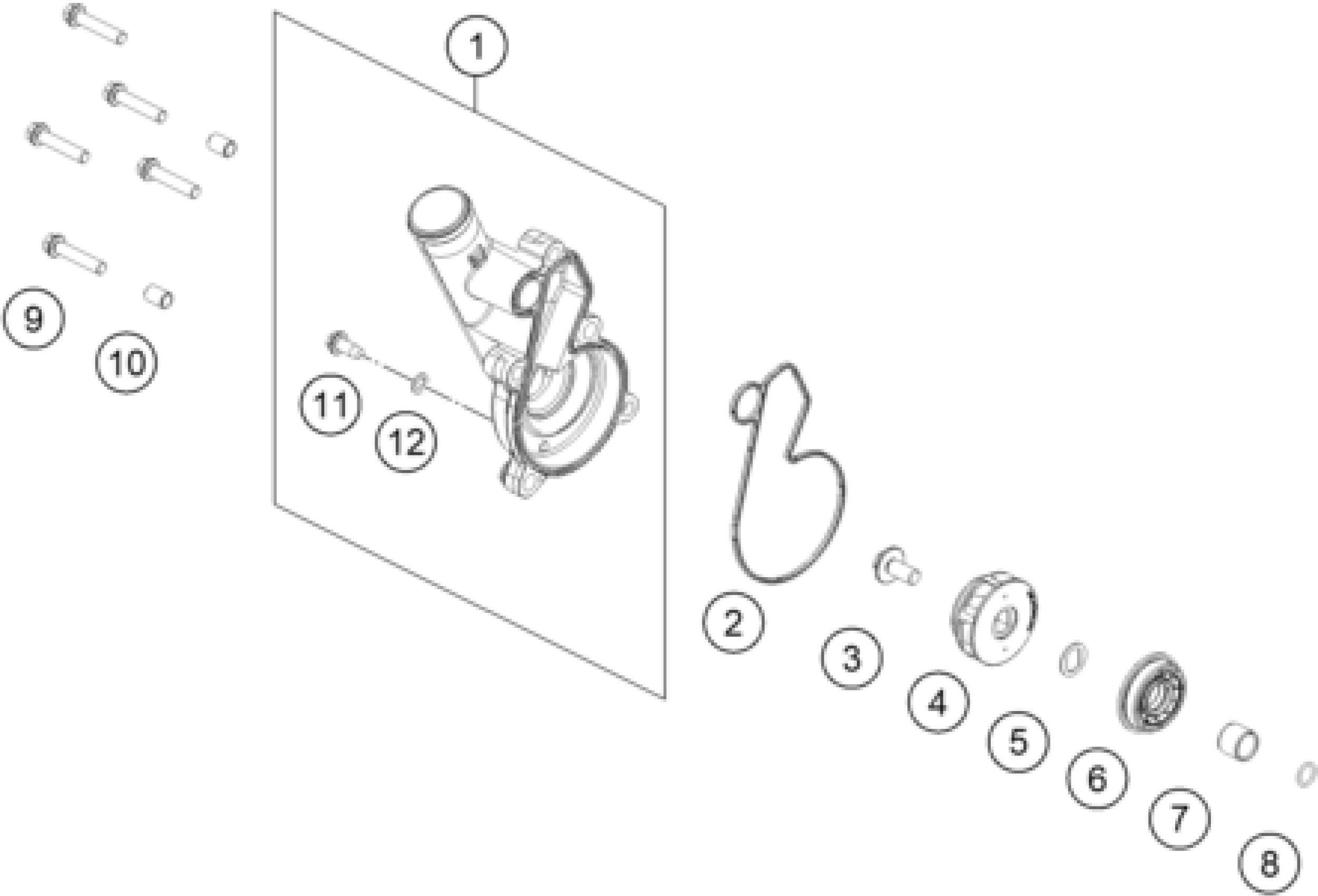

KTM 790 DUKE L, grey 2024 WATER PUMP Diagram

#

Description

Price

1

Water pump cover

C9003505200041

Unavailable

2

water pump cover gasket

C90035053100

Unavailable

3

HH Collar screw M6x13 TX30 SL

C0000240601300S

Unavailable

4

Water pump impeller compl.

C90035055000

Unavailable

5

double-d washer 16x1 SST

C60035055150

Unavailable

6

radial shaft seal 34.5x15x9 Du

0760153459

Unavailable

7

Wear bushing 12/15/12,5

C77236072120

Unavailable

8

O-RING 9x1,5 V80 SH

C07700900151

Unavailable

9

HH collar screw M6x30 ISA30

C0000250603000S

Unavailable

10

Dowel

C90030024000

Unavailable

11

HH collar screw M6x12 TX30

C0000250601200

Unavailable

12

Seal ring 6/10/1

C0603061002

Unavailable
