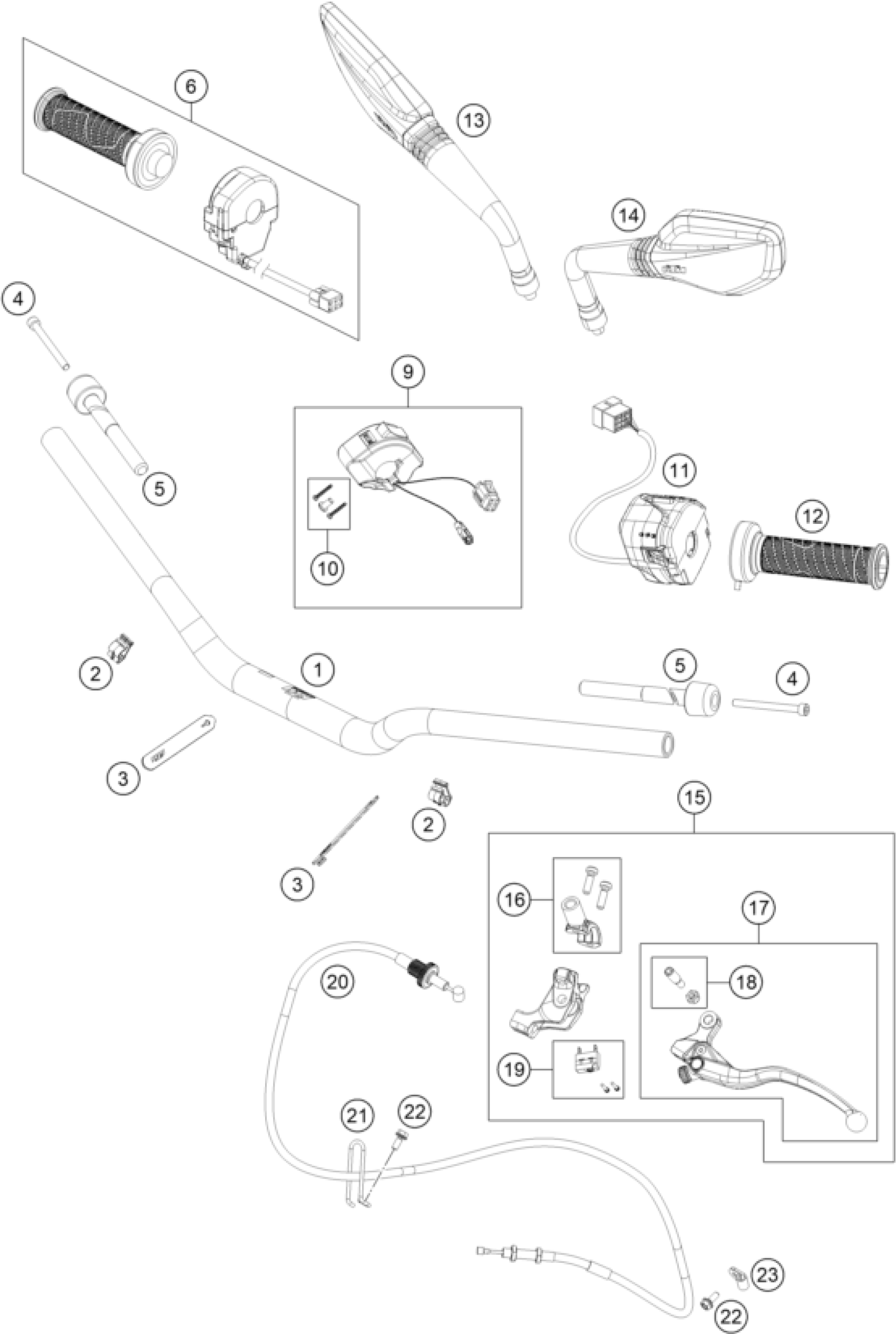

KTM 790 DUKE L, grey 2023 HANDLEBAR, CONTROLS Diagram

#

Description

Price

1

Handlebar L = 743 mm diam. = 2

A65402101000C1

$165.95

2

Line guide

C90713026000

$2.52

3

RUBBER CABLE TIE 45MM 03

C90711093045

$1.49

4

SHCS DIN 912 M6x65

0912060653

$2.05

5

Handlebar weight

C90702004000

$16.82

6

Ride-by-Wire sys. cmpl. w/o gr

61711012044

$232.90

9

emergency OFF switch

76011074000

$60.30

10

Screw set start-stop switch

61411174010

$5.23

11

Combination switch

76011170200

$118.08

12

Fixed grip without heating

61702039000

$30.94

13

Rear view mirror, right

C90712041000

$48.61

14

Rear view mirror, left

C90712040000

$48.61

15

Clutch lever cmpl. blk.

A65402031000C1

$138.09

16

Clamp cpl.

6410204400030

$29.54

17

Clutch lever cpl.

6410204000030

$73.58

18

Kit lever pin

64102038000

$14.39

19

Lever switch

64111049000

$46.93

20

Clutch cable

C90102090000

$90.59

21

Clutch cable wire guide

C90702097000

$2.05

22

HH collar screw M5x12 TX30

C0000250501200

$1.49

23

PVC clamp 6.4 MM Heyman

64132070000

$1.49
