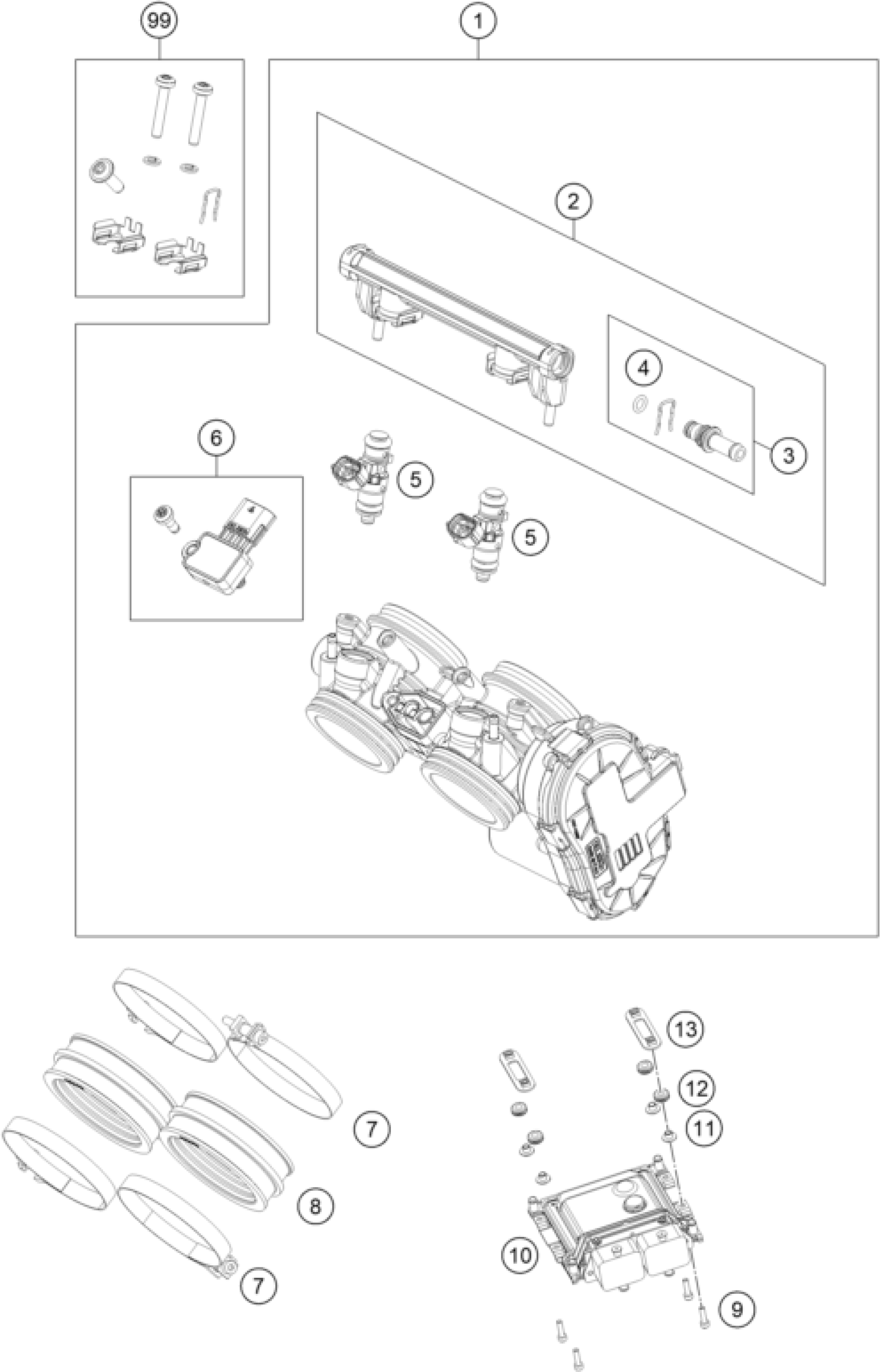

KTM 790 DUKE L, grey 2022 THROTTLE BODY Diagram

#

Description

Price

1

Throttle body

A65441001000

$1,035.13

2

Fuel pipe

63541013050

$151.46

3

Fuel connector cmpl.

63541013044

$37.77

4

Square and dust seal

63541013010

$3.08

5

FUEL INJECTOR

90841123000

$151.84

6

MAP sensor, cmpl.

63641085044

$317.42

7

hose clamp Gemi 66

61236048000

$9.53

8

Intake sleeve

C90036144000

$28.23

9

AH screw DIN0912 M4x16 self-lo

0912040163S

$1.49

10

EFI control unit

63541031100

$1,173.04

11

Collar bushing 4.5x6x12x6.3

C90741030010

$1.49

12

Rubber band control unit

C90741030000

$1.49

13

Mounting Bracket ECU cpl.

C90741029000

$3.08

99

Smallpart kit

63641099000

$43.00
