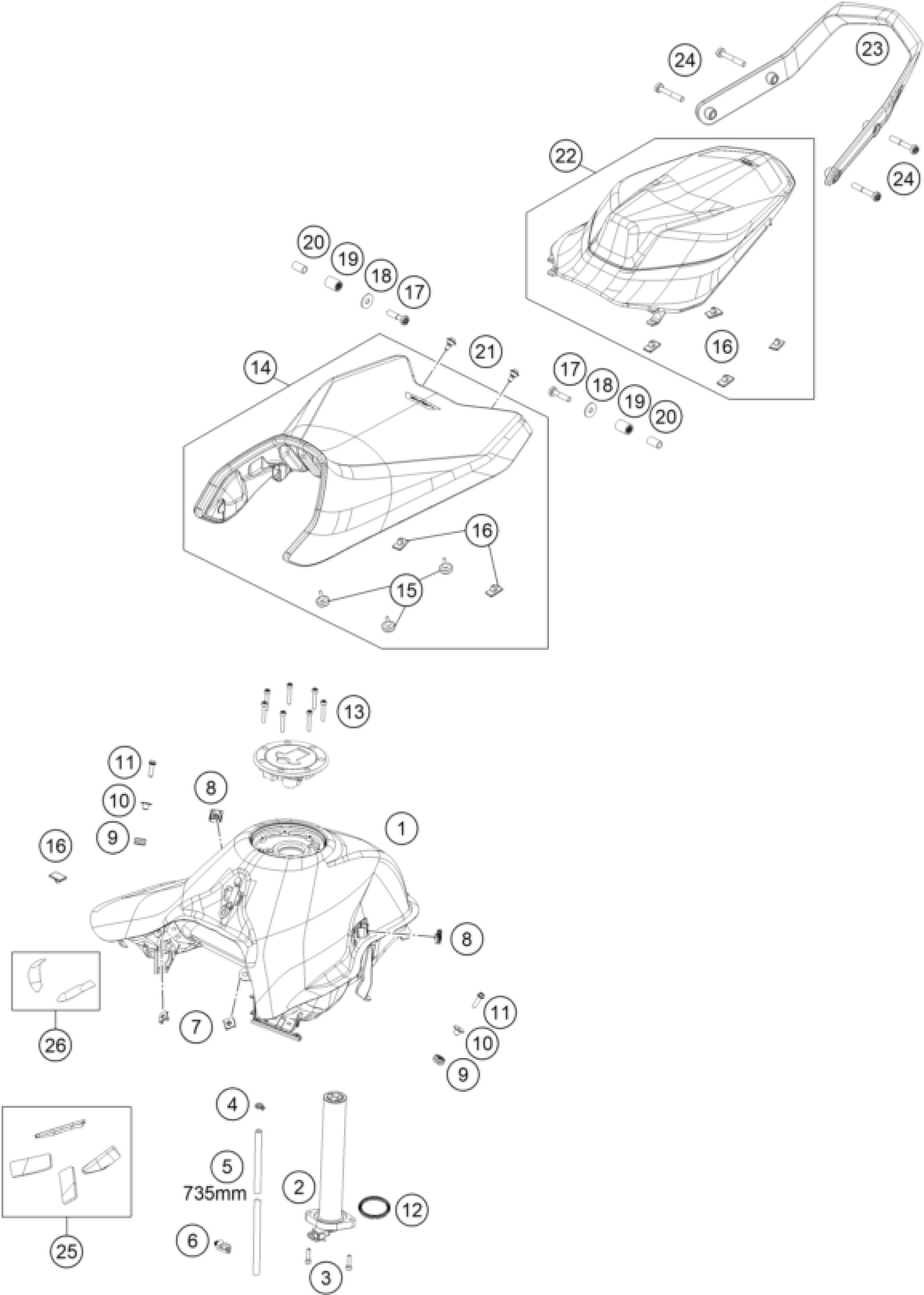

KTM 790 DUKE L, grey 2022 TANK, SEAT Diagram

#

Description

Price

1

Fuel tank steel

C90707013000CB

Unavailable

2

Fuel lever sensor

64107080200

Unavailable

3

AH SCREW DIN0912-M 5X20

0912050203

Unavailable

4

CLAMP YDNAC 10096F (9,6MM)

59007017000

Unavailable

5

Hose 6x10 FKM/ECO L 735

C90715019735

Unavailable

6

CABLE TIE W. SOCKET D=6,5

C90711092000

Unavailable

7

RANGE CHANGE METAL NUT M5

54603048200

Unavailable

8

RANGE CHANGE METAL NUT M6 INOX

54603048300

Unavailable

9

Damper ABS modulator

C90742041000

Unavailable

10

Collar bushing 6,5x9x18x8.5

61342041100

Unavailable

11

HH collar screw M6x20 TX30

C0000250602000

Unavailable

12

Gasket fuel level sensor

C90707080090

Unavailable

13

Cap hd. screw ISO14579, M5x16-

014579050166

Unavailable

14

rider seat cpl.

C90707040000

Unavailable

15

Spaxer rubber airbox

C90706001021

Unavailable

16

Isolation pad

C90707040041

Unavailable

17

Collar screw M8x40 ISA40 SS

C0000250804000S

Unavailable

18

WASHER DIN9021-A 8,4

0021080003

Unavailable

19

Rubber seat cowl pad

C90707046000

Unavailable

20

Bushing 8.4x12x21.5

C90707049000

Unavailable

21

Special screw M6x15x5,5-8.8 MK

0900000601500S

Unavailable

22

Passenger seat cmpl.

C90707047033

Unavailable

23

Grip handle passenger

C90712008000

Unavailable

24

AH collar screw M8x50 ISA45

0035080506S

Unavailable

25

Tank Protection Set Metamoll

C90707012000

Unavailable

26

protectionfoil tank set

C90707013040

Unavailable
