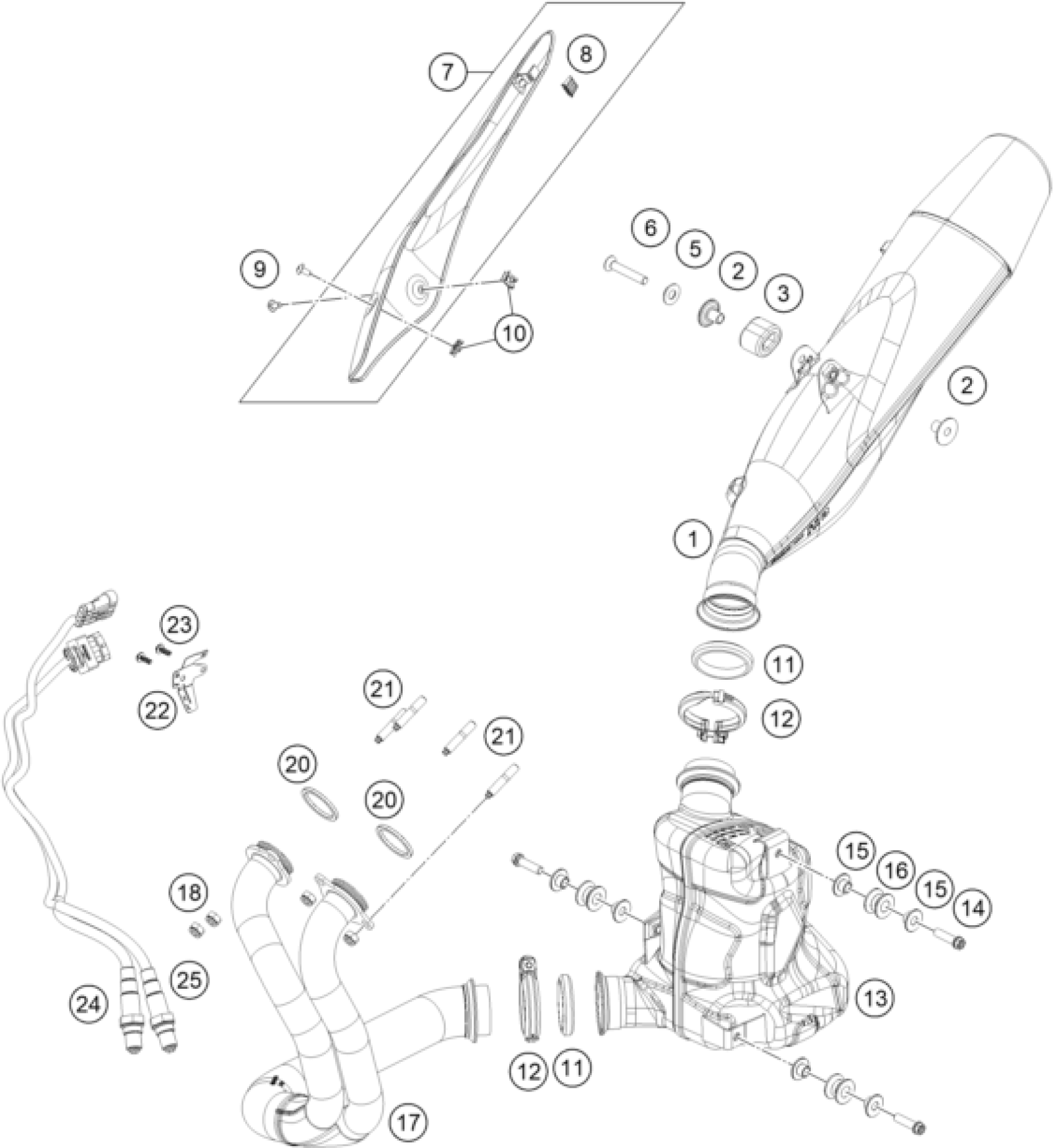

KTM 790 DUKE L, grey 2022 EXHAUST SYSTEM Diagram

#

Description

Price

1

Silencer

C90705083000

Unavailable

2

BUSHING 8,5X11X29

C90705169000

Unavailable

3

DAMPING RUBBER

C90705068000

Unavailable

5

conical seat Alu

C90705069000

Unavailable

6

COUN.-SUNK SCREW M8X50 ISA10.9

C0000190805000

Unavailable

7

Head Protection with mounting

C90705011000

Unavailable

8

Damping element silicon

C90705011011

Unavailable

9

SCREW TORX M5X10

78105081010

Unavailable

10

RANGE CHANGE METAL NUT M5 INOX

54603048600

Unavailable

11

Manifold gasket

C90705005005

Unavailable

12

Exhaust clamp tube 50 mm

63605058000

Unavailable

13

Premuffler preassembled EU/US

C90705050100

Unavailable

14

HH COLLAR SCREW M8X35 TX40

C0000250803500S

Unavailable

15

Collar bushing 8.5x12x23.5x10

C90705050065

Unavailable

16

damp. component silicone grey

C90705067000

Unavailable

17

Header pipe

C90705007000

Unavailable

18

self-locking nut M8 Cu

51010086100

Unavailable

20

Exhaust gasket

C90705005000

Unavailable

21

stud screw 835 M8x25 - 10.9

63505015000

Unavailable

22

Bracket oxygen sensor socket c

C90742040020

Unavailable

23

EJOT PT screw K50x14

0081050141

Unavailable

24

O2 Sensor LSF 4

63541090000

Unavailable

25

O2 Sensor LSF 4

63541190000

Unavailable
