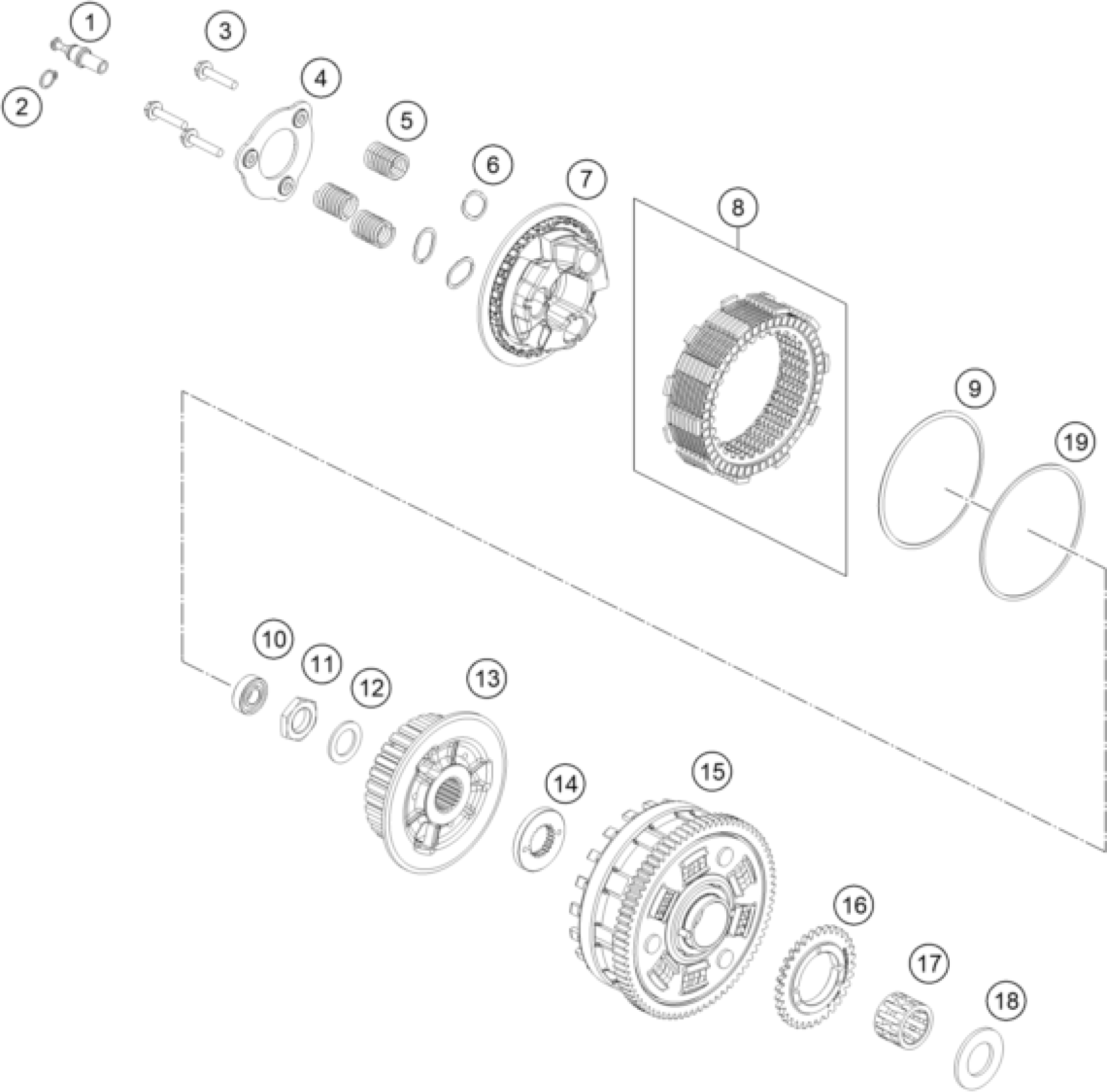

KTM 790 DUKE L, grey 2022 CLUTCH Diagram

#

Description

Price

1

tension bolt

C63532048104

Unavailable

2

retaining ring DIN 471 12x1

C0471120010

Unavailable

3

Collar screw M6x30

63532044000

Unavailable

4

Arrestor Pressure Cap

63532006000

Unavailable

5

Clutch spring

63532005000

Unavailable

6

Clutch spring cover

63532041000

Unavailable

7

Pressure Plate

63532003000

Unavailable

8

Disc Pack

63532011010

Unavailable

9

Belleville Spring

63532034000

Unavailable

10

BALL BEARING 6001.2URS.C3

0625060017

Unavailable

11

hex nut M20x1,. H=6mm

C90036073150

Unavailable

12

Wedge lock washer HLS 20

0252012103100

Unavailable

13

center clutch

63532002000

Unavailable

14

Spline Washer

63532021000

Unavailable

15

Clutch Cage cpl.

63532001044

Unavailable

16

Oil pump gear 32th

C90038001232

Unavailable

17

Needle bearing PK26x35x24.8

0405263525

Unavailable

18

Washer, 26/47/2.8

C90032020000

Unavailable

19

Seat Judder Spring

63532035000

Unavailable
